Ifm

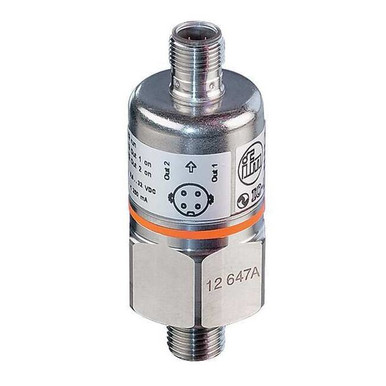

Ifm . PX9119

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIfm
DimensionUnitinch
GraingerSku35T587
UPCNone
UnitOfMeasureEA
Weight0.42
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginRO
height1.97
jsonUrlData924526ffbdad25e5923b
length5.12
moq, multiple, tierMinQty11
MPNPX9119
qtyInStock18
qtyInStockOverride-2
SKUG6011564
tierPrice1202.19
urlhttps://www.zoro.com/ifm-transmitter-145-0psi-16-32vdc-px9119/i/G6011564/
width3.54
Transmitter TypeVacuum Transmitter
ItemPressure Transmitter
Range Values - Transmitter14.50 to 0
Range Units - Transmitter, Pressure Unitspsi
Accuracy - Transmitter+/-0.75% Full Scale
Electrical Connections - Transmitter4 Pin M12 Connector
Power Required - Transmitters16 to 32V DC
Process Connection Size - Transmitter, Process Connection Size1/4 in
Process Connection Type - TransmitterMNPT
Process Connection1/4 in Male NPT
Output - Transmitter0 to 10V DC
Accuracy+/-0.75% of Full Range
Output0 to 10VDC
Loop Resistance720 ohms @ 24V DC
Housing, Fitting Material, Housing MaterialStainless Steel
Range-14.5 psi to 0 psi
Wiring Entry - Transmitter1/2 in FNPT
Operating Temp - Transmitter, Operating Temp-25 Degrees to 90 Degrees C
Power Required16 to 32VDC
Thermal Error0.2%
Maximum Pressure0 psi
Explosion/Fire Proof, Intrinsically SafeNo
Response Time3 msec
Overpressure145 psi
Type of PressureRelative, Vacuum
Electrical Connection, Electrical Connections4-Pin M12 Connector
(hidden) connection builder4-Pin M12 Connector x 1/2 in FNPT Conduit Connection
Maximum Operating Temperature90 Degrees C
Wiring Entry1/2 in FNPT Conduit Connection
Minimum Operating Temperature-25 Degrees C
Burst Pressure450 psi
Minimum Pressure-14.5 psi
Maximum Loop Resistance720 Ohm Max
Safety RatingClass III
Number of Wires2
Overall Width30 in
Process Connection GenderMale
Overall Height79.5 in
Process Connection TypeNPT
IP RatingIP65
SeriesPX
Operating Temperature-25 Degrees C to 90 Degrees C
Country of Origin (subject to change)Romania

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG601156411811 @ $202.19
Grainger35T58711
sustainablesupply.comC28908601-211 @ $251.90
simsupply.comZO-G60115641911 @ $274.64
