Ifm

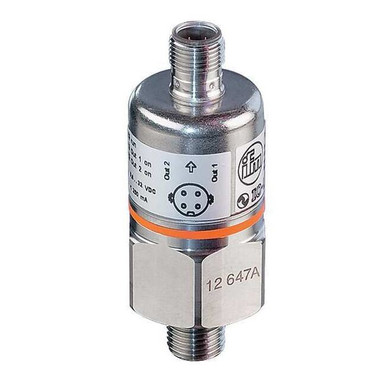

Ifm . PX3227

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIfm
DimensionUnitinch
GraingerSku35T577
UPCNone
UnitOfMeasureEA
Weight0.45
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginRO
height1.7
jsonUrlData924526ffbdad25e5923b
length4.9
moq, multiple, tierMinQty11
MPNPX3227
qtyInStock19
qtyInStockOverride-2
SKUG6022283
tierPrice1373.29
urlhttps://www.zoro.com/ifm-transmitter-0-15psi-96-32vdc-px3227/i/G6022283/
width3.3
Transmitter Type, ItemPressure Transmitter
Range Values - Transmitter0 to 15
Range Units - Transmitter, Pressure Unitspsi
Accuracy - Transmitter+/-0.75% Full Scale
Electrical Connections - Transmitter4 Pin M12 Connector
Power Required - Transmitters9.6 to 32V DC
Process Connection Size - Transmitter, Process Connection Size1/4 in
Process Connection Type - TransmitterMNPT
Housing, Fitting Material, Housing MaterialStainless Steel
Loop Resistance720 ohms @ 24V DC
Power Required9.6 to 32VDC
Wiring Entry - Transmitter1/2 in FNPT
Output4 to 20ma
Output - Transmitter4 to 20mA DC
Accuracy+/-0.75% of Full Range
Operating Temp, Operating Temp - Transmitter-25 Degrees to 90 Degrees C
Process Connection1/4 in Male NPT
Range0 to 15 psi
Thermal Error0.2%
Maximum Loop Resistance720 Ohm Max
Number of Wires2
SeriesPX
Electrical Connection, Electrical Connections4-Pin M12 Connector
IP RatingIP65
Process Connection TypeNPT
Type of PressureRelative
Maximum Pressure15 psi
Overall Height79.5 in
Operating Temperature-25 Degrees C to 90 Degrees C
Maximum Operating Temperature90 Degrees C
Process Connection GenderMale
Response Time3 msec
Burst Pressure450 psi
(hidden) connection builder4-Pin M12 Connector x 1/2 in FNPT Conduit Connection
Wiring Entry1/2 in FNPT Conduit Connection
Minimum Pressure0 psi
Explosion/Fire Proof, Intrinsically SafeNo
Safety RatingClass III
Overall Width30 in
Overpressure145 psi
Minimum Operating Temperature-25 Degrees C
Country of Origin (subject to change)Romania

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG602228311911 @ $373.29
Grainger35T57711
sustainablesupply.comC28908461-211 @ $251.90
simsupply.comCU-3335543537371211 @ $399.94
simsupply.comZO-G602228311011 @ $350.37
