Ifm

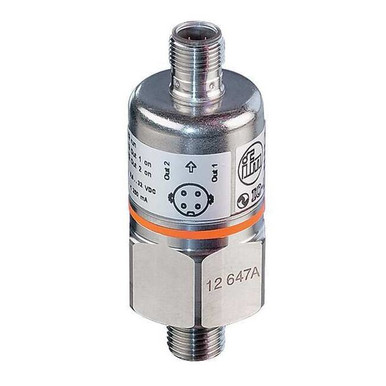

Ifm . PX3229

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIfm
DimensionUnitinch
GraingerSku35T575
UPCNone
UnitOfMeasureEA
Weight0.48
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginRO
height1.7
jsonUrlData924526ffbdad25e5923b
length4.9
moq, multiple, tierMinQty11
MPNPX3229
qtyInStock37
qtyInStockOverride-2
SKUG5935316
tierPrice1337.89
urlhttps://www.zoro.com/ifm-transmitter-145-0psi-96-32vdc-px3229/i/G5935316/
width3.4
Transmitter TypeVacuum Transmitter
ItemPressure Transmitter
Range Values - Transmitter14.50 to 0
Range Units - Transmitter, Pressure Unitspsi
Accuracy - Transmitter+/-0.75% Full Scale
Electrical Connections - Transmitter4 Pin M12 Connector
Power Required - Transmitters9.6 to 32V DC
Process Connection Size - Transmitter, Process Connection Size1/4 in
Process Connection Type - TransmitterMNPT
Output - Transmitter4 to 20mA DC
Operating Temp - Transmitter, Operating Temp-25 Degrees to 90 Degrees C
Loop Resistance720 ohms @ 24V DC
Process Connection1/4 in Male NPT
Range-14.5 psi to 0 psi
Power Required9.6 to 32VDC
Accuracy+/-0.75% of Full Range
Housing, Fitting Material, Housing MaterialStainless Steel
Wiring Entry - Transmitter1/2 in FNPT
Output4 to 20ma
Thermal Error0.3%
Overall Width30 in
SeriesPX
Operating Temperature-25 Degrees C to 90 Degrees C
Response Time3 msec
Overpressure145 psi
(hidden) connection builder4-Pin M12 Connector x 1/2 in FNPT Conduit Connection
Maximum Pressure0 psi
IP RatingIP65
Safety RatingClass III
Overall Height79.5 in
Process Connection TypeNPT
Intrinsically Safe, Explosion/Fire ProofNo
Number of Wires2
Electrical Connection, Electrical Connections4-Pin M12 Connector
Process Connection GenderMale
Burst Pressure450 psi
Maximum Loop Resistance720 Ohm Max
Wiring Entry1/2 in FNPT Conduit Connection
Minimum Operating Temperature-25 Degrees C
Type of PressureRelative, Vacuum
Maximum Operating Temperature90 Degrees C
Minimum Pressure-14.5 psi
Country of Origin (subject to change)Romania

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG593531613711 @ $337.89
Grainger35T5751-211 @ $349.50
sustainablesupply.comC28908361-211 @ $251.90
simsupply.comZO-G593531611911 @ $411.65
