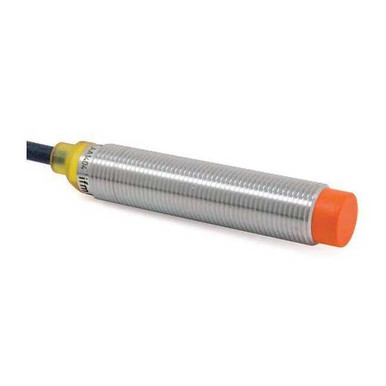

Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA

This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting. This listing is for each. Technical Specification Item Cylindrical Proximity Sensor Proximity Sensing Method Inductive Proximity Sensor Diameter 12.0 mm Proximity Sensor Power Requirement 10 to 30V DC Shielded / Unshielded Unshielded Proximity Sensor Operating Frequency 700 Hz Proximity Sensor Output Circuit Type 3 Wire NPN Max. Detecting Distance 7.0 mm Proximity Sensor Electrical Connection 2m Cable Basic Proximity Sensor Case Material Metal Output Mode NO IP Rating 65, 66, 67, 68, 69K Case Material Brass White Bronze Coated Length 60 mm Operating Temp. Range -40 Degrees to 185 Degrees F Max. Current Load 100mA Description/Special Features Overload And Short Protection Standards cUL Listed Includes (2) Lock Nuts

'Cylindrical Proximity Sensor, Inductive, 12.0mm, Proximity Sensor Power Requirement 10 to 30VDC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 7.0mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 60mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA'
