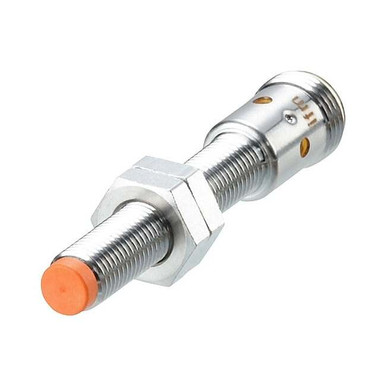

This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting. This listing is for each. Technical Specification Item Cylindrical Proximity Sensor Proximity Sensing Method Inductive Proximity Sensor Diameter 8.0 mm Proximity Sensor Power Requirement 10 to 36V DC Shielded / Unshielded Unshielded Proximity Sensor Operating Frequency 300 Hz Proximity Sensor Output Circuit Type 3 Wire PNP Max. Detecting Distance 4.0 mm Proximity Sensor Electrical Connection 4 Pin M12 Connector Basic Proximity Sensor Case Material Metal Output Mode NO IP Rating 67 Case Material Brass White Bronze Coated Length 62 mm Operating Temp. Range -13 Degrees to 158 Degrees F Max. Current Load 200mA Description/Special Features Overload And Short-Circuit Protection, Yellow LED Output Indication Standards CE Compliance Includes (2) Lock Nuts This item is restricted for international sale.
