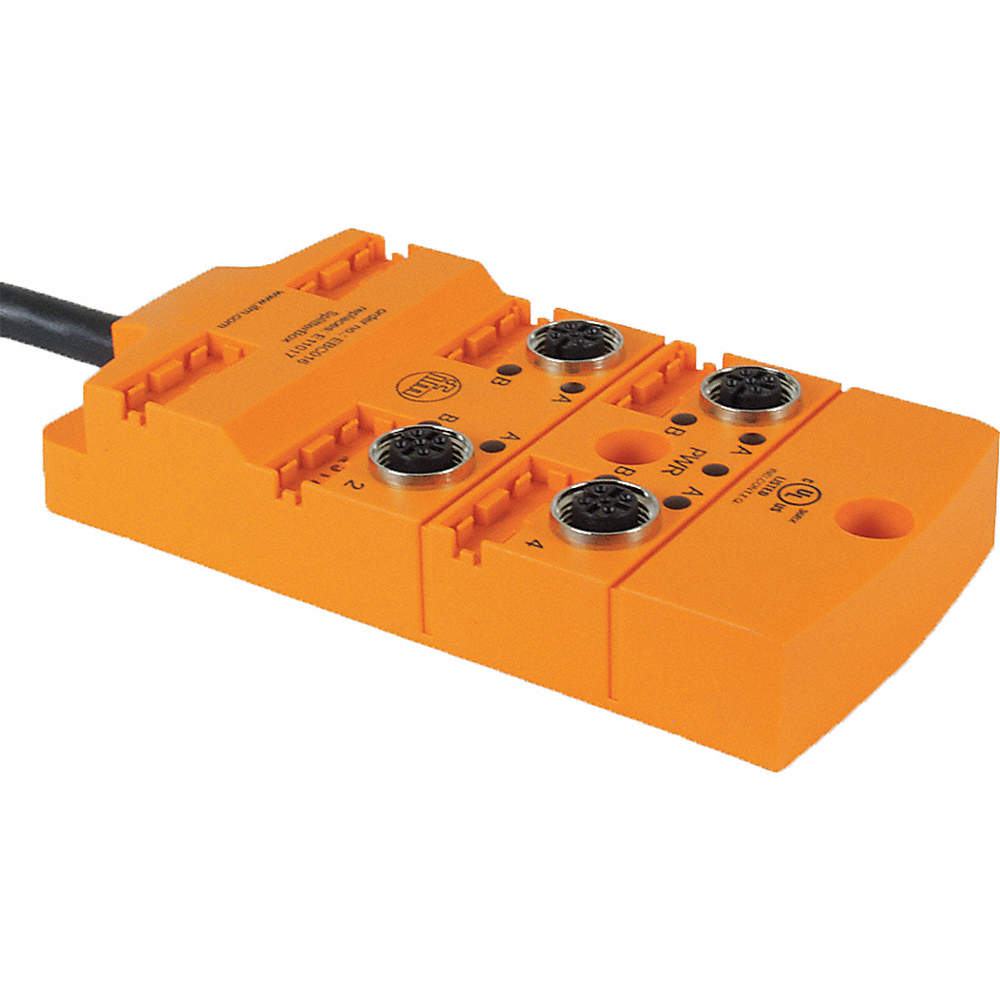

Sensor Wiring Block, 4 Pin, Receptacle

Ifm . EBC027

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerIfm
DimensionUnitinch
Extra Product NameSensor Wiring Block, 4 Pin, Receptacle
UnitOfMeasureEA
Weight2.48
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
extendedLead10
extendedQty-2
height1.57
jsonUrlData924526ffbdad25e5923b
length, width11.81
moq, multiple, tierMinQty11
MPNEBC027
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6803151
tierPrice1206.54
urlhttps://www.zoro.com/ifm-sensor-wiring-block-4-pin-receptacle-ebc027/i/G6803151/
ItemSensor Wiring Block
Cable Length10m
Jacket Color, Color, Cable Jacket ColorBlack
End 1 Number of Pins, Number of Ports4
Max Voltage10 to 30VDC
End 1 Thread, Thread SizeM12
Wire Size25 AWG/24 AWG
End 1 Connection Type, Connection TypeReceptacle
End 2 Connection TypeBare Wire
StandardsUL and cULus Listed
End 1 Gender and Plug EndFemale Straight
Jacket Material, Cable Jacket MaterialPUR
FeaturesGold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
IP RatingIP67, IP68
Number of Conductors3
End 1 KeywaySingle
Max Amps12A
Temp Range-25 Degrees to 80 Degrees C
For Use WithHarsh Industrial Environment
Cable TypeBlack PUR
Block Size (L x W x H)82 mm x 54 mm x 22 mm
GenderFemale
Overall Width22 mm
Includes(2) Protective Caps, (4) Labels
Voltage Rating10-30 V DC
(hidden) data builderEBC027 4
Operating Temperature Range-25 Degrees C to 80 Degrees C
Number of Cores7
Resistance PropertiesCoolant Resistant, Oil Resistant
Sensor TypePNP
Current Rating12 A
Electrical Connection - Slot5 Pole M12 Female
Overall Length54 mm
Minimum Operating Temperature-25 Degrees C
Current Rating per Port4 A
With LED DisplayYes
Number of Poles5
Maximum Operating Temperature80 Degrees C
Overall Height82 mm
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6803151111 @ $206.54
Grainger35T503111 @ $206.50
sustainablesupply.comC27846031-211 @ $196.51
kempstoncontrols.co.ukEBC027111 @ $132.61
