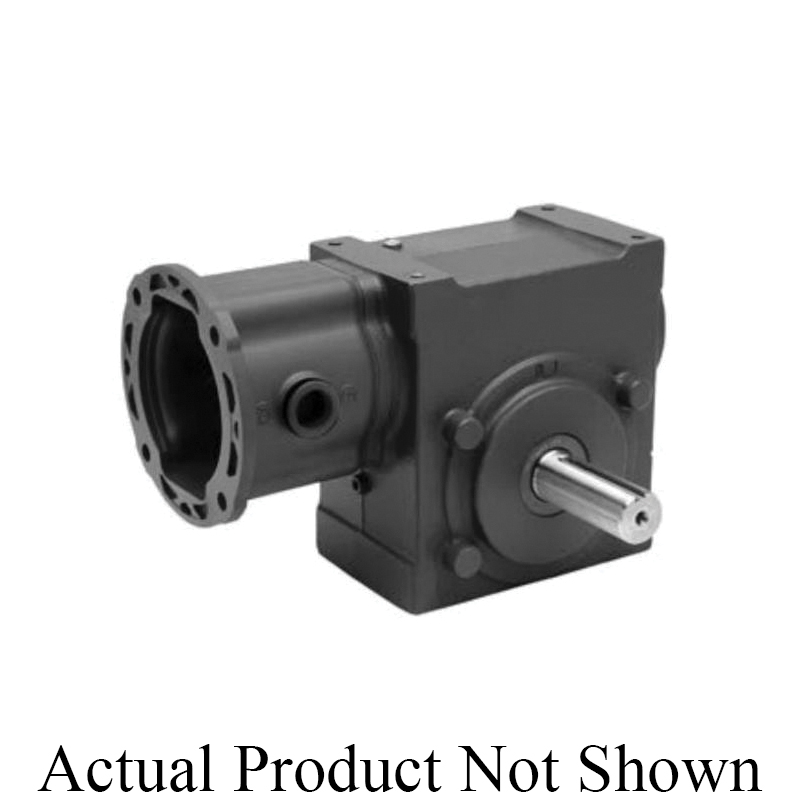

30AZ50LR56WP TIGEAR-2 E-Z KLEEN REDUCER-WHITE

Dodge . 30AZ50LR56WP

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDodge
CategoryL1Speed Reducers
CategoryL2Right Angle Speed Reducers
CategoryL3Right Angle Worm Gear Speed Reducers
CategoryL43-Piece Coupled Input Worm Gear Reducers
DimensionUnitmm
Extra Product Name, snippet30AZ50LR56WP TIGEAR-2 E-Z KLEEN REDUCER-WHITE
height3.25
height_AttribBase to output center height
length7.0
length_AttribMounting bolt pattern length
moq, multiple, tierMinQty11
MPN, Keyword, PartNumber, Part_number30AZ50LR56WP
qtyInStock0
SKU152134
tierPrice12607.96
width4.0
width_AttribMounting bolt pattern width
Input style3-Piece coupled
Finish, Paint typeWhite epoxy
Input HP1.75
Input flange56C
Center distance (in)3 in, Center distance (in):3.0000 in, 76.2 mm
Housing materialCast iron
Paint/coatingWhite
Output bore/shaft diameter1.375 in
Input56C flange
OutputDouble solid output shaft
Output horse power1.25
Ratio50 to 1
Rated torque output2257 in/lb, 2257.0 in/lb
Horsepower rating output1.2500 hp, 0.932 kW
Shaft length output3.2000 in, 81.28 mm
Gearbox component typeGearbox
Center to end of shaft distance6.7500 in, 171.45 mm
Thermal horsepower rating2.3400 hp, 1.745 kW
Nominal ratio50
Base to output center height3.2500 in, 82.55 mm
Mounting bolt pattern length7.0000 in, 177.8 mm
Motor compatibilityNEMA motor, 56C frame
Mounting bolt pattern width4.0000 in, 101.6 mm
Output styleLeft, right
Suitable for washdownYes
Case size30
Lubrication typePAG, standard temperature
Seal typeTwo-piece harsh duty
Shaft diameter output1.3750 in, 34.925 mm
Horsepower rating input1.7500 hp, 1.305 kW
Overhung load2300 lbf, 10230.91 N
Output shaft center to input motor mounting face distance9.2300 in, 234.442 mm
ASIN, AsinB00BC8OVT0
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
ClassificationId10304191
DisplayNameCategories
Height254 50
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleDODGE 30AZ50LR56WP TIGEAR-2 E-Z KLEEN REDUCER-WHITE
Item_type_keywordother-products
Item_weight, Weight5.93
Linkhttps://m.media-amazon.com/images/I/210+e3VEwvL._SL75_.jpg https://m.media-amazon.com/images/I/210+e3VEwvL.jpg
ProductGroup, WebsiteDisplayGroupNameSingle Detail Page Misc
ProductType, ProductTypeNameMISC_OTHER
Product_descriptionDODGE 30AZ50LR56WPTIGEAR-2 E-Z KLEEN REDUCER-WHITE
Supplier_declared_dg_hz_regulationunknown
URLhttps://m.media-amazon.com/images/I/210+e3VEwvL._SL75_.jpg
Unitpounds
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupsdp_misc_display_on_website
Width380 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply152134111 @ $2607.96
Walker Industrial30AZ50LR56WP13 to 5 Days11 @ $2301.12
Applied Industrial10204554011
Purvis30AZ50LR56WP1-211 @ $2823.36
factorysupplyoutlet.comPR38FZ1day="4"11 @ $3528.76
