R & D Flexible Shaft Coupling f/4

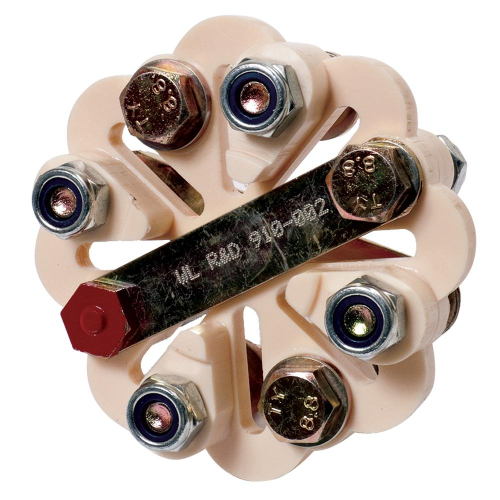

<B>Flexible Shaft Coupling for 4" Yanmar - 3HP/100RPM Capacity</B><br/><br/>The R&D Flexible Couplings are fabricated from a contoured flexible disc molded in tough yet resilient new type polyurethane. The contoured disc gives clearance for the bolt heads, and is able to flex freely to take up any temporary misalignment of the engine and shaft, due to flexing of the boat structure or the engine moving on its rubber vibration isolation mountings. Forward thrust is taken in compression on the disc between the two half couplings and reverse thrust is taken again in compression on the disc between the two fail straps. In the unlikely event of a disc failure the steel straps make the coupling fail safe and ensure drive is maintained in both forward and reverse.<br/><br/><B>To calculate power of coupling required:</B><br/><u>Horse Power of Engine</u> _{x Reduction Ratio x 100 = HP/100RPM}<br/>&#160; &#160; &#160; Engine Speed<br/><br/><B>Example:</B><br/>Ford 150HP at 2500RPM with Borg Warner Velvet Drive 72C 2:1 Reduction Ratio<br/>Engine Horse Power is 150HP, Max Rated RPM is 2500, Reduction Ratio is 2:1<br/>150/2500 X 2 x 100 = 12HP per 100RPM<br/>Coupling required is 910-009<br/><br/>The R & D Marine Flexible Coupling fits between the transmission output flange and shaft coupling. It is designed to protect a boat's drivetrain. The unit will reduce vibration, compensate for some misalignment, isolate the shaft and absorb shock loads.<br/><br/>The flexible disc is machined from a resilient and durable polyurethane. It allows the unit to flex, absorbing vibrations and temporary misalignment of the shaft and engine due to movement of the engine or flexing in the vessel's structure.<br/><br/>The polyurethane disc is backed up by two metal compression straps, one on either side of the flexible coupling. These metal straps hold the system in constant compression whether the drivetrain is in forward or reverse. This feature extends the life of the system dramatically.
