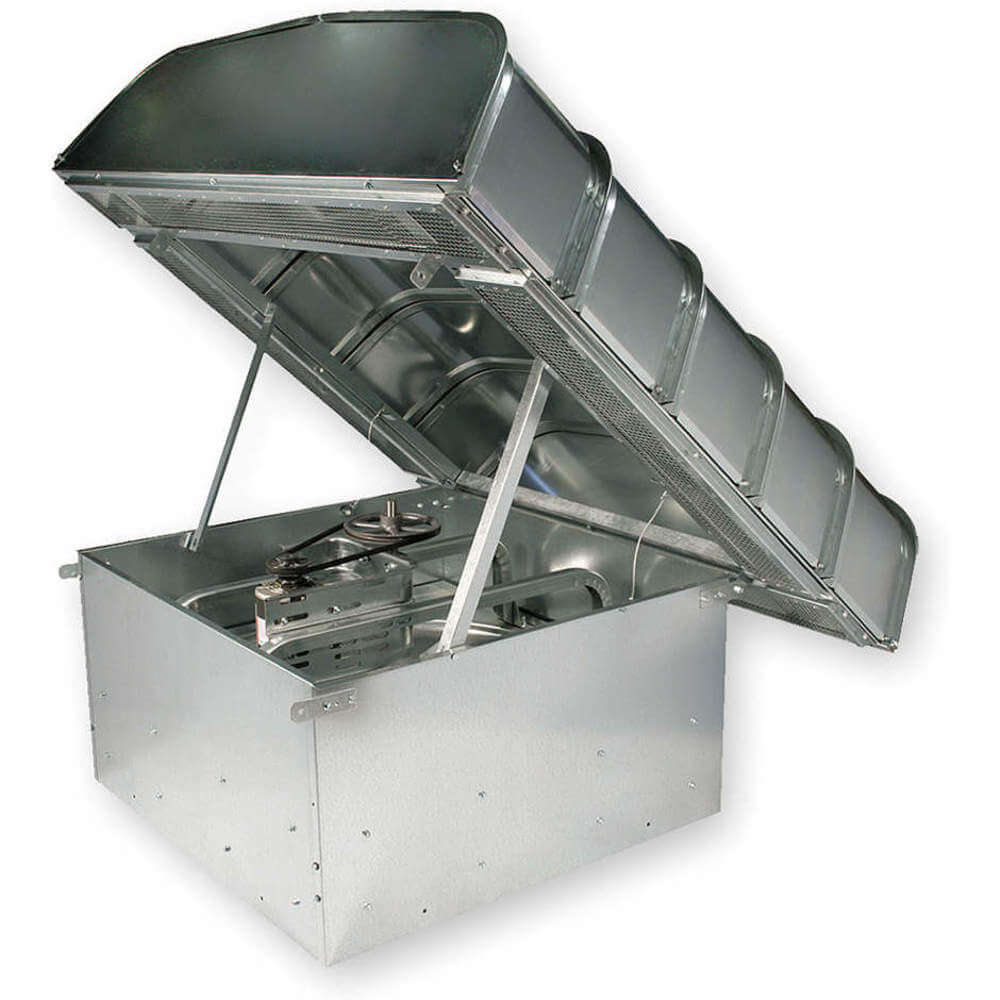

Axial Downblast Roof Exhaust Fan, Mounting Location Roof, Assembly Unassembled, Blade Diameter 24 in, Housing Material Steel, Exhaust Airflow @ 0.000 in SP 3,957 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 1/4 in wc, Motor Enclosure Totally Enclosed Nonventilated, Motor Horsepower 1/4 hp, Nameplate Voltage 208/230/460V AC, Number of Speeds 1, Phase 3, Maximum Inlet Air Temperature 104 Degrees F, Number of Blades 6

Dayton . 7CF48

Gallery

Attributes

Brand name, Manufacturer name, BrandDayton
ManufacturerDayton DAYTON
CategoryId, CategoryIdL35128
CategoryIdL130
CategoryIdL24579
CategoryL1Heating & Cooling
CategoryL2Roof Ventilators
CategoryL3Belt Drive Hooded Axial Downblast Exhaust Ventilators
DimensionUnitinch
GTIN, UPCNone
GraingerSku, MPN, Part Number, PartNumber7CF48
UnitOfMeasureEA
Voltage208-230/460
Weight291.9
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height, length, width0.1
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Case, PackageQuantity1
perItemShipping160.00
qtyInStock99999
qtyInStockOverrideDrop Ship
SKUG0470477
tierPrice12060.99
urlhttps://www.zoro.com/dayton-exhaust-ventilator-208-230460-volts-7cf48/i/G0470477/
Product Group, ProductGroupBISS
Blade Dia, Blade Diameter24 in
Base Size - Roof Ventilators28 1/2 in x 28 1/2 in
Overall Height - Roof Ventilators, Dimension D, Overall Height39 in
Overall Width - Roof Ventilators, Dimension B, Max Depth (In ), Dimension C, Hood Length, Hood Width, Overall Width, Overall Length48 in
Damper Size (In )25 in
Propeller Dia (In )24
Dimension F8 1/2 in
Dimension B (In ), Dimension C (In ), Width (In )48
Dimension D (In ), Height (In )39
Dimension E (In )23
Dimension F (In )8-1/2
Dimension E, Base Height23 in
Dimension A, Base Length, Base Width28 1/2 in
Bearing Size (In ), Shaft Dia (In ), Propeller Shaft Diameter3/4 in
Dimension A (In )28-1/2
Base Square Size - Roof Ventilators28-1/2" x 28-1/2"
Hood Height16 in
Base Dimension28 1/2 in Square
Base DiameterNot Applicable
Damper Size24 x 24 in
Housing Width, Housing Length28.5 in
Item - Roof VentilatorsExhaust Ventilator
Drive Type - Roof VentilatorsBelt Drive
Voltage - Roof Ventilators208-230V AC/460V AC
Motor HP - Roof Ventilators1/4 hp
Motor EnclosureTotally Enclosed Nonventilated
Bearing TypeSealed Pillow Block
Max Inlet Temp (Deg F), Max Ambient Temp (F), Maximum Ambient Temperature104 Degrees F
Motor HP1/4
CFM @ 0 000-In SP, Exhaust Airflow @ 0 000 in SP, Airflow @ 0 000 in SP3,957 cfm
Recommended 12 3/8"H Roof Curb Item No2ZV83
TypeAxial Belt Drive Downblast
Motor Type3-Phase
Assembled/Unassembled, AssemblyUnassembled
Motor RPM1,725 RPM
Hz60 Hz
Full Load Amps1.2-1.3/0.65
Recommended Gravity Backdraft Damper Item No2FTV7
Recommended 6 3/8"H Roof Curb Item No4C454
CFM @ 0 125-In SP, Exhaust Airflow @ 0 125 in SP3,536 cfm
Max BHP0.3 hp
Propeller Material, Blade Material, Housing MaterialSteel
Fan RPM923
Style - Roof VentilatorsHooded
ItemAxial Downblast Roof Exhaust Fan
Mounting Position, Mounting OrientationHorizontal
Frame MaterialGalvanized Steel
Phase3
Number of Blades6
CFM @ 0 250-In SP2,927 cfm
Airflow @ 0 000 in SP - Range2,000 to 4,999 cfm
ApplicationFactories, Large Facilities, Warehouses
Resistance PropertiesWeather Resistant
Base ShapeSquare
Motor EfficiencyStandard-Efficiency Motors
StandardsAMCA Sound and Air, UL/cUL 705
FeaturesStrong and Weathertight Hood
Brake Horsepower3/10 hp
Nominal Voltage208-230/460V AC
Maximum Fan Speed923 RPM
For Air TypeClean Air
Compatible Curb Manufacturer Part Number3AZH7
For High-Static Pressure Applications, Speed Controllable, High-Efficiency MotorNo
Hood TypeHinged Hood
MaterialSteel Blade with Steel Housing
Mount TypeRoof Curb
Blade FinishGalvanized
Maximum Static Pressure1/4 in wc
AsinB000LB85VY
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161
CatalogNumberListZO G0470477
FeaturePrice For: Each Exhaust/Supply CFM @ 0.375-In. SP: - Exhaust/Supply CFM @ 0.250-In. SP: - Assembled/Unassembled: Unassembled Exhaust/Supply CFM @ 0.125-In. SP: - Propeller Material: Steel Hz: 60 Recommended Motorized Backdraft Damper Item No.: - Bearing Type: Sealed Pillow Block Shaft Dia. (In.): 3/4 Mounting Position: Horizontal Recommended 12 3/8"H Roof Curb Item No.: 2ZV83
Label, Man, Publisher, StudioDAYTON
ProductTypeNameELECTRONIC_COMPONENT
TitleExhaust Ventilator, 208-230/460 Volts

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG047047719999911 @ $2060.99
Grainger7CF481-211 @ $1792.00
Raptor SuppliesAF3FRM111 @ $3123.43
sustainablesupply.comC11272401-211 @ $2382.90
simsupply.comZO-G047047715711 @ $2438.95
