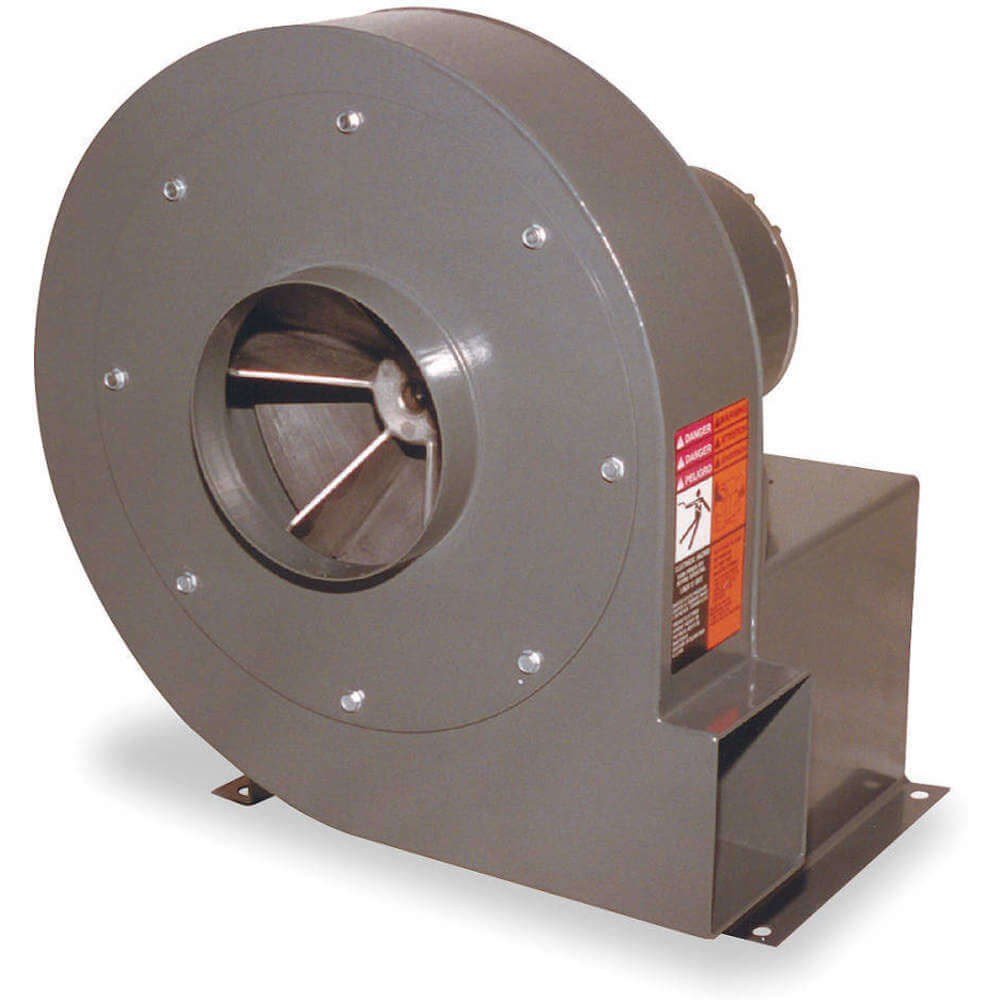

DAYTON . 7C447

High Pressure Blower, Wheel Type Radial, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 10 1/2 in, Airflow @ 0.000 in SP Not Applicable, Airflow @ 0.100 in SP Not Applicable, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP Not Applicable, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable

Radial blade, high-pressure direct-drive blower features a housing can be rotated to 8 discharge positions in each rotation. Powerful blower supplies high-pressure air for efficient cooling and conveying. Paddle-type, self-cleaning, die-cast wheels rotate clockwise and are precision balanced for top performance. Bottom horizontal discharge. Great for small-ducted dust exhaust systems and wherever dust collection bags are necessary.<br /><br /> Item: High Pressure Blower<br /> Type: With Motor<br /> Wheel Dia. (In.): 10-9/16<br /> CFM @ 1.000-In. SP: #<br /> CFM @ 2.000-In. SP: #<br /> CFM @ 3.000-In. SP: #<br /> CFM @ 4.000-In. SP: 559<br /> CFM @ 5.000-In. SP: 491<br /> CFM @ 6.000-In. SP: 410<br /> CFM @ 7.000-In. SP: 297<br /> dBA @ 5 Feet: 84<br /> Max. Inlet Temp. (Deg. F): 180<br /> Max. Ambient Temp. (F): 104<br /> Voltage: 115/230<br /> Phase: 1<br /> Hz: 60<br /> Full Load Amps: 12.0/6.0<br /> Motor HP: 1<br /> Motor RPM: 3450<br /> Motor Enclosure: Open Dripproof<br /> Motor Frame: 56<br /> Shaft Dia. (In.): 5/8<br /> Height (In.): 20-1/8<br /> Width (In.): 15-5/8<br /> Depth (In.): 14<br /> Inlet Dia. (In.): 6<br /> Discharge Height (In.): 4<br /> Discharge Width (In.): 3-1/2<br /> Wheel Width (In.): 3<br /> Wheel Bore (In.): 5/8<br /> Blower RPM: 3450<br /> Rotation: CW<br /> Housing Material: Steel<br /> Housing Finish: Gray Polyester Epoxy<br /> Wheel Material: Aluminum<br /> Assembled/Unassembled: Unassembled<br /> Agency Compliance: AMCA AIR<br /> Dimension A (In.): 14-3/4<br /> Dimension B (In.): 9<br /> Dimension C (In.): 4<br /> Dimension D (In.): 3-1/2<br /> Dimension E (In.): 6-7/8<br /> Dimension F (In.): 7-1/2<br /> Dimension G (In.): 3/4<br /> Dimension H (In.): 7-1/4<br /> Dimension J (In.): 6-1/2<br /> Dimension L (In.): 7-5/8<br /> Dimension R (In.): 8-5/8<br /> Dimension K (In.): 8<br /> Dimension O (In.): 14<br /> Dimension P (In.): 6<br /> Dimension S (In.): 8-1/4
