DAYTON . 7AR60

DAYTON . 7AR60

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Label, Man, Publisher, StudioDAYTON
DimensionUnitinch
UNSPSC40101502
height, width40.0
height_AttribOverall Height
length22.0
length_AttribOverall Depth
moq, multiple, tierMinQty1, Number of Fans, Number of Speeds, Phase, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, PartNumber7AR60
qtyInStock0
tierPrice12221.95
width_AttribOverall Width
Product Group, ProductGroupBISS

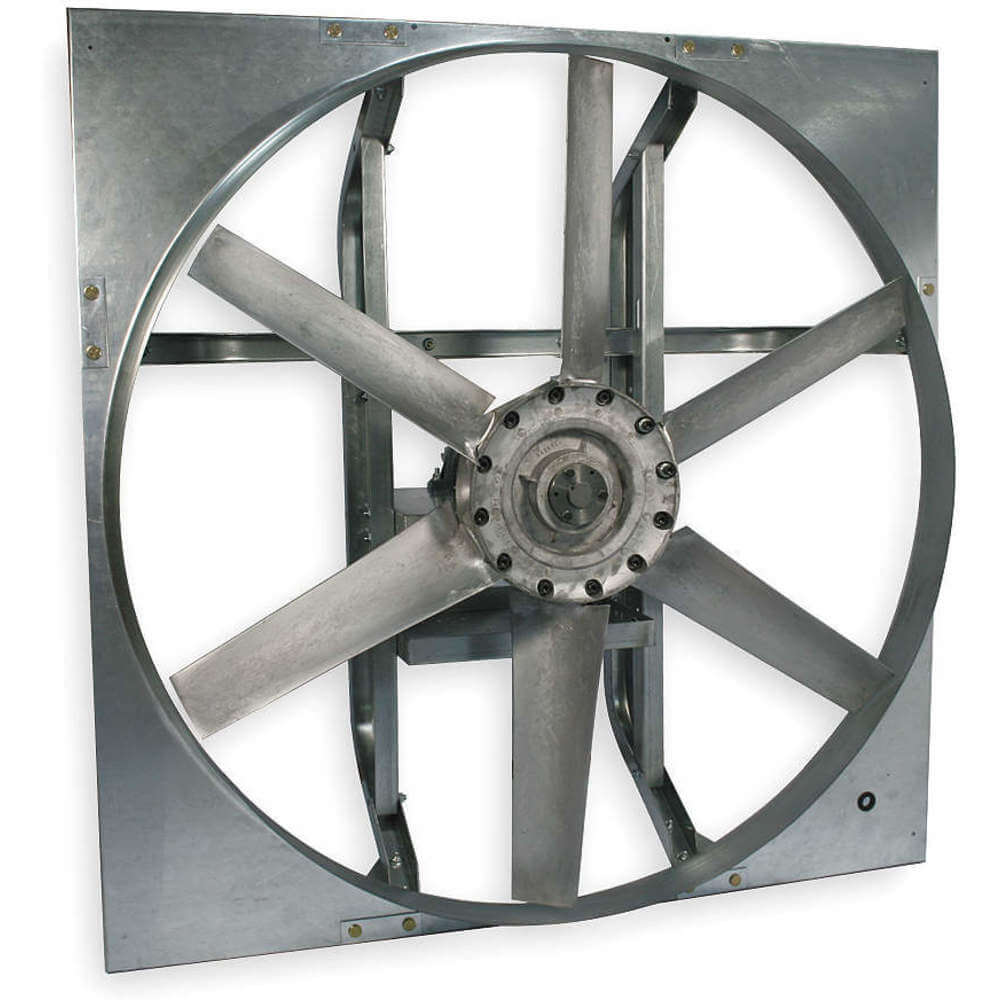

ItemExhaust Fan with Drive Package
AssembledUnassembled
Blade Diameter36 in
Blade MaterialAluminum
Drive TypeBelt Drive
Exhaust Airflow @ 0 000 in SP, Maximum Airflow14,345 cfm
For Cut-Out Height, For Cut-Out Width, For Cut-Out Length38 1/2 in
Frame FinishZinc Plated
Frame MaterialSteel
Guard TypeNone
IncludesDrive Package
Includes Dehumidistat, Speed Controllable, Includes GrillNo
Maximum Noise Level, Noise Level @ 0 000 in SP @ 5 ft13 sones
Motor EnclosureOpen Dripproof
Motor Horsepower3/4 hp
Motor Speed1,725 RPM
Mounting LocationWall
Number of Blades6
Overall Depth22 in
Overall Height, Overall Width, Flange Width40 in
Nameplate Voltage115/230V AC
Fan StylePanel
Includes MotorYes
Method of ConstructionCast
Vent DesignDuctless
Ventilation TypeExhaust
Bearing Size1 1/4 in
Bearing TypeRegreasable Cast Pillow Block
Exhaust Airflow @ 0 125 in SP11,967 cfm
Flange Depth1 in
Frequency60 Hz
Full Load Current2 A
Manufacturer Warranty Length1 yr
AsinB007IC26LY B0086GQQTE
BrandDayton
CatIndustrial & Scientific Tools & Home Improvement
CatId16310091 228013
CatTree16310091 16310161 228013 468240 495346 551240
CatalogNumberListZO G0557776
Feature<b>Price For:</b> Each <b>Assembled/Unassembled</b>: Unassembled <b>Hz</b>: 60 <b>Blade Dia.</b>: 36" <b>Dimension F</b>: 36-3/8" <b>Bearing Type</b>: Regreasable Pillow Block <b>Dimension D</b>: 1" <b>Wall Collar Stock No.</b>: 1WBV3 <b>Mounting Position</b>: Horizontal or Vertical <b>Includes</b>: Drive Package <b>Frame Material</b>: Galvanized Steel <b>Dimension A</b>: 40" <b>Venturi Clearance Dia.</b>: 36-3/8" <b>Height</b>: 40" <b>Intake Guard No.</b>: 1WBU5 Price For: Each Assembled/Unassembled: Unassembled Hz: 60 Blade Dia.: 36" Dimension F: 36-3/8" Bearing Type: Regreasable Pillow Block Dimension D: 1" Wall Collar Stock No.: 1WBV3 Mounting Position: Horizontal or Vertical Includes: Drive Package Frame Material: Galvanized Steel Dimension A: 40" Venturi Clearance Dia.: 36-3/8" Height: 40" Intake Guard No.: 1WBU5
ProductTypeNameELECTRONIC_COMPONENT
TitleHeavy Duty Fan, 14, 345 cfm, 115/208-230V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger7AR60111 @ $2221.95
ZoroG055777619999911 @ $1939.99
Raptor SuppliesAF3CNK111 @ $3188.18
sustainablesupply.comC11267511-211 @ $2248.13
simsupply.comZO-G055777614211 @ $2250.65
