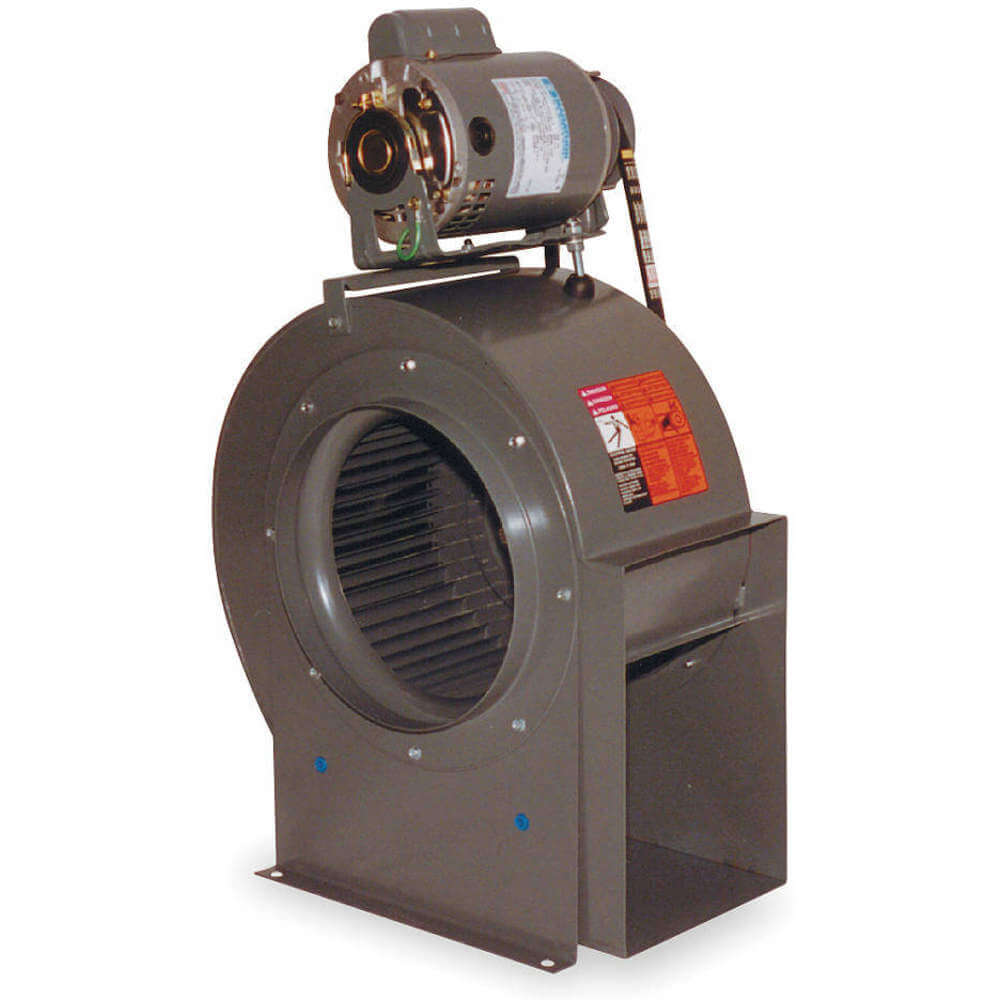

Single-Inlet Forward Curve Belt-Drive Blowers Heavy-gauge steel construction Continuous duty Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FAdjustable top motor mount moves from top to rear mounting. Easily altered to required discharge position by drilling new motor mounting holes, rotating blower housing on base, and bolting in position. Motor is resilient-mounted and automatic reset thermal-protected. High volume at low velocity. Shipped in bottom horizontal discharge position. Drive package components packed separately.Note: Review OSHA codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel.<br /><br /> Item: Blower<br /> Type: With Drive Package<br /> Wheel Dia. (In.): 10-5/8<br /> CFM @ 0.125-In. SP: 1690<br /> CFM @ 0.250-In. SP: 1600<br /> CFM @ 0.375-In. SP: 1480<br /> CFM @ 0.500-In. SP: 1370<br /> CFM @ 0.750-In. SP: 1140<br /> dBA @ 5 Feet: 51<br /> Max. Inlet Temp. (Deg. F): 180<br /> Max. Ambient Temp. (F): 104<br /> Voltage: 115/208-230<br /> Phase: 1<br /> Hz: 60<br /> Full Load Amps: 8.0/4.0-4.0<br /> Motor HP: 1/2<br /> Motor RPM: 1725<br /> Motor Enclosure: Totally Enclosed Fan-Cooled<br /> Motor Frame: 56<br /> Motor Type: Capacitor-Start<br /> Shaft Dia. (In.): 3/4<br /> Height (In.): 19<br /> Width (In.): 12<br /> Depth (In.): 18<br /> Inlet Dia. (In.): 10<br /> Discharge Height (In.): 11-3/4<br /> Discharge Width (In.): 8<br /> Wheel Width (In.): 5-1/4<br /> Blower RPM: 1000<br /> Rotation: CW<br /> Bearing Type: Ball<br /> Wheel Material: Steel<br /> Housing Material: Steel<br /> Housing Finish: Gray Baked Polyester Epoxy<br /> Assembled/Unassembled: Unassembled<br />
