DAYTON . 7AP91

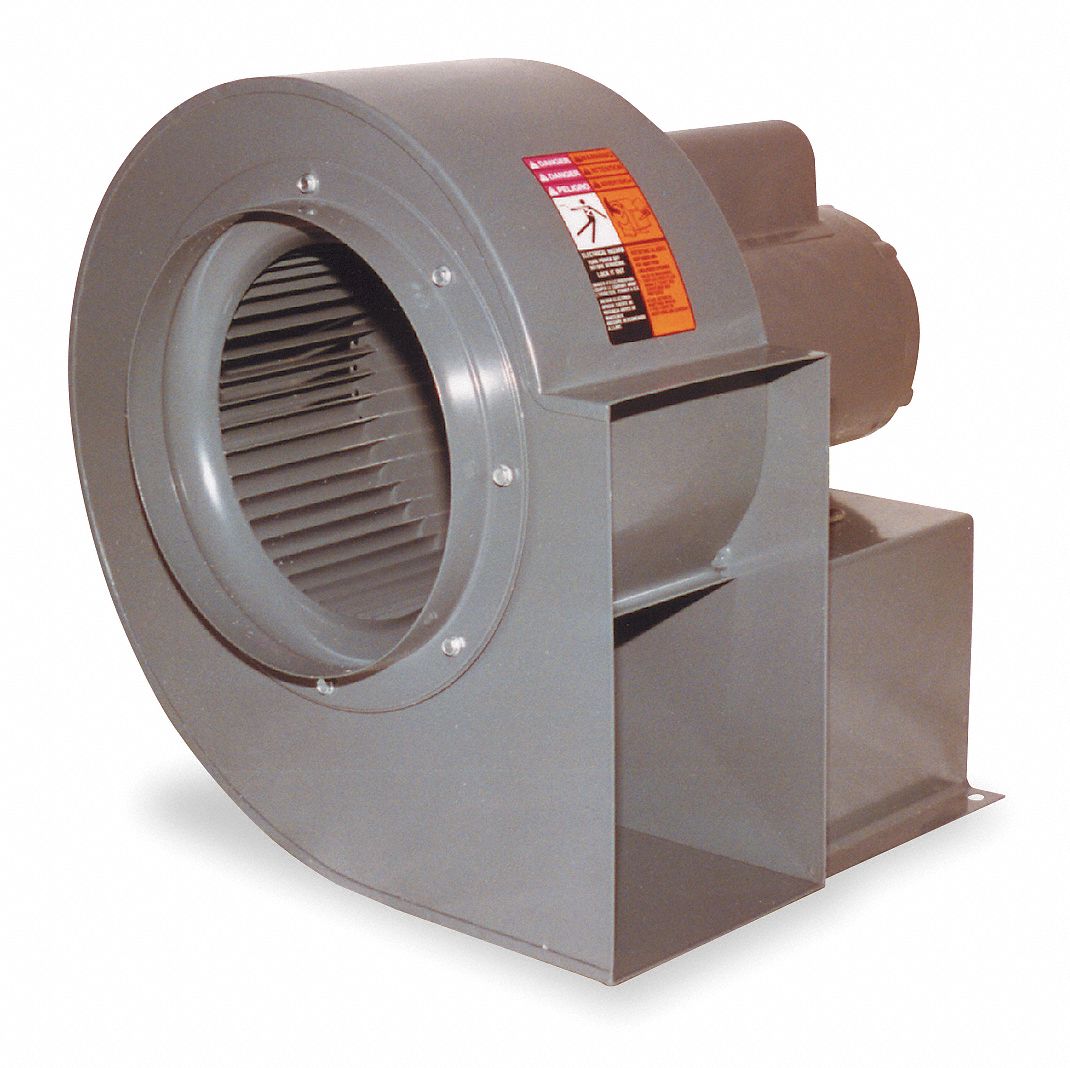

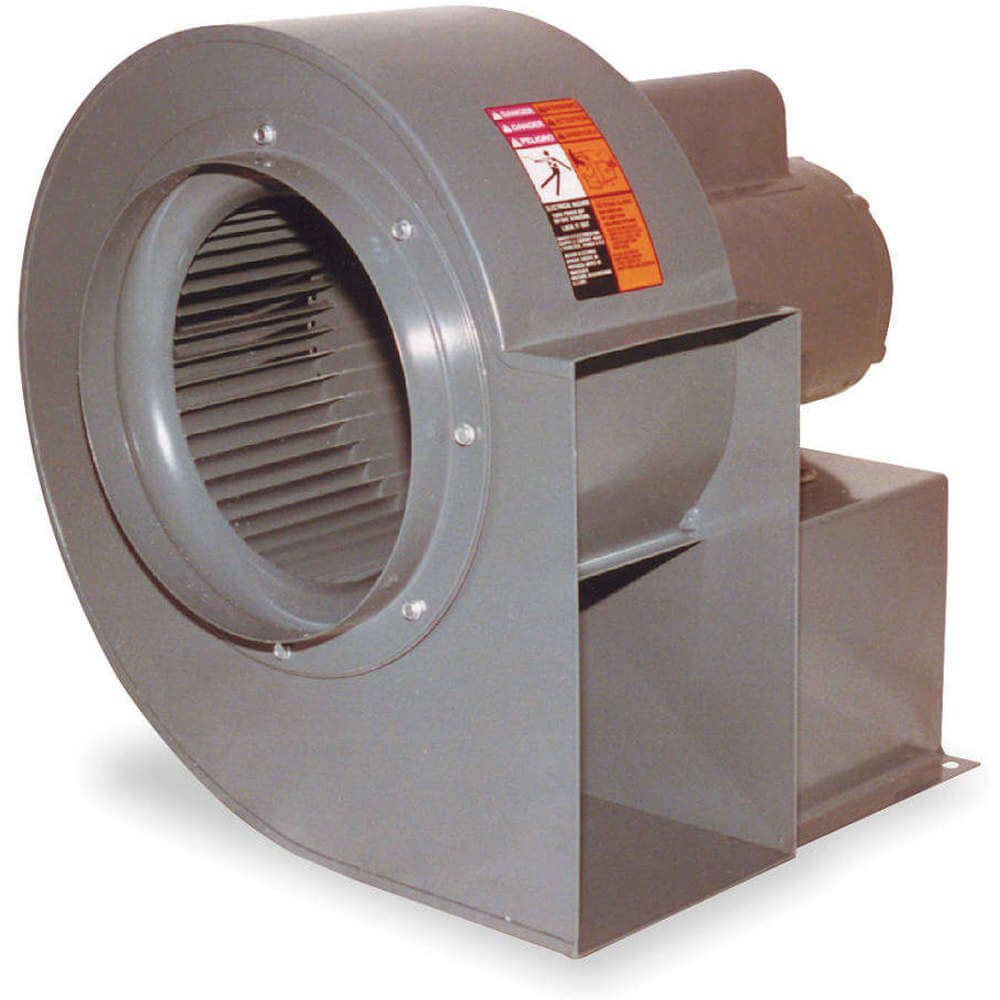

High-VolumeGreat for medium pressures; combine characteristics of high-volume and high-pressure blowers. 16-ga. steel housing with welded, airtight joints. Heavy steel wheel. All motors are rigid mounted.Single-Inlet Forward Curve Direct-Drive Blowers Housing can be rotated to 8 discharge positions in each rotation Welded steel construction Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FProvide high-volume ventilation when duct systems are required. Motor packed separately when ordered with blower.Note: Review OSHA codes. OSHA complying guards are required where fan blades are exposed and within reach of personnel.<br /><br /> Item: Blower<br /> Type: With Motor<br /> Wheel Dia. (In.): 10-5/8<br /> CFM @ 1.500-In. SP: 1848<br /> CFM @ 1.75-In. SP: 1735<br /> CFM @ 2.000-In. SP: 1610<br /> CFM @ 2.250-In. SP: 1457<br /> CFM @ 2.500-In. SP: 1288<br /> CFM @ 2.75-In. SP: 1047<br /> dBA @ 5 Feet: 63<br /> Blower RPM: 1725<br /> Max. Inlet Temp. (Deg. F): 180<br /> Max. Ambient Temp. (F): 104<br /> Voltage: 208-230/460<br /> Hz: 60<br /> Phase: Three<br /> Full Load Amps: 4.5-4.1/2.0<br /> Motor HP: 1-1/2<br /> Motor RPM: 1730<br /> Motor Type: 3-Phase<br /> Motor Enclosure: Totally Enclosed Fan-Cooled<br /> Bearing Type: Ball<br /> Height (In.): 21<br /> Width (In.): 16<br /> Depth (In.): 17<br /> Inlet Dia. (In.): 10<br /> Outlet Height (In.): 11-3/4<br /> Outlet Width (In.): 5-7/8<br /> Wheel Width (In.): 4<br /> Wheel Bore (In.): 7/8<br /> Wheel Material: Steel<br /> Rotation: CW Viewing Drive Side<br /> Housing Material: Steel<br /> Housing Finish: Gray Polyester Epoxy<br /> Assembled/Unassembled: Unassembled<br />
