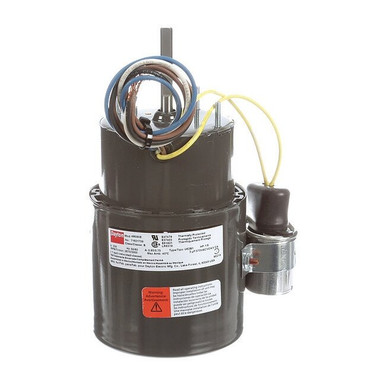

Dayton

Dayton . 71621739M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku4M090
UPCNone
UnitOfMeasureEA
Voltage, Voltage @ 50Hz230V AC
Weight, height6.2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
jsonUrlData924526ffbdad25e5923b
length4.9
moq, multiple, tierMinQty1, Number of Speeds, No of Speeds, Number of Shafts, Motor Service Factor, Service Factor @ 50Hz1
MPN71621739M
qtyInStock153
qtyInStockOverride-2
SKUG2662563
tierPrice1130.90
urlhttps://www.zoro.com/dayton-hvac-motor-18-hp-3000-rpm-230v-33-71621739m/i/G2662563/
width8.7
Nameplate RPM, RPM @ 50Hz3,000 RPM
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP, HP @ 50Hz1/8
RPM Range1,801-3,000
Body Dia4 in
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Mounting Type, MountingStud
Cord Length12 in
Motor ApplicationHVAC/R
PhaseSingle
Hz60/50 Hz
Stud/Base Mtg Pattern, Mounting Stud Pattern2 in x 2 in
Shaft Dia5/16 in
Motor BearingsSleeve
Frame3.3
Length Less Shaft5 3/16 in
Capacitor RequiredIncluded
Motor Sub ApplicationDirect Drive Fan/Blower
Max Ambient Temp40 Degrees C
ItemHVAC Motor
Motor Shaft RotationCW/CCW
Full Load Amps, Full Load Amps @ 50Hz0.60
Motor Thermal ProtectionAuto
Ins ClassB
Shaft Length2 5/16 in
Mounting Stud Location4/Shaft End
Motor Shaft DesignFlat
StandardsCSA Certified (244617), UL Recognized (E37403)
Mounting Pattern2 x 2
Motor DesignPermanent Split Capacitor
Duty, Duty CycleContinuous
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Usable @ 200V, Usable @ 208VNo
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2662563115311 @ $130.90
Grainger4M09011
simsupply.comCU-344D303930110211 @ $146.86
simsupply.comZO-G266256314211 @ $142.77
