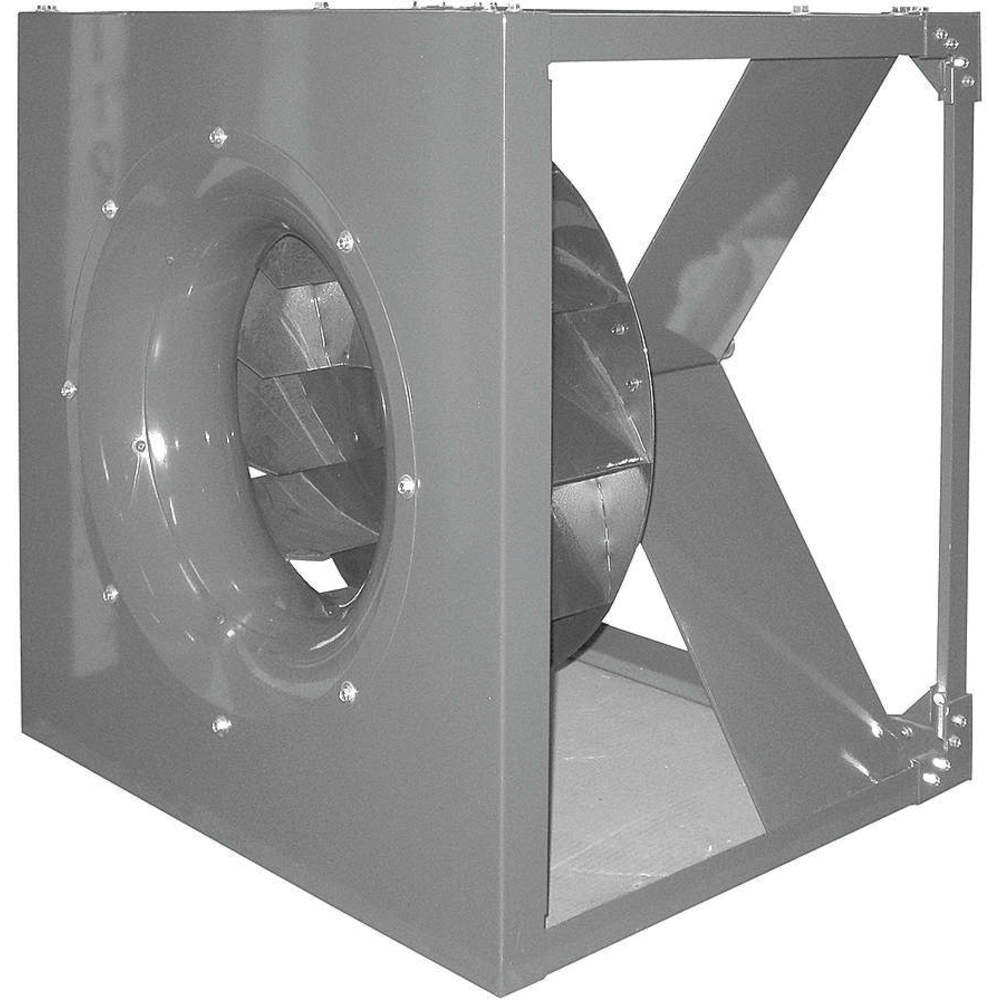

22 in Wheel Dia, Belt Drive, Plenum Fan - 7AL72|7AL72 - Grainger

DAYTON . 7AL72

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDAYTON
CategoryL1HVAC and Refrigeration
DimensionUnitinch
HazmatFalse
Extra Product Name22 in Wheel Dia, Belt Drive, Plenum Fan - 7AL72|7AL72 - Grainger
countryOfOrigin, Country of OriginVaries
height, width32.0
height_AttribFrame Height
length19.7
length_AttribFrame Depth
moq, multiple, tierMinQty11
MPN, SKU, Item?, Mfr Model?7AL72
qtyInStock-2
qtySourcegetStockDataForSku
tierPrice12472.83
width_AttribFrame Width
Catalog PageN/A
Wheel TypeBackward-Curved
Drive TypeBelt Drive
Drive Package with Motor Included?Yes
AssemblyUnassembled
Wheel Diameter22 in
Airflow @ 0 000 in SP5,686 cfm
Airflow @ 0 250 in SP5,420 cfm
Airflow @ 0 500 in SP5,154 cfm
Airflow @ 0 750 in SP4,827 cfm
Airflow @ 1 000 in SP4,456 cfm
Airflow @ 1 250 in SP4,028 cfm
Airflow @ 1 500 in SP3,527 cfm
Airflow @ 1 75 in SP2,577 cfm
Maximum Static Pressure1-1/2 in wc
Maximum Inlet Air Temperature, Maximum Ambient Temperature104 ?F
Bearing TypeBall
Sound Level14.3 sones @ 0.250 in SP and 5 ft; 17.7 sones @ 1.500 in SP and 5 ft
Frame Material, Wheel MaterialSteel
Frame Material FinishEpoxy Coated
Nameplate Voltage208-230/460V AC
Phase3
Current6.1-5.5/2.8 A
Frequency60 Hz
Motor Horsepower2 hp
Maximum Fan Speed1,096 RPM
Maximum Motor Speed1,735 RPM
Motor EnclosureOpen Dripproof
Inlet Diameter13-1/2 in
Rough Opening Height, Rough Opening Width30 in
Frame Height, Frame Width32 in
Frame Depth19.7 in
Shaft Diameter1-5/8 in
Shaft Extension Beyond Frame4 in
Shaft Centerline Height16 in
Mounting OrientationHorizontal
StandardsAMCA Certified
FeaturesBelt Provided is for Typical Motor Mounting Location
IncludesDrive Package
Airflow @ 0 250 in SP Range4000 to 10000 cfm
UNSPSC40101604

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger7AL721-211 @ $2472.83
Raptor SuppliesAF3CDD111 @ $3549.74
ZoroG315844319999911 @ $2160.99
simsupply.comZO-G315844314211 @ $2505.88
