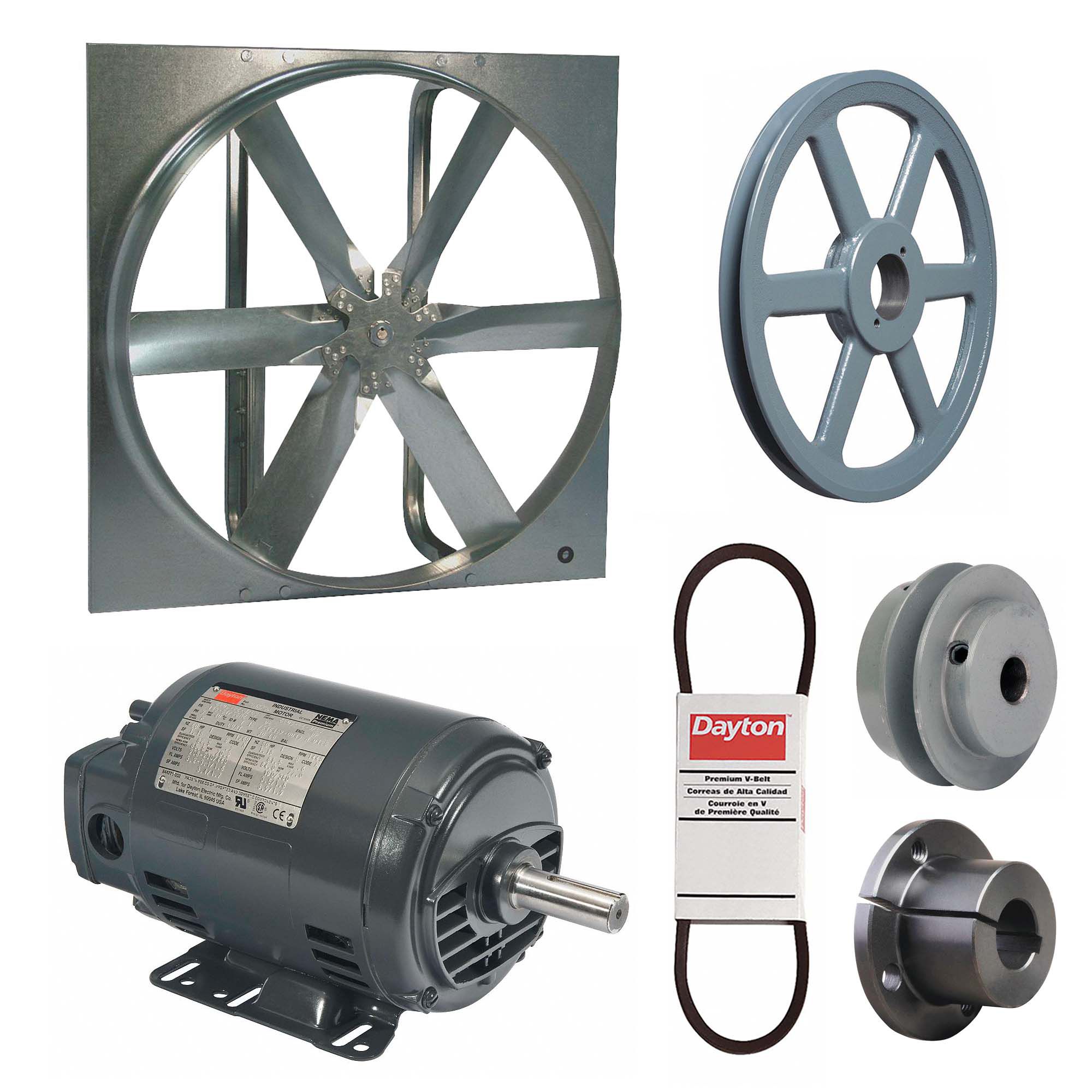

Exhaust Fan with Drive Package, Assembled Unassembled, Blade Diameter 48 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 21,827 cfm, For Cut-Out Height 50 1/2 in, For Cut-Out Width 50 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Includes Drive Package, Includes Dehumidistat No, Maximum Airflow 21,827 cfm, Maximum Noise Level 19.4 sones

Dayton . 7AD48

Gallery

Attributes

Brand name, Manufacturer name, BrandDayton
ManufacturerDayton DAYTON
CategoryId, CategoryIdL35112
CategoryIdL130
CategoryIdL24577
CategoryL1Heating & Cooling
CategoryL2Exhaust Fans
CategoryL3Belt Driven Exhaust Fans
DimensionUnitinch
GTIN, UPC, Guard TypeNone
GraingerSku, MPN, Part Number, PartNumber7AD48
UnitOfMeasureEA
Weight272.29
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height, length, moq, multiple, tierMinQty1, width, Number of Fans, Number of Speeds, Case, NumberOfItems, PackageQuantity1
jsonUrlData924526ffbdad25e5923b
qtyInStock99999
qtyInStockOverrideDrop Ship
SKUG2768351
tierPrice11697.99
urlhttps://www.zoro.com/dayton-std-duty-fan-21-827-cfm-208-230460v-7ad48/i/G2768351/
Product Group, ProductGroupBISS
Blade Dia, Blade Diameter48 in
Height, Flange Width, Width (In ), Dimension A, Overall Width, Overall Height54 in
Dimension D, Flange Depth2 in
Dimension F, Venturi Clearance Dia, Venturi Diameter48 1/2 in
Bearing Size, Shaft Dia, Shaft Diameter1 1/4 in
Max Depth, Dimension B, Overall Depth23 1/2 in
Dimension E16 1/2 in
Venturi Depth, Dimension C7 in
For Cut-Out Width, For Cut-Out Length, For Cut-Out Height50 1/2 in
Manufacturer Warranty Length1 yr
Width54"
Exhaust/Supply Fan ItemExhaust Fan
Exhaust/Supply Fan Motor HP, Motor Horsepower1 hp
Drive Package With Motor Included, Drive Package Included, Includes MotorYes
CFM @ 0 125-In SP, Exhaust Airflow @ 0 125 in SP18,907 cfm
Fan RPM429
Motor Type3-Phase
Aluminum Wall Shutter No3C312
Galvanized Wall Shutter No1C211
Frame Material, Propeller MaterialGalvanized Steel
Max BHP1.2 hp
Fiberglass Wall Shutter No5C220
Intake Guard No1WBU7
CFM @ 0 250-In SP, Exhaust Airflow @ 0 250 in SP13,506 cfm
Number of Blades6
Hz, Frequency60 Hz
CFM @ 0 000-In SP, Exhaust Airflow @ 0 000 in SP, Maximum Airflow21,827 cfm
IncludesDrive Package
Sones @ 0 250-In SP @ 5 Ft15.9
Stock No1WDC4
StandardsAMCA, UL/cUL
Motor RPM1,735 RPM
Sones @ 0 000-In SP @ 5 Ft19.4
Fan Voltage, Nominal Voltage, Nameplate Voltage208-230/460V AC
Bearing TypeRegreasable Pillow Block
Phase3
Assembled/UnassembledUnassembled
Motorized Wall Galv Shutter Stock No3C731
ItemExhaust Fan with Drive Package
Full Load Amps3.2-3.2/1.6
Max Inlet Temp, Maximum Inlet Temperature104 Degrees F
Motor InsulationClass F
Mounting PositionHorizontal or Vertical
Motor EnclosureOpen Dripproof
Wall Collar Stock No1WBV5
Weatherhood No1WBW4
Motor Enclosure DesignOpen Dripproof (ODP)
Motor Speed Range1601 to 1800 RPM
Blade MaterialSteel
Frame FinishZinc Plated
Maximum Noise Level, Noise Level @ 0 000 in SP @ 5 ft19.4 sones
Vent DesignDuctless
Maximum Noise Level @ 0 000 in SP @ 5 ft0 to 30 sones
Fan StylePanel
Blade FinishGalvanized
Drive TypeBelt Drive
Mounting OrientationHorizontal, Vertical
Full Load Current3.2 A
Noise Level @ 0 125 in SP @ 5 ft20 sones
Square Opening RequiredGreater than 30 in
Includes Dehumidistat, Speed Controllable, Includes GrillNo
Maximum Exhaust Airflow @ 0 000 in SP20,001 to 30,000 cfm
Motor Speed1,760 RPM
Number of Shutters0
Ventilation TypeExhaust
AsinB007IBECE4 B0765ZNL1L
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011 720590011
CatalogNumberListZO G2768351
Feature<b>Price For:</b> Each <b>Mounting Position</b>: Horizontal or Vertical <b>Frame Material</b>: Galvanized Steel <b>Exhaust/Supply Fan Item</b>: Exhaust Fan <b>Number of Blades</b>: 6 <b>Item</b>: Standard Duty Exhaust Fan with Motor and Drive Package <b>Hz</b>: 60 <b>Propeller Material</b>: Galvanized Steel <b>Includes</b>: Drive Package <b>Stock No.</b>: 1WDC4 <b>CFM @ 0.000-In. SP</b>: 21, 827 <b>CFM @ 0.125-In. SP</b>: 18, 907 <b>CFM @ 0.250-In. SP</b>: 13, 506 Price For: Each Mounting Position: Horizontal or Vertical Frame Material: Galvanized Steel Exhaust/Supply Fan Item: Exhaust Fan Number of Blades: 6 Item: Standard Duty Exhaust Fan with Motor and Drive Package Hz: 60 Propeller Material: Galvanized Steel Includes: Drive Package Stock No.: 1WDC4 CFM @ 0.000-In. SP: 21, 827 CFM @ 0.125-In. SP: 18, 907 CFM @ 0.250-In. SP: 13, 506
Label, Man, Publisher, StudioDAYTON
ProductTypeNameELECTRONIC_COMPONENT
TitleStd Duty Fan, 21, 827 cfm, 208-230/460V
