Supply Fan w/Drive Package, Assembled Unassembled, Blade Diameter 30 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 7,713 cfm, For Cut-Out Height 32 1/2 in, For Cut-Out Width 32 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Includes Drive Package, Includes Dehumidistat No, Maximum Airflow 7,713 cfm, Maximum Noise Level 14.6 sones
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G1249236 | 1 | 99999 | 1 | 1 @ $868.99 |
| Grainger | 7AC97 | 1 | 1 | ||
| AF3BAZ | 1 | 1 | 1 @ $1775.80 | ||
 simsupply.com | ZO-G1249236 | 1 | 57 | 1 | 1 @ $1028.42 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Supply Fan, 30 In, 208-230/460 V
Brand: Dayton
Catalog
| Feature | Price For: Each Blade Dia.: 30" Max. Depth: 22-7/8" Wall Collar Stock No.: 1WBV2 Mounting Position: Vertical or Horizontal Frame Material: Galvanized Steel Venturi Clearance Dia.: 30-3/8" Height: 34" Intake Guard No.: 1WBU4 Flange Width: 1" Outside Dia.: 34" Width: 34" Drive Type: Belt Max. Ambient Temp.: 104 Degrees F Max. Inlet Temp.: 104 Degrees F |
|---|---|
| Category | Industrial & Scientific |
| MPN | 7AC97 |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | DAYTON |

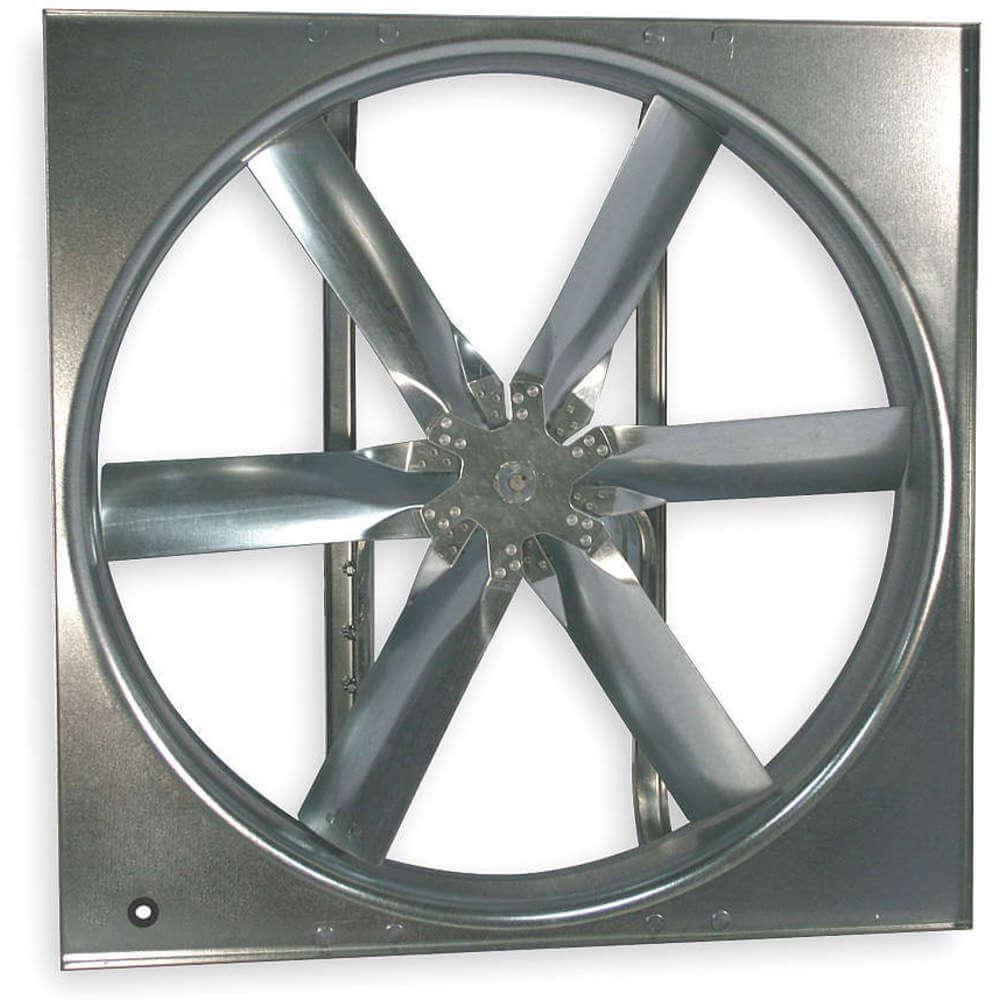

Dayton 30"-Dia. Standard-Duty Supply Fan w/Drive Package, Open DripproofMotor Enclosure
Brand: CAI - DAYTON
Standard-duty supply fan features 6-blade galvanized-steel propellers and rigid drive-frame rails. Has variable pitch, adjustable motor pulley that helps optimize fan performance. Designed for commercial applications requiring high volumes of air at low static pressures. Air handling-quality bearings meet a minimum of L10-100,000 hours. Motors, sheaves, bushings, and belts are packed separately when complete fan with drive package is ordered. Has regreasable pilllow block ball bearings. Mount supply fan vertically and for exhaust horizontal.<br /><br /> Item: Supply Fan w/Drive Package<br /> Fan Duty Rating: Standard<br /> Motor Enclosure: Open Dripproof<br /> Blade Dia.: 30"<br /> Drive Type: Belt<br /> Exhaust/Supply Fan Item: Supply Fan<br /> Fan Voltage: 208-230/460VAC<br /> Exhaust/Supply Fan Motor HP: 1/3<br /> Drive Package With Motor Included: Yes<br /> Fan RPM: 675<br /> CFM @ 0.000-In. SP: 7713<br /> CFM @ 0.125-In. SP: 6763<br /> CFM @ 0.250-In. SP: 5160<br /> Sones @ 0.000-In. SP @ 5 Ft.: 14.6<br /> Sones @ 0.125-In. SP @ 5 Ft.: 14.1<br /> Max. BHP: 0.39<br /> Max. Inlet Temp.: 104 Degrees F<br /> Max. Ambient Temp.: 104 Degrees F<br /> Hz: 60<br /> Phase: 3<br /> Full Load Amps: 1.5-1.6/0.8<br /> Motor Type: 3-Phase<br /> Motor Insulation: Class B<br /> Motor RPM: 1725<br /> Bearing Size: 3/4"<br /> Bearing Type: Sealed Pillow Block<br /> Number of Blades: 6<br /> Blade Material: Steel<br /> Shaft Dia.: 3/4"<br /> Outside Dia.: 34"<br /> Height: 34"<br /> Width: 34"<br /> Overall Depth: 22-7/8"<br /> Max. Depth: 22-7/8"<br /> Flange Width: 1"<br /> Mounting Position: Vertical or Horizontal<br /> Frame Material: Galvanized Steel<br /> Intake Guard No.: 1WBU4<br /> Motorized Wall Galv. Shutter Stock No.: 3C728<br /> Stock No.: 1WDC6<br /> Venturi Clearance Dia.: 30-3/8"<br /> Wall Collar Stock No.: 1WBV2<br /> Weatherhood No.: 1WBW1<br /> Assembled/Unassembled: Unassembled<br /> Standards: AMCA, UL/cUL<br /> Includes: Drive Package
Listing
| Product group | BISS |
|---|---|
| Product type | MECHANICAL_COMPONENTS |
| Part number | 7AC97 |
| Label | CAI - DAYTON |
| Manufacturer | CAI - DAYTON |
