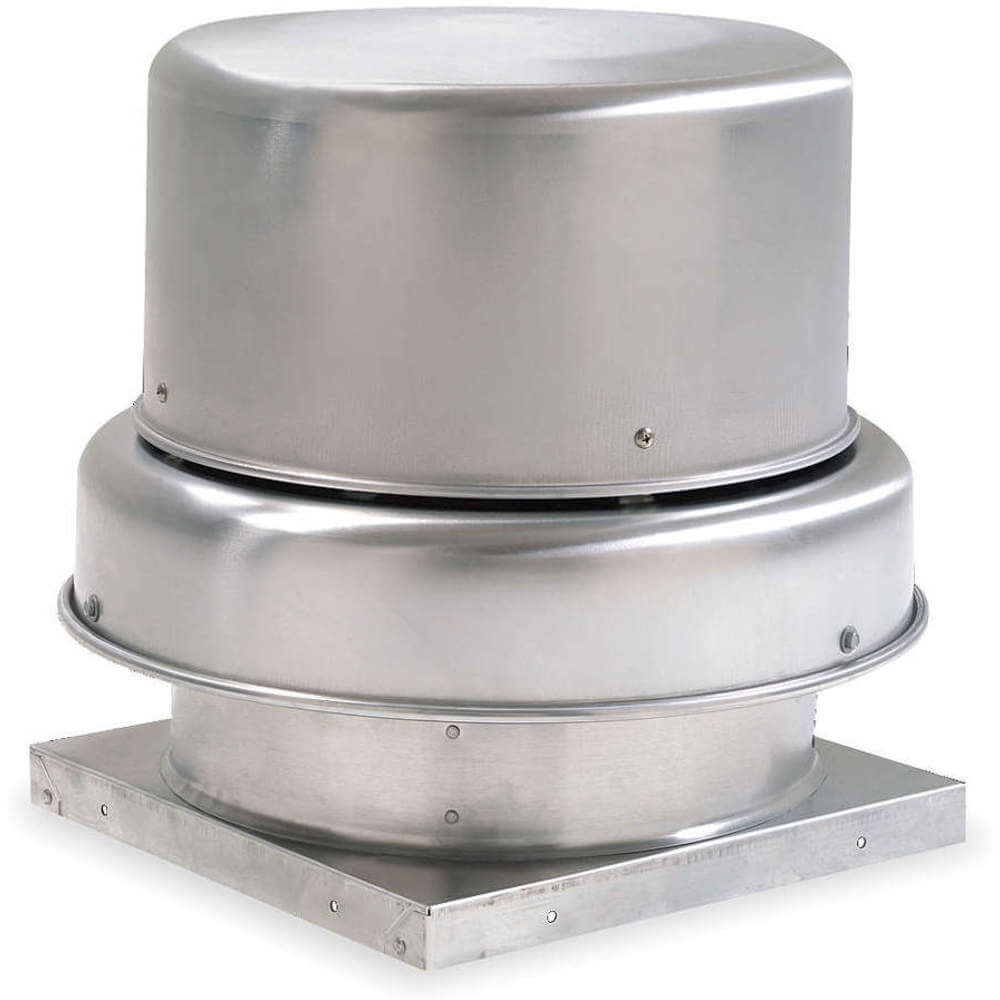

Exhaust Ventilator, 1/2 hp, 20 in Blade Dia., 230V AC/460V AC, Belt Drive

Dayton . 7A416

Gallery

Attributes

Brand name, Manufacturer name, BrandDayton
ManufacturerDayton DAYTON
CategoryId5105
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, PartNumber7A416
Extra Product NameExhaust Ventilator, 1/2 hp, 20 in Blade Dia., 230V AC/460V AC, Belt Drive
UPCNone
UnitOfMeasureEA
Weight126.21 7.14
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
height, length, width26
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Number of Speeds, Case, NumberOfItems, PackageQuantity1
qtyInStock99999
qtyInStockOverrideDrop Ship
SKUG3293586
tierPrice11779.44
urlhttps://www.zoro.com/dayton-exhaust-ventilator-12-hp-20-in-blade-dia-230v-ac460v-ac-belt-drive-7a416/i/G3293586/
Product GroupBISS
Blade Dia, Blade Diameter20 in
Base Size - Roof Ventilators30 in x 30 in
Dimension B, Overall Dia (In ), Overall Length, Overall Width35 1/4 in
Base Length (In ), Base Width (In ), Dimension A (In )30
Base Square Size - Roof Ventilators30" x 30"
Dimension A, Base Width, Base Length30 in
Dimension B (In )35.25
Propeller Dia (In )20
Overall Height (In ), Overall Height30 1/2 in
Shaft Dia Propeller End (In ), Shaft Dia Sheave End (In ), Propeller Shaft Diameter3/4 in
Base Height (In ), Base Height1 3/4 in
Dimension D5 1/8 in
Dimension D (In )5.125
Dimension C28 3/4 in
Dimension C (In )28 3/4
Recommended Damper Size (In )23 x 23
Housing Length, Overall Diameter, Housing Width35.3 in
Damper Size23 x 23 in
Base Dimension30 in Square
Base DiameterNot Applicable
ItemAxial Downblast Roof Exhaust Fan
Item - Roof VentilatorsExhaust Ventilator
Drive Package With Motor Included, Drive Package Included, Includes MotorYes
Drive Type - Roof Ventilators, Drive TypeBelt Drive
Voltage - Roof Ventilators230V AC/460V AC
Motor HP - Roof Ventilators1/2 hp
CFM @ 0 000-In SP, Exhaust Airflow @ 0 000 in SP3,456 cfm
Recommended 12 In Fixed Curb Item No2RB79
Recommended Damper Stock No4HX67
Speed Controllableno
Mounting LocationRoof
Motor Hz60
Motor Voltage230/460
Motor HP1/2
Housing MaterialSpun Aluminum
Adj 12 3/8"H Roof Curb Stock No2ZV83
Adj 6 3/8"H Roof Curb Stock No4c454
Phase3
CFM @ 0 125-In SP3,092 cfm
Stock No4YU88
CFM @ 0 500-In SP, Exhaust Airflow @ 0 500 in SP1,795 cfm
ApplicationGeneral Clean Air
CFM @ 0 375-In SP, Exhaust Airflow @ 0 375 in SP2,228 cfm
CFM @ 0 250-In SP2,743 cfm
RequiresRoof curb for new installations
Bearing TypeRegreasable Pillow Block
Agency ComplianceUL And C-UL Listed
Assembled/UnassembledUnassembled
Max Inlet Temp (Deg F), Maximum Inlet Air Temperature, Maximum Ambient Temperature120 Degrees F
Motor HP Range1/4 to 3/4
Recommended 8 In Fixed Curb Item No4HX41
Propeller Material, Blade MaterialSteel
Max Operating Amps2.2/1.1
IncludesNEMA 1 Junction Box
TypeAxial Belt Drive Downblast with Drive Package
RPM1,002 RPM
Max BHP0.52 hp
For Air TypeClean Air
FeaturesFully Rolled Bead on the Windband Ensures Stability and Provides Rigidity for Lifting and Transporting, NEMA 1 Junction Box Located in Motor Enclosure
Resistance PropertiesWeather Resistant
High-Efficiency MotorNo
MaterialSteel Blade with Aluminum Housing
Blade DesignSwept Steeply Pitched
Mount TypeRoof Curb
Frequency60 Hz
Electrical ConnectionPower Cord
Brake Horsepower13/25 hp
Housing Material FabricationSpun
Motor EnclosureOpen Dripproof
Base ShapeSquare
Motor Enclosure DesignOpen Dripproof (ODP)
Motor EfficiencyStandard-Efficiency Motors
StandardsAMCA Sound and Air, UL/cUL 705
Safety FeaturesBirdscreen, Windband
Number of Blades5
ASINB0765V658R
AsinB007I9XONQ B0765V658R
CatIndustrial & Scientific
CatId, CatTree16310091
CatalogNumberListZO G3293586
FeaturePrice For: Each Propeller Material: Steel Mounting Location: Roof Bearing Type: Regreasable Pillow Block Requires: Roof Curb For New Installations Includes: NEMA 1 Junction Box Sones @ 0.250-In. SP @ 5 Ft.: - Max. Inlet Temp. (Deg. F): 120 Speed Controllable: No Application: General Clean Air Agency Compliance: UL 705 Housing Material: Spun Aluminum Item: Exhaust Ventilator
Height, Width75
Label, Man, Publisher, StudioDAYTON
ProductGroupBISS BISS Basic
ProductTypeNameADHESIVE_TAPES ELECTRIC_FAN ELECTRONIC_COMPONENT
TitleExhaust Vent, 20 In Exhaust Vent, 20 in
URLhttps://m.media-amazon.com/images/I/41ofXglzCYL._SL75_.jpg
Unitspixels pounds

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG329358619999911 @ $1779.44
Grainger7A41611
Raptor SuppliesAF3AFQ111 @ $2923.92
sustainablesupply.comC11258821-211 @ $1708.97
simsupply.comZO-G329358614211 @ $2064.11
