Dayton

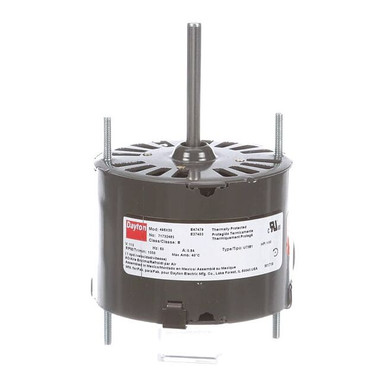

Dayton . 71732485M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku498X30
UnitOfMeasureEA
Voltage115V AC
Weight2.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height, width3.8
jsonUrlData924526ffbdad25e5923b
length6.8
moq, multiple, tierMinQty1, Number of Speeds, Motor Service Factor, No of Speeds, Number of Shafts1
MPN71732485M
qtyInStock44
qtyInStockOverride-2
SKUG3791279
tierPrice160.07
urlhttps://www.zoro.com/dayton-hvac-motor-1150-hp-1550-nameplate-rpm-71732485m/i/G3791279/
Nameplate RPM1,550 RPM
Motor Enclosure DesignOpen Air-Over
HP1/150
RPM Range1,501-1,600
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting TypeStud
Shaft Dia1/4 in
Motor BearingsSleeve
Max Ambient Temp40 Degrees C
ApplicationHVAC/R
Frame3.3
Ins ClassB
Mounting Stud Location2/Both Ends
Duty, Duty CycleContinuous
Plug TypeNone
Motor Thermal ProtectionAuto
Motor Shaft RotationCCWSE
Motor Sub ApplicationDirect Drive Fan/Blower
Mounting Pattern2-7/8
StandardsCSA Certified, UL Recognized
Motor ApplicationGeneral Application
PhaseSingle
ItemHVAC Motor
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Motor Shaft DesignFlat
Full Load Amps0.84
Shaft Length2 1/4 in
Hz60 Hz
Motor DesignShaded Pole
Length Less Shaft2 1/2 in
Stud/Base Mtg Pattern2-7/8 in
Body Dia3 5/16 in
Mounting Stud Pattern2 7/8 in
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG379127914411 @ $60.07
simsupply.comCU-3439385833301211 @ $63.36
simsupply.comZO-G379127913511 @ $69.79
Grainger498X3011
