Dayton

Dayton . 71732299M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku3M534
UPCNone
UnitOfMeasureEA
Voltage115V AC
Weight2.15
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.8
jsonUrlData924526ffbdad25e5923b
length3.7
moq, multiple, tierMinQty1, Number of Speeds, Motor Service Factor, No of Speeds, Number of Shafts1
MPN71732299M
qtyInStock190
qtyInStockOverride-2
SKUG2844362
tierPrice151.57
urlhttps://www.zoro.com/dayton-hvac-motor-1100-hp-1550-rpm-115v-33-71732299m/i/G2844362/
width6.5
Nameplate RPM1,550 RPM
Motor Enclosure DesignOpen Air-Over
HP1/100
RPM Range1,501-1,600
Motor Thermal ProtectionAuto
Motor DesignShaded Pole
Motor Shaft RotationCWSE
Hz60 Hz
PhaseSingle
Cord Length12 in
Length Less Shaft2 1/8 in
StandardsCSA Certified, UL Recognized
Motor Shaft DesignFlat
Shaft Length2 1/4 in

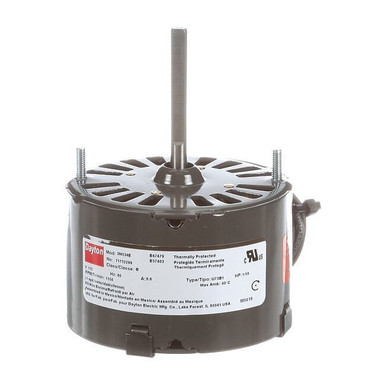

ItemHVAC Motor
Motor BearingsSleeve
Duty, Duty CycleContinuous
Motor Mounting Type, MountingStud
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Max Ambient Temp40 Degrees C
Shaft Dia1/4 in
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps0.70
Motor Sub ApplicationDirect Drive Fan/Blower
Body Dia3 5/16 in
Motor ApplicationHVAC/R
Stud/Base Mtg Pattern2-7/8 in
Mounting Stud Location2/Shaft End
Mounting Pattern2-7/8
Ins ClassB
Frame3.3
Capacitor Required, Usable @ 208V, Usable @ 200VNo
Mounting Stud Pattern2 7/8 in
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2844362119011 @ $51.57
Grainger3M53411
sustainablesupply.comC15573431Add to Cart11 @ $77.77
simsupply.comZO-G284436214211 @ $67.81
