Dayton

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku4M216
UPCNone
UnitOfMeasureEA
Voltage115V AC
Weight2.2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.6
jsonUrlData924526ffbdad25e5923b
length3.9
moq, multiple, tierMinQty1, Number of Speeds, Motor Service Factor, Number of Shafts, No of Speeds1
MPN71732298M
qtyInStock59
qtyInStockOverride-2
SKUG0513782
tierPrice154.95
urlhttps://www.zoro.com/dayton-hvac-motor-1100-hp-1550-rpm-115v-33-71732298m/i/G0513782/
width6.7
Nameplate RPM1,550 RPM
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/100
RPM Range1,501-1,600
FootnotesMechanically reversible
Stud/Base Mtg Pattern2-7/8 in
Motor BearingsSleeve
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Body Dia3 5/16 in
Motor Thermal ProtectionAuto
Max Ambient Temp40 Degrees C
Full Load Amps0.60
Length Less Shaft, Mounting Stud Pattern2 7/8 in
Shaft Dia1/4 in
Frame3.3
Mounting Pattern2-7/8
Motor ApplicationHVAC/R
Motor Shaft DesignFlat
StandardsCSA Certified, UL Recognized
Shaft Length2 3/8 in
Motor DesignShaded Pole
Hz60 Hz
Ins ClassA
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Motor Shaft RotationCWSE
Duty, Duty CycleContinuous
Motor Mounting Type, MountingStud

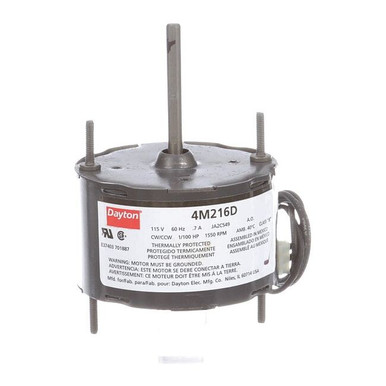

ItemHVAC Motor
Mounting Stud Location2/Both Ends
PhaseSingle
Motor Sub ApplicationDirect Drive Fan/Blower
Cord Length12 in
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG051378215911 @ $54.95
Grainger4M21611
sustainablesupply.comC15612671Add to Cart11 @ $73.22
simsupply.comZO-G051378214211 @ $63.85
