Dayton

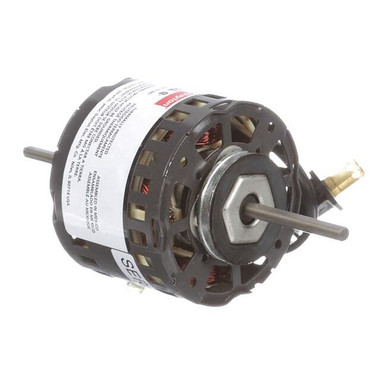

Dayton . 71637643M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku4M194
UPCNone
UnitOfMeasureEA
Voltage115V AC
Weight3.4
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.7
jsonUrlData924526ffbdad25e5923b
length3.8
moq, multiple, tierMinQty1, Number of Speeds, No of Speeds, Motor Service Factor, Number of Shafts1
MPN71637643M
qtyInStock89
qtyInStockOverride-2
SKUG3173265
tierPrice159.36
urlhttps://www.zoro.com/dayton-hvac-motor-125-hp-1550-rpm-115v-33-71637643m/i/G3173265/
width8.4
Nameplate RPM1,550 RPM
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/25
RPM Range1,501-1,600
PhaseSingle
Duty, Duty CycleContinuous
Shaft Dia1/4 in
Motor Mounting Type, MountingStud
Mounting Stud Location4/Opposite Shaft End
Motor ApplicationHVAC/R
IncludesCordset, Plug
Frame3.3
Motor Shaft RotationCWSE
Ins ClassB
Full Load Amps1.40
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub ApplicationDirect Drive Fan/Blower
Shaft Length1 15/16 in
Motor Thermal ProtectionAuto
Length Less Shaft3 3/8 in
Motor DesignShaded Pole
Stud/Base Mtg Pattern, Mounting Stud Pattern2 in x 2 in
Max Ambient Temp40 Degrees C
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Mounting Pattern2 x 2
Plug Type2 Prong Non-Polarized
Body Dia3 5/16 in
Hz60 Hz
Motor BearingsSleeve
Footnotes3
Motor Shaft DesignFlat
Cord Length10 in
ItemHVAC Motor
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Motor Mounting PositionAll Angle
Shop ByCloseouts
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG317326518911 @ $59.36
Grainger4M19411
sustainablesupply.comC15612511Add to Cart11 @ $79.10
simsupply.comCU-344D31393415511 @ $73.46
simsupply.comZO-G317326514211 @ $68.96
