Dayton

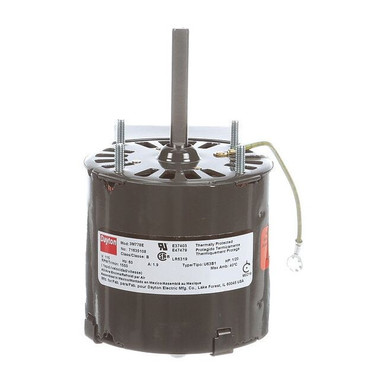

Dayton . 71635108M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku3M778
UPCNone
UnitOfMeasureEA
Voltage115V AC
Weight3.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.7
jsonUrlData924526ffbdad25e5923b
length5.3
moq, multiple, tierMinQty1, Number of Speeds, No of Speeds, Motor Service Factor, Number of Shafts1
MPN71635108M
qtyInStock896
qtyInStockOverride-2
SKUG3167841
tierPrice166.63
urlhttps://www.zoro.com/dayton-hvac-motor-120-hp-1550-rpm-115v-33-71635108m/i/G3167841/
width7.4
Nameplate RPM1,550 RPM
Motor Enclosure DesignOpen Air-Over
HP1/20
RPM Range1,501-1,600
Motor Mounting Type, MountingStud
Hz60 Hz
Stud/Base Mtg Pattern, Mounting Stud Pattern2 in x 2 in
Full Load Amps2.1
Duty, Duty CycleContinuous
Motor Thermal ProtectionAuto
Max Ambient Temp40 Degrees C
Includes5 cu. in. Junction Box
Body Dia3 5/16 in
Motor Shaft RotationCWSE
Footnotes51
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Shaft Dia5/16 in
Mounting Stud Location4/Shaft End
PhaseSingle
Length Less Shaft2 3/4 in
Frame3.3
Motor DesignShaded Pole
StandardsCSA Certified, UL Recognized
Motor BearingsSleeve
Ins ClassB
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Pattern2 x 2
ItemHVAC Motor
Motor Shaft DesignFlat
Motor Sub ApplicationDirect Drive Fan/Blower
Cord Length6 in
Motor ApplicationHVAC/R
Shaft Length2 1/4 in
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3167841189611 @ $66.63
sustainablesupply.comC15573861Add to Cart11 @ $88.78
simsupply.comCU-334D373738128411 @ $65.31
simsupply.comZO-G316784114211 @ $77.40
Grainger3M77811
