Dayton

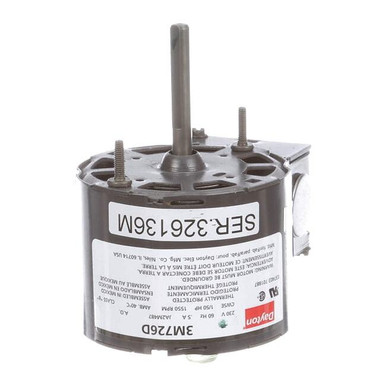

Dayton . 71634704M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku3M726
UnitOfMeasureEA
Voltage230V AC
Weight2.91
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height5
jsonUrlData924526ffbdad25e5923b
length7.4
moq, multiple, tierMinQty1, Number of Speeds, Motor Service Factor, No of Speeds, Number of Shafts1
MPN71634704M
qtyInStock45
qtyInStockOverride-2
SKUG3128106
tierPrice157.89
urlhttps://www.zoro.com/dayton-hvac-motor-150-hp-1550-rpm-230v-33-71634704m/i/G3128106/
width4.7
Nameplate RPM1,550 RPM
Motor Enclosure DesignOpen Air-Over
HP1/50
RPM Range1,501-1,600
Hz60 Hz
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor ApplicationHVAC/R
Footnotes51
Motor Shaft RotationCWSE
Mounting Stud Location2/Shaft End
Motor BearingsSleeve
Motor Sub ApplicationDirect Drive Fan/Blower
StandardsCSA Certified, UL Recognized
ItemHVAC Motor
Body Dia3 5/16 in
Motor DesignShaded Pole
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Shaft Length2 1/4 in
Motor Shaft DesignFlat
Motor Thermal ProtectionAuto
Frame3.3
Includes5 cu. in. Junction Box
Duty, Duty CycleContinuous
Motor Mounting Type, MountingStud
Cord Length12 in
Stud/Base Mtg Pattern2-7/8 in
Length Less Shaft2 1/2 in
Max Ambient Temp40 Degrees C
Ins ClassB
Full Load Amps0.50
Mounting Pattern2-7/8
Shaft Dia5/16 in
PhaseSingle
Capacitor Required, Usable @ 208V, Usable @ 200VNo
Motor Mounting PositionAll Angle
Mounting Stud Pattern2 7/8 in
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG312810614511 @ $57.89
Grainger3M72611
sustainablesupply.comC29802351Add to Cart11 @ $64.11
simsupply.comCU-334D37323614011 @ $60.54
simsupply.comZO-G312810614011 @ $65.27
