Dayton

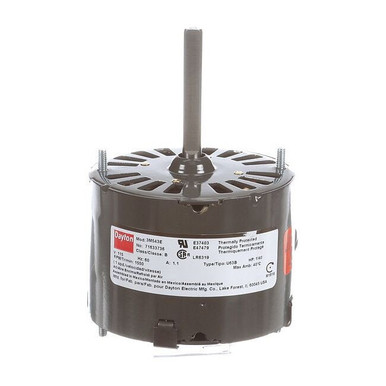

Dayton . 71633736M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku3M543
UPCNone
UnitOfMeasureEA
Voltage115V AC
Weight2.8
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.5
jsonUrlData924526ffbdad25e5923b
length7.4
moq, multiple, tierMinQty1, Number of Speeds, Number of Shafts, Motor Service Factor, No of Speeds1
MPN71633736M
qtyInStock221
qtyInStockOverride-2
SKUG1983572
tierPrice156.12
urlhttps://www.zoro.com/dayton-hvac-motor-140-hp-1550-rpm-115v-33-71633736m/i/G1983572/
width4.6
Nameplate RPM1,550 RPM
Motor Enclosure DesignOpen Air-Over
HP1/40
RPM Range1,501-1,600
Shaft Length2 5/16 in
ItemHVAC Motor
Mounting Stud Location2/Both Ends
Ins ClassB
Max Ambient Temp40 Degrees C
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps1.10
Motor Thermal ProtectionAuto
Motor BearingsSleeve
Stud/Base Mtg Pattern2-7/8 in
Shaft Dia5/16 in
Duty, Duty CycleContinuous
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Shaft RotationCWSE
Mounting Pattern2-7/8
Motor DesignShaded Pole
Frame3.3
Length Less Shaft3 1/8 in
Motor Shaft DesignFlat
Motor Mounting Type, MountingStud
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Hz60 Hz
PhaseSingle
StandardsCSA Certified, UL Recognized
Body Dia3 5/16 in
Motor ApplicationHVAC/R
Cord Length12 in
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Mounting Stud Pattern2 7/8 in
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1983572122111 @ $56.12
Grainger3M54311
sustainablesupply.comC15573521Add to Cart11 @ $75.46
simsupply.comZO-G198357214211 @ $65.80
