Dayton

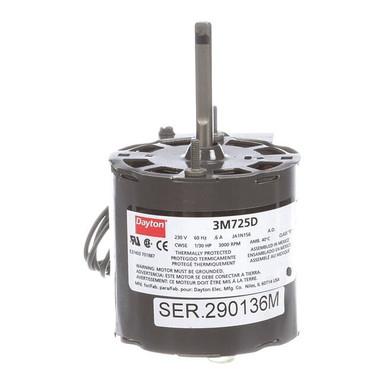

Dayton . 71214610M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku3M725
UPCNone
UnitOfMeasureEA
Voltage230V AC
Weight21.6
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height, qtyInStock33
jsonUrlData924526ffbdad25e5923b
length44.4
moq, multiple, tierMinQty1, Number of Speeds, No of Speeds, Number of Shafts, Motor Service Factor1
MPN71214610M
qtyInStockOverride-2
SKUG0847357
tierPrice160.83
urlhttps://www.zoro.com/dayton-hvac-motor-130-hp-3000-rpm-230v-33-71214610m/i/G0847357/
width22.8
Nameplate RPM3,000 RPM
Motor Enclosure DesignOpen Air-Over
HP1/30
RPM Range1,801-3,000
Motor Mounting Type, MountingStud
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps0.60
Motor Shaft RotationCWSE
Max Ambient Temp40 Degrees C
Motor Thermal ProtectionAuto
Shaft Length2 1/4 in
Duty, Duty CycleContinuous
Motor BearingsSleeve
Ins ClassB
StandardsCSA Certified, UL Recognized (E37403)
Hz60 Hz
Shaft Dia5/16 in
Frame3.3
Cord Length6 in
Length Less Shaft3 1/8 in
Mounting Pattern2-7/8
Motor DesignShaded Pole
Mounting Stud Location2/Shaft End
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
PhaseSingle
Includes5 cu. in. Junction Box
Motor Sub ApplicationDirect Drive Fan/Blower
ItemHVAC Motor
Body Dia3 5/16 in
Motor ApplicationHVAC/R
Footnotes51
Motor Shaft DesignFlat
Stud/Base Mtg Pattern2-7/8 in
Capacitor Required, Usable @ 208V, Usable @ 200VNo
Motor Mounting PositionAll Angle
Mounting Stud Pattern2 7/8 in
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG084735713311 @ $60.83
Grainger3M72511
sustainablesupply.comC15573811Add to Cart11 @ $76.20
simsupply.comCU-334D3732351211 @ $89.11
simsupply.comZO-G084735713911 @ $66.45
