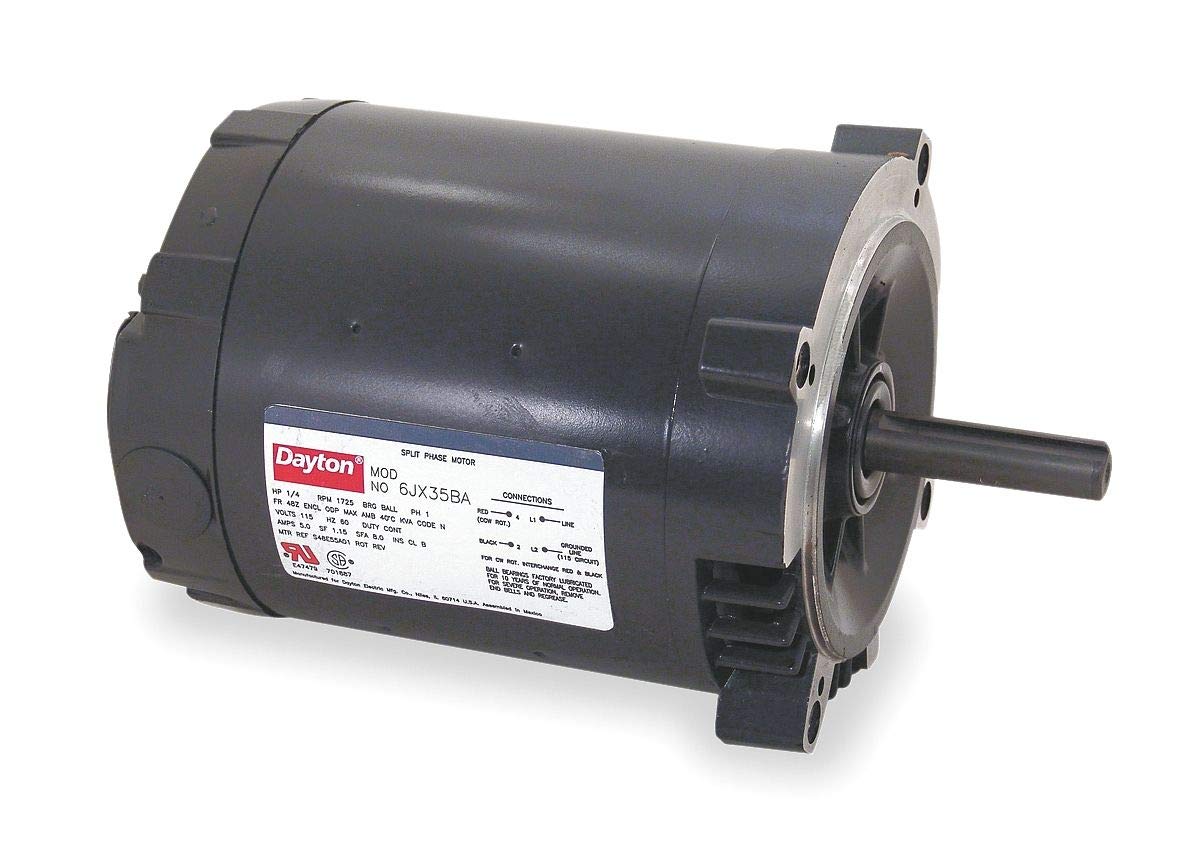

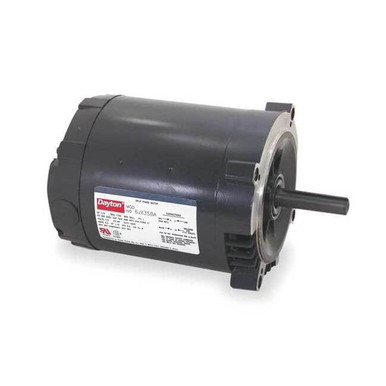

Belt Drive Mtr, SplitPh, ODP, 1/3HP, 1725rpm

NEMA service factors up to 1.40 provide a reserve margin for applications where intermittent overloading or fluctuating (high/low) voltage conditions may occur. Provides direct replacement in many Jenn-Air and similar commercial kitchen exhaust ventilators. For use in exhaust ventilators in commercial cooking areas and other moderate-starting torque equipment that can be directly connected to a NEMA 56CZ face-mounted motor.<br /><br /> Item: Belt Drive Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Belt Drive Fan/Blower<br /> Motor Design: Split-Phase<br /> HP: 1/3<br /> No. of Speeds: 1<br /> Nameplate RPM: 1725<br /> Voltage: 115<br /> Frame: 56CZ<br /> Motor Enclosure Design: Open Dripproof<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: All Angle<br /> Hz: 60<br /> Full Load Amps: 5.8<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Motor Shaft Design: Keyed<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-7/16"<br /> Duty: Continuous<br /> RPM Range: 1701-1800<br /> Phase: 1<br /> Manufacturers Warranty Length: 1 yr.<br /> Standards: UL Recognized, CSA Certified, CE<br />
