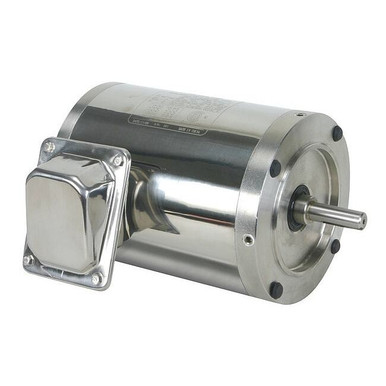

Washdown Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,155, Voltage 208-230/460V AC, Full Load Amps 3.8-3.7/1.85, 56C Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face, Motor Frame Material Stainless Steel, Endshield Material 300 Series Stainless Steel

This motor was designed to be used in applications such as the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Nonventilated<br /> HP: 3/4<br /> Nameplate RPM: 1155<br /> Frame: 56C<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 208-230/460<br /> Full Load Amps: 3.8-3.7/1.85<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Type: Face<br /> Motor Bearings: Ball<br /> Motor Frame Material: Stainless Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Motor Shaft Design: Keyed<br /> Overall Length: 11-5/16"<br /> Ins. Class: F<br /> RPM Range: 1101-1200<br /> Duty: Continuous<br /> Shaft Material: 300 Series Stainless Steel<br /> Drain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)<br /> Endshields: 300 Series Stainless Steel<br /> Motor Efficiency Group: Energy Efficient<br /> Nominal Efficiency: 80.0%
