Dayton

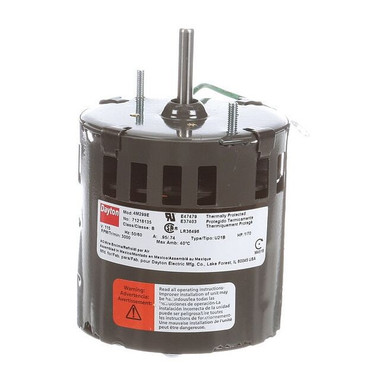

Dayton . 71218135M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku4M299
UnitOfMeasureEA
Voltage, Voltage @ 50Hz115V AC
Weight2.5
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height4.5
jsonUrlData924526ffbdad25e5923b
length7.2
moq, multiple, tierMinQty1, Number of Speeds, Number of Shafts, No of Speeds, Motor Service Factor, Service Factor @ 50Hz1
MPN71218135M
qtyInStock48
qtyInStockOverride-2
SKUG0250932
tierPrice152.45
urlhttps://www.zoro.com/dayton-hvac-motor-170-hp-3000-rpm-115v-33-71218135m/i/G0250932/
width5.8
Nameplate RPM, RPM @ 50Hz3,000 RPM
Motor Enclosure DesignOpen Air-Over
HP, HP @ 50Hz1/70
RPM Range1,801-3,000
Hz60/50 Hz
Duty, Duty CycleContinuous
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor BearingsSleeve
Motor Mounting Type, MountingStud
StandardsCSA Certified, UL Recognized
Stud/Base Mtg Pattern2-7/8 in
Mounting Stud Location2/Shaft End
Frame3.3
PhaseSingle
Ins ClassB
Mounting Pattern2 7/8
Motor Shaft DesignRound
Cord Length12 in
Motor DesignShaded Pole
Shaft Length1 3/8 in
ApplicationOEM and Replacement Use In A Wide Variety of Fan and Blower
Body Dia3 5/16 in
Motor ApplicationHVAC/R
Full Load Amps, Full Load Amps @ 50Hz0.70
Max Ambient Temp40 Degrees C
Motor Thermal ProtectionAuto
Motor Sub ApplicationDirect Drive Fan/Blower
Length Less Shaft3 1/2 in
ItemHVAC Motor
Shaft Dia1/4 in
Motor Shaft RotationCWSE
Capacitor Required, Usable @ 200V, Usable @ 208VNo
Mounting Stud Pattern2 7/8 in
Motor Mounting PositionAll Angle
TypeOEM Replacement
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG025093214811 @ $52.45
Grainger4M29911
simsupply.comCU-344D32393913511 @ $79.93
simsupply.comZO-G025093214211 @ $63.05
