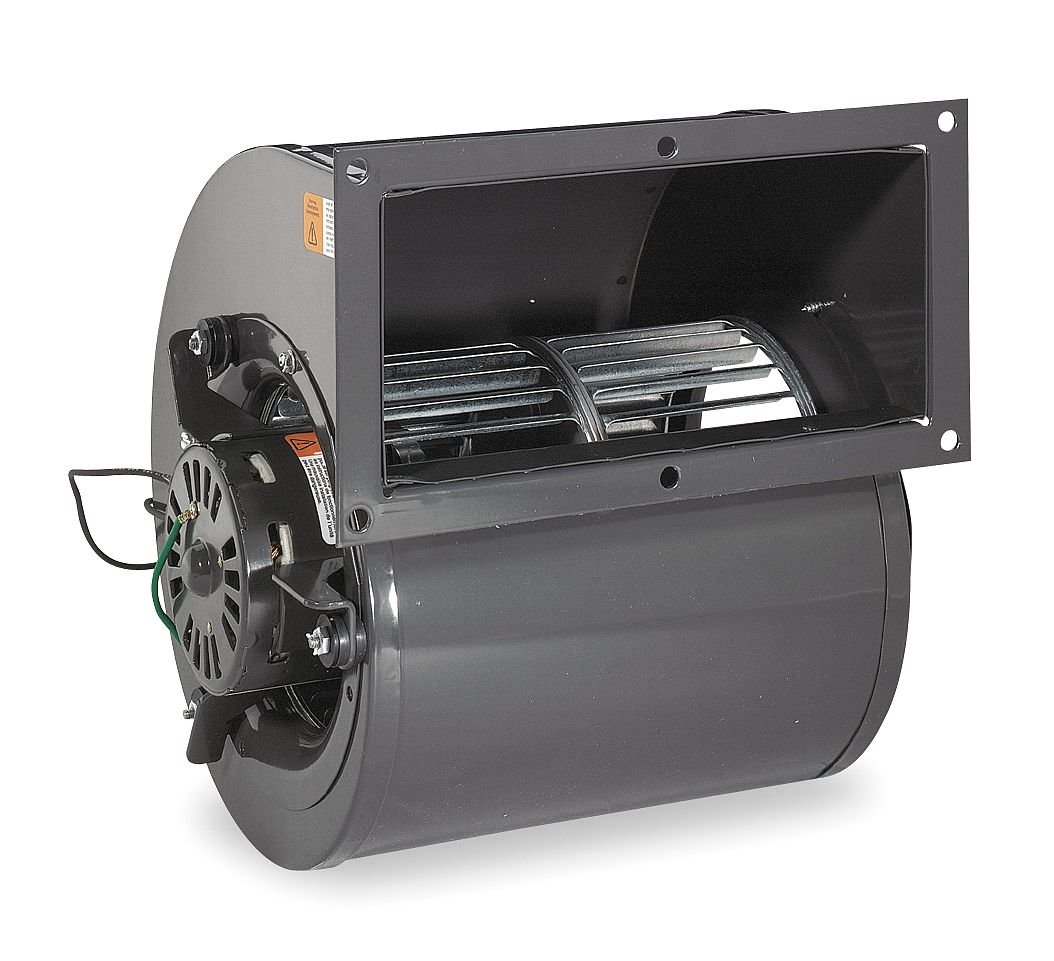

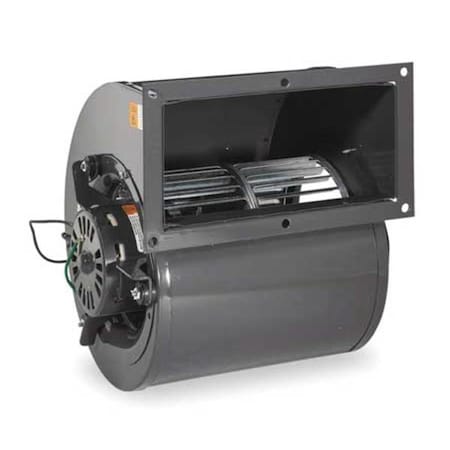

Rectangular OEM Blower, 1530 RPM, 1 Phase, Direct, Steel

Dayton . 70635176

Gallery

Attributes

Brand name, Manufacturer nameDayton
ManufacturerDayton CAI - DAYTON
CategoryId5000
DimensionUnitinch
GraingerSku6FHY0
Extra Product NameRectangular OEM Blower, 1530 RPM, 1 Phase, Direct, Steel
UPC190735362532
UnitOfMeasureEA
Weight9.4 0.000625 0.57 10.00 9.40
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Contains_liquid_contents, Is_expiration_dated_product, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height9.5
jsonUrlData924526ffbdad25e5923b
length11
moq, multiple, tierMinQty1, Number of Speeds, Phase, Number of Inlets, Item_package_quantity, NumberOfItems, Number_of_boxes, Number_of_items, PackageQuantity1
MPN, Keyword, Model, Mpns, PartNumber, Part_number, Sku, StrippedMpns70635176
qtyInStock20
qtyInStockOverride-2
SKUG0939976
tierPrice1143.99
urlhttps://www.zoro.com/dayton-rectangular-oem-blower-1530-rpm-1-phase-direct-steel-70635176/i/G0939976/
width10.9
Inlet Dia4 9/16 in
Overall Height9 13/16 in
Overall Width8 3/4 in
Blower Wheel Diameter, Wheel Diameter5 1/4 in
Dimension E, Lead Length12 in
Outlet Width8 1/6 in
Dimension C9 1/4 in
Dimension M4 3/8 in
Overall Depth, Dimension L, Dimension A8 13/16 in
Dimension K5 in
Dimension F3 5/16 in
Dimension B9 7/8 in
Dimension J9 15/32 in
Outlet Height3 5/8 in
Blower Wheel Width, Wheel Width6 7/8 in
Dimension D8 3/32 in
Inlet Diameter4 1/2 in
Wheel Dimensions5 1/4 in Dia. x 6 7/8 in W
Flange Size9 15/32 in W x 5 in H
Outlet Size3 5/8 in x 8 in
Manufacturer Warranty Length1 yr Limited
Outlet DiameterNot Applicable
CFM @ 0 100-In SP428
Drive TypeDirect
Full Load Amps2.90/3.70
Housing Material, Wheel Material, MaterialTypeSteel
Blower ItemOEM Specialty Blower
Blower Outlet Shape, Outlet Shape, Outlet Shape_broadRectangular
With Flange, Includes Motor, Includes Drive PackageYes
Blower Motor Type, Motor TypeShaded Pole
Blower Voltage, Nominal Voltage115V AC
Blower Thermal ProtectionAuto
Blower Conduit BoxNo
CFM @ 0 150-In SP411
CFM @ 0 400-In SP305
CFM @ 0 600-In SP125
Agency ComplianceCSA Certified, UL Component Recognized
Motor InsulationClass B
Not For Use WithNot Intended For Use As Inline Blowers For Wood Burners
Mounting Position, Mount TypeAll Position
Max Ambient Temp, Max Inlet Temp, Maximum Ambient Temperature, Maximum Inlet Air Temperature104 Degrees F
ItemOEM Blower
CFM @ 0 200-In SP396
CFM @ 0 000-In SP465
RPM1530
Wheel TypeForward Curve
CFM @ 0 500-In SP227
Replaces, Replacement For4C448
Bearing TypeSleeve
Housing Finish, Housing Material FinishBaked Enamel
Motor EnclosureOpen Dripproof
Hz50/60
Housing ColorGray
CFM @ 0 300-In SP352
MaterialSteel Wheel & Steel Housing Steel
Maximum Fan Speed, Motor Speed1,530 RPM
Motor Horsepower1/15 hp
Motor Enclosure Design_TableOpen Motor
RotationCW
Airflow @ 0 000 in SP465 cfm
Airflow @ 0 100 in SP428 cfm
Mounting OrientationMultiposition
Maximum Static Pressure3/4 in wc
Flange Type_broadFlanged Outlet
Motor Insulation ClassB
Airflow @ 0 500 in SP Range0 to 999 cfm
Minimum Ambient Temperature40 Degrees C
For Fan Speed (Dependent on Motor)1,500 RPM to 1,530 RPM
Airflow @ 0 250 in SP420 cfm
Airflow @ 0 500 in SP227 cfm
StandardsCSA Certified, UL Listed
Electrical ConnectionWire Leads
Motor Enclosure DesignOpen Dripproof (ODP)
Inlet TypeSingle-Inlet
Minimum Fan Speed1,500 RPM
Current2.90/3.7 A
Number of Discharge Positions4
ASIN, AsinB007ICVJC6 B07HM7J6H4 B098VRN3QH
Amount168.99
BindingMisc.
Brand, Label, Publisher, StudioCAI - DAYTON Dayton
Bullet_pointCountry of Origin: United States Manufacturer: Dayton Ventilation Equipment and Supplies
ClassificationId16310161 7459504011
CurrencyCodeUSD
DisplayNameCategories Safety Footwear
Height2.0 2.00 410 456 68 9.5 9.50 961
Identifier0190735362532 0696333238144 190735362532 696333238144
IdentifierTypeEAN UPC
Included_componentsUnit^Instruction Guide
ItemClassificationBASE_PRODUCT
ItemName, Item_nameBlower,465 cfm,115V,2.90/3.70A,1530 RPM Dayton Rectangular Shaded Pole OEM Specialty Blower, Flange: Yes, Wheel Dia: 5-1/4", 115VAC
Item_package_weight9.4
Item_type_keywordindustrial-products protective-safety-boot-and-shoe-liners
Length11 11.0 11.00 2.0 2.00
Linkhttps://m.media-amazon.com/images/I/41SlvLq0-PL._SL75_.jpg https://m.media-amazon.com/images/I/41SlvLq0-PL.jpg https://m.media-amazon.com/images/I/41XDb2D1KkL._SL75_.jpg https://m.media-amazon.com/images/I/41XDb2D1KkL.jpg https://m.media-amazon.com/images/I/71M-A8XxrjL.jpg
Package_levelunit
ProductCategoryId720594011 biss_display_on_website
ProductGroupBISS BISS Basic
ProductTypeMECHANICAL_COMPONENTS SAFETY_SUPPLY
ProductTypeNameMECHANICAL_COMPONENTS SAFETY_SUPPLY TOOLS
Product_descriptionThis OEM blower features a rectangular outlet shape and is designed with a flange. It features a shaded-pole motor and an open dripproof motor enclosure. It offers all-position mounting. Steel housing material with baked enamel housing finish.<br /><br /> Item: OEM Blower<br /> Blower Outlet Shape: Rectangular<br /> With Flange: Yes<br /> Blower Wheel Diameter: 5-1/4"<br /> Blower Wheel Width: 6-7/8"<br /> Blower Item: OEM Specialty Blower<br /> Blower Voltage: 115VAC<br /> Blower Motor Type: Shaded Pole<br /> Blower Thermal Protection: Auto<br /> Blower Conduit Box: No<br /> CFM @ 0.000-In. SP: 465<br /> CFM @ 0.100-In. SP: 428<br /> CFM @ 0.150-In. SP: 411<br /> CFM @ 0.200-In. SP: 396<br /> CFM @ 0.300-In. SP: 352<br /> CFM @ 0.400-In. SP: 305<br /> CFM @ 0.500-In. SP: 227<br /> CFM @ 0.600-In. SP: 125<br /> Hz: 50/60<br /> Phase: 1<br /> Full Load Amps: 2.90/3.70<br /> RPM: 1530<br /> Bearing Type: Sleeve<br /> Motor Enclosure: Open Dripproof<br /> Motor Insulation: Class B<br /> Lead Length: 12"<br /> Max. Ambient Temp.: 104 Degrees F<br /> Max. Inlet Temp.: 104 Degrees F<br /> Inlet Dia.: 4-9/16"<br /> Outlet Height: 3-5/8"<br /> Outlet Width: 8-1/6"<br /> Overall Height: 9-13/16"<br /> Overall Width: 8-3/4"<br /> Overall Depth: 8-13/16"<br /> Wheel Type: Forward Curve<br /> Drive Type: Direct<br /> Mounting Position: All Position<br /> Housing Finish: Baked Enamel<br /> Housing Material: Steel<br /> Housing Color: Gray<br /> Agency Compliance: UL Component Recognized, CSA Certified<br /> Replaces: 4C448<br /> Not For Use With: Not Intended For Use As Inline Blowers For Wood Burners<br />
Product_site_launch_date2018-09-24T02:04:26.324Z 2021-07-07T21:10:45.014Z
Rank162414 188 244 60 604732 694974
Supplier_declared_dg_hz_regulationnot_applicable
TitleBlower, 465 cfm, 115V, 2.90/3.70A, 1530 rpm Blower,465 cfm,115V,2.90/3.70A,1530 RPM Dayton Rectangular Shaded Pole OEM Specialty Blower, Flange: Yes, Wheel Dia: 5-1/4", 115VAC
Typeean upc
URLhttp://ecx.images-amazon.com/images/I/41SlvLq0-PL._SL75_.jpg http://ecx.images-amazon.com/images/I/41ymwPGQsXL._SL75_.jpg https://m.media-amazon.com/images/I/41SlvLq0-PL._SL75_.jpg https://m.media-amazon.com/images/I/41XDb2D1KkL._SL75_.jpg https://m.media-amazon.com/images/I/41ymwPGQsXL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width10.9 10.90 1054 2.0 2.00 450 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG093997612011 @ $143.99
AmazonTPB007ICVJC6111 @ $140.48
AmazonB007ICVJC611
sustainablesupply.comC11406251-211 @ $168.37
simsupply.comZO-G0939976115611 @ $191.88
