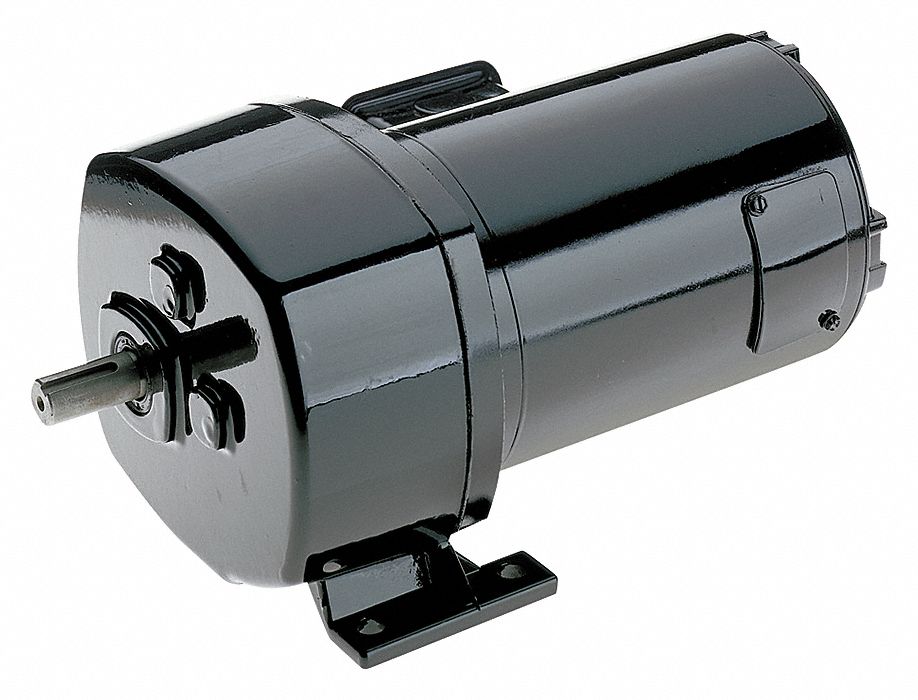

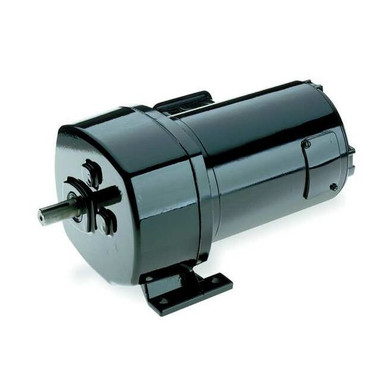

DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 43 RPM, Maximum Torque 353 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 41:1, Input Horsepower 1/4 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case

Dayton . 6Z409

Gallery

Attributes

Brand name, Manufacturer name, Brand, ManDayton
ManufacturerDayton DAYTON
CategoryId, CategoryIdL310379
CategoryIdL138
CategoryIdL26005
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Gearmotors
CategoryL4AC Gear Motors
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, ModelNumber, Model_number, PartNumber, Part_number6Z409
UPC190735374269 663001412960
UnitOfMeasureEA
Weight27.9 1.74 28.00 32.0 32.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height8.9
jsonUrlData924526ffbdad25e5923b
length19.4
moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, PackageQuantity1
qtyInStock7
qtyInStockOverride-2
SKUG0313546
tierPrice1923.99
urlhttps://www.zoro.com/dayton-dc-gearmotor-3530-in-lb-max-torque-43-rpm-nameplate-rpm-90v-dc-voltage-6z409/i/G0313546/
width9.6
EAN, EANList, UPCList663001412960
Product GroupHome Improvement
Length Less Shaft11 3/4 in
Shaft Length (Dimension V)1-1/2"
Shaft Dia (Dimension U)3/4"
Overall Width8.13 in
Overall Height6.63 in
Output Shaft Length1 1/2 in
Mount Hole Center-to-Center Width7.13 in
Keyway Width1/8 in
Mount Hole Center-to-Center Length2.5 in
Keyway Depth3/16 in
Output Shaft Diameter3/4 in
Output Shaft Height3 in
Item, Gearmotor TypeDC Gearmotor
Gearmotor Voltage90V DC
Max Torque353.0 in-lb
Gearmotor Shaft TypeSingle
Gearmotor Shaft OrientationParallel
Nameplate RPM43 RPM
Gearmotor EnclosureTotally Enclosed Nonventilated
Gearmotor RotationCW/CCW
Gearmotor Mounting PositionAll Angle
Full Load Amps2.7 A
StandardsC-UL Recognized, UL Recognized
ASIN, AsinB000BJ4196 B000CDOSHG
Amount1012.99
BindingMisc.
Bullet_point1/4 hp, 43 RPM, 2.70 amps, 90 Volts DC One Year Manufacture Warranty Over Hung Pounds = 325 Rotation = Reversible; TENV; Shaft 3/4" x 1 3/4" Torque 353 inch pounds
CatTools & Home Improvement
CatId228013
CatTree228013 3753381 468240 495266
ClassificationId6372402011
CurrencyCodeUSD
DisplayNamePermanent Magnet Motors
Feature1/4 hp, 43 RPM, 2.70 amps, 90 Volts DC
Height403 500 60 75 8.9 8.90 818
Horsepower0.25
Identifier0663001412960 663001412960 7431287586599
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGearmotor, 43 RPM, 90vdc
Item_type_keywordpermanent-magnet-motors
Item_weight1.74 32.0
Label, Publisher, StudioDAYTON Dayton
Length19.4 19.40
Linkhttps://m.media-amazon.com/images/I/417Lr+EOekL._SL75_.jpg https://m.media-amazon.com/images/I/417Lr+EOekL.jpg https://m.media-amazon.com/images/I/41oQBSd14iL._SL75_.jpg https://m.media-amazon.com/images/I/41oQBSd14iL.jpg https://m.media-amazon.com/images/I/61s5kgCCLHL.jpg
MaterialTypeHAWA
Model_namegearmotor
ProductCategoryId6372402011 home_improvement_display_on_website
ProductGroupBISS Basic Home Improvement
ProductTypeELECTRIC_MOTOR
ProductTypeNameELECTRIC_MOTOR HARDWARE HOME_LIGHTING_ACCESSORY
Product_site_launch_date2010-09-09T13:04:17.436Z 2020-02-17T10:03:44.946Z
Rank4266 4271881
Speed43.0
Supplier_declared_dg_hz_regulationunknown
Typeean upc
URLhttps://m.media-amazon.com/images/I/417Lr+EOekL._SL75_.jpg https://m.media-amazon.com/images/I/41oQBSd14iL._SL75_.jpg
Unithorsepower inches pounds rpm volts
Unitsinches pixels pounds
VariantMAIN
Voltage90.0
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1015 500 75 9.6 9.60

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG03135461711 @ $923.99
Grainger6Z40911
Raptor SuppliesAF2YAU111 @ $1272.55
AmazonTPB000CDOSHG111 @ $1090.72
sustainablesupply.comC16998811-211 @ $1011.37
emotorpro.com6Z4091-211 @ $1070.00
grainger.caDTN6Z409111 @ $1296.93
simsupply.comZO-G03135461111 @ $1093.50

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Gearmotor, 43 RPM, 90vdc
Brand: Dayton
Details
  • 1/4 hp, 43 RPM, 2.70 amps, 90 Volts DC
  • Torque 353 inch pounds
  • Rotation = Reversible; TENV; Shaft 3/4" x 1 3/4"
  • Over Hung Pounds = 325
  • One Year Manufacture Warranty
