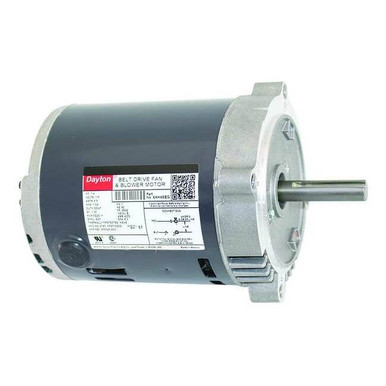

NEMA service factors up to 1.40 provide a reserve margin for applications where intermittent overloading or fluctuating (high/low) voltage conditions may occur. Provides direct replacement in many Jenn-Air and similar commercial kitchen exhaust ventilators. For use in exhaust ventilators in commercial cooking areas and other moderate-starting torque equipment that can be directly connected to a NEMA 56CZ face-mounted motor.<br /><br /> Item: Belt Drive Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Belt Drive Fan/Blower<br /> Motor Design: Split-Phase<br /> HP: 1/4<br /> No. of Speeds: 1<br /> Nameplate RPM: 1725<br /> Voltage: 115<br /> Frame: 56CZ<br /> Motor Enclosure Design: Open Dripproof<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: All Angle<br /> Hz: 60<br /> Full Load Amps: 8.6<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Motor Shaft Design: Keyed<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-1/4"<br /> Duty: Continuous<br /> RPM Range: 1701-1800<br /> Phase: 1<br /> Manufacturers Warranty Length: 1 yr.

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 8.6 Full Load Amps, 56CZ Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in, Shaft Length 2 1/4 in
