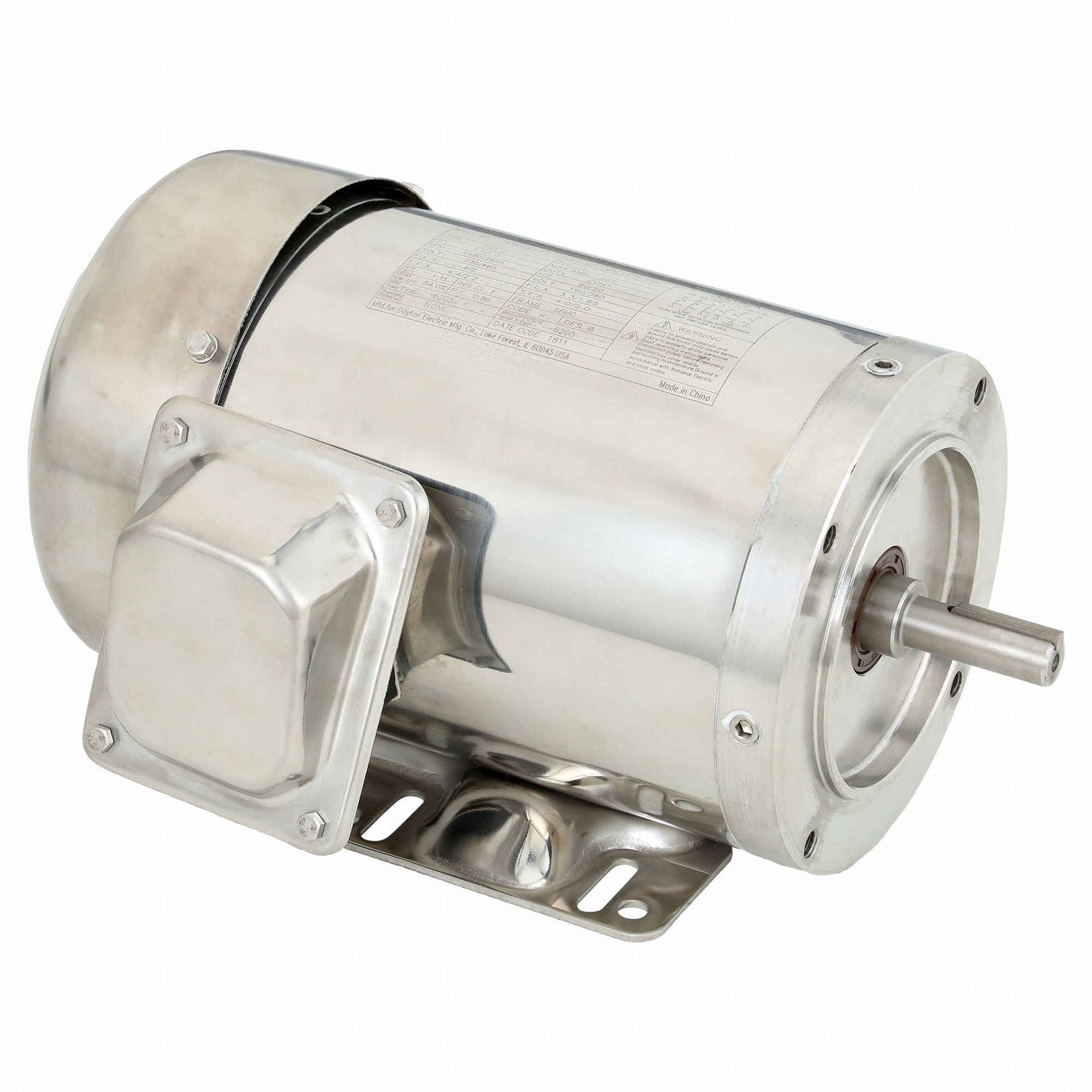

Washdown Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 3,480, Voltage 230/460V AC, Full Load Amps 4.0/2.00, 56HC Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Frame Material Stainless Steel, Endshield Material 300 Series Stainless Steel

Dayton . 6WY44

Gallery

Attributes

Brand name, Manufacturer nameDayton
ManufacturerDayton CAI - DAYTON DAYTON
CategoryId, CategoryIdL36485
CategoryIdL138
CategoryIdL29908
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3DC Motors
CategoryL4DC Washdown Motors
DimensionUnitinch
GraingerSku, MPN, Part Number, Mpns, PartNumber, Part_number, StrippedMpns6WY44
UPC190735372302
UnitOfMeasureEA
Voltage230/460V AC 460.0
Weight45.3 2.83 45.30
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginCN
height10.5
jsonUrlData924526ffbdad25e5923b
length15.2
moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, PackageQuantity1
qtyInStock7
qtyInStockOverride-2
SKUG0730581 6WY44
tierPrice1626.99
urlhttps://www.zoro.com/dayton-washdown-mtr-3-ph-tefc-1-12-hp-3480-rpm-6wy44/i/G0730581/
width11.5
Product GroupBISS
Shaft Dia5/8 in
Shaft Length1 7/8 in
Overall Length13 1/4 in
ItemWashdown Motor
Motor Design3-Phase
PhaseThree
HP1 1/2
RPM Range3,001-3,600
Frame56HC
Motor Frame Material, MaterialStainless Steel
Motor Thermal ProtectionNone
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Inverter RatedYes
Hz60
Footnotes2
Motor Mounting TypeFace/Base
Motor Service Factor1.15
CC NumberCC082A
StandardsCE Compliant, CSA Certified, UL Component Recognized
Nominal Efficiency84 %
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Nameplate RPM3,480
ASINB001GBT7KQ B07J28QGPJ
Amount577.00
AsinB000LEZ834 B001GBT7KQ B07J28QGPJ
BindingMisc.
BrandCAI - DAYTON Dayton
Bullet_pointBODY:TOTALLY ENCLOSED FAN-COOLED / MOUNTING:FACE/RIGID BASE MOTOR OVERALL LENGTH:13-1/4" RPM:3480 / 1-SPEED / ROTATION:REVERSIBLE / DUTY:CONTINUOUS SHAFT:5/8"KEY X 1-7/8" VOLTAGE:208-230/460 / PHASE:3 / HERTZ:50/60 / AMPS:4.2-4.4/2.2 / FRAME:56HC
CatIndustrial & Scientific Tools & Home Improvement
CatId16310091 228013
CatTree16310091 16310161 228013 3753381 468240 495266
CatalogNumberListZO G0730581
ClassificationId16310161 6372402011
ColorSEE PICTURE
Currency, CurrencyCodeUSD
DisplayNameCategories Permanent Magnet Motors
FeaturePrice For: Each Motor Service Factor: 1.15 Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Motor Enclosure Design: Totally Enclosed Fan-Cooled Item: Washdown Motor Phase: 3 Ins. Class: F Max. Ambient Temp.: 40 Degrees C Motor Application: Washdown HP: 1-1/2 Motor Thermal Protection: None Motor Design: 3-Phase Duty: Continuous
Height2.0 2.00 348 52 752
Horsepower1.5
Identifier0696334261035 696334261035 7439131271585
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameDayton 1-1/2 HP Washdown Motor,3-Phase,3480 Nameplate RPM,230/460 Voltage,Frame 56HC Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3480 RPM
Item_package_weight, Item_weight45.3
Item_type_keywordindustrial-products permanent-magnet-motors
Keyword6WY44 G0730581
Label, Publisher, StudioCAI - DAYTON DAYTON Dayton
Length2.0 2.00
Linkhttps://m.media-amazon.com/images/I/41QzNWpK7CL._SL75_.jpg https://m.media-amazon.com/images/I/41QzNWpK7CL.jpg https://m.media-amazon.com/images/I/41T4Wfi+ZmL._SL75_.jpg https://m.media-amazon.com/images/I/41T4Wfi+ZmL.jpg https://m.media-amazon.com/images/I/61JtdsD-KPL.jpg https://m.media-amazon.com/images/I/61VsMaNVXdL.jpg
List_price577.0
ManDAYTON Dayton
MaterialTypeOTHER Stainless Steel
ProductGroupBISS BISS Basic
ProductTypeELECTRIC_MOTOR
ProductTypeNameELECTRIC_MOTOR ELECTRONIC_COMPONENT MECHANICAL_COMPONENTS
Product_description1-1/2HP WASHDOWN MOTOR.VOLTAGE:208-230/460,PHASE:3,HERTZ:50/60,AMPS:4.2-4.4/2.2,FRAME:56HC,MOUNTING:FACE/RIGID BASE,BEARING:BALL,BODY:TOTALLY ENCLOSED FAN-COOLED,RPM:3480/1-SPEED,ROTATION:REVERSIBLE,SHAFT:5/8"KEY X 1-7/8",SHAFT MATERIAL:300 SERIES STAINLESS STEEL,DUTY:CONTINUOUS,MOTOR OVERALL LENGTH:13-1/4",WEIGHT:41.80 POUNDS,(MADE IN CHINA)BULK. Being sold as new and unused with no warranty or guarantee. This motor was designed to be used in applications such as the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1-1/2<br /> Nameplate RPM: 3480<br /> Frame: 56HC<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 4.0/2.0<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Stainless Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Motor Shaft Design: Keyed<br /> Overall Length: 13-1/4"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Shaft Material: 300 Series Stainless Steel<br /> Drain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)<br /> Endshields: 300 Series Stainless Steel<br /> Motor Efficiency Group: Premium Efficient<br /> Nominal Efficiency: 84.0%
Product_site_launch_date2009-05-14T19:05:34-00:00 2018-10-05T04:24:55.719Z
Speed3480.0
Supplier_declared_dg_hz_regulationunknown
TitleDayton 1-1/2 HP Washdown Motor,3-Phase,3480 Nameplate RPM,230/460 Voltage,Frame 56HC Dayton 6WY44 Motor, 1.5 HP, Washdown Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3480 RPM Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3480 rpm
Typeean upc
URLhttps://m.media-amazon.com/images/I/41QzNWpK7CL._SL75_.jpg https://m.media-amazon.com/images/I/41T4Wfi+ZmL._SL75_.jpg
Unithorsepower inches pounds rpm volts
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width1080 2.0 2.00 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG07305811711 @ $626.99
Grainger6WY4411
Raptor SuppliesAF2PHJ111 @ $1029.73
grainger.caGGE6WY4411
sustainablesupply.comC15672211Add to Cart11 @ $835.00
emotorpro.com6WY441-211 @ $1107.46
simsupply.comZO-G0730581111 @ $797.67

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3480 rpm
Brand: Dayton
Catalog
FeaturePrice For: Each Motor Service Factor: 1.15 Motor Shaft Rotation: CW/CCW Motor Bearings: Ball Motor Enclosure Design: Totally Enclosed Fan-Cooled Item: Washdown Motor Phase: 3 Ins. Class: F Max. Ambient Temp.: 40 Degrees C Motor Application: Washdown HP: 1-1/2 Motor Thermal Protection: None Motor Design: 3-Phase Duty: Continuous
CategoryIndustrial & Scientific
MPN6WY44
Product groupBISS
Product typeELECTRONIC_COMPONENT
ManufacturerDAYTON
View on Amazon (paid link)
Washdown Mtr, 3 Ph, TEFC, 1-1/2 HP, 3480 RPM
Brand: Dayton
1-1/2HP WASHDOWN MOTOR.VOLTAGE:208-230/460,PHASE:3,HERTZ:50/60,AMPS:4.2-4.4/2.2,FRAME:56HC,MOUNTING:FACE/RIGID BASE,BEARING:BALL,BODY:TOTALLY ENCLOSED FAN-COOLED,RPM:3480/1-SPEED,ROTATION:REVERSIBLE,SHAFT:5/8"KEY X 1-7/8",SHAFT MATERIAL:300 SERIES STAINLESS STEEL,DUTY:CONTINUOUS,MOTOR OVERALL LENGTH:13-1/4",WEIGHT:41.80 POUNDS,(MADE IN CHINA)BULK. Being sold as new and unused with no warranty or guarantee.
Details
  • VOLTAGE:208-230/460 / PHASE:3 / HERTZ:50/60 / AMPS:4.2-4.4/2.2 / FRAME:56HC
  • RPM:3480 / 1-SPEED / ROTATION:REVERSIBLE / DUTY:CONTINUOUS
  • BODY:TOTALLY ENCLOSED FAN-COOLED / MOUNTING:FACE/RIGID BASE
  • SHAFT:5/8"KEY X 1-7/8"
  • MOTOR OVERALL LENGTH:13-1/4"
Listing
Product groupBISS Basic
Product typeELECTRIC_MOTOR
Part number6WY44
LabelDAYTON
ManufacturerDAYTON
Catalog
CategoryTools & Home Improvement
MPN6WY44
Product groupBISS
Product typeELECTRIC_MOTOR
ManufacturerDayton
View on Amazon (paid link)
Dayton 1-1/2 HP Washdown Motor,3-Phase,3480 Nameplate RPM,230/460 Voltage,Frame 56HC
Brand: CAI - DAYTON
This motor was designed to be used in applications such as the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1-1/2<br /> Nameplate RPM: 3480<br /> Frame: 56HC<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 4.0/2.0<br /> Phase: 3<br /> Hz: 60<br /> Motor Mounting Type: Face/Base<br /> Motor Bearings: Ball<br /> Motor Frame Material: Stainless Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Motor Shaft Design: Keyed<br /> Overall Length: 13-1/4"<br /> Ins. Class: F<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Shaft Material: 300 Series Stainless Steel<br /> Drain Plugs: 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)<br /> Endshields: 300 Series Stainless Steel<br /> Motor Efficiency Group: Premium Efficient<br /> Nominal Efficiency: 84.0%
Listing
Product groupBISS Basic
Product typeMECHANICAL_COMPONENTS
Part number6WY44
LabelCAI - DAYTON
ManufacturerCAI - DAYTON
View on Amazon (paid link)
