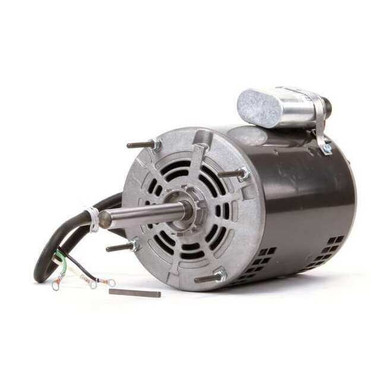

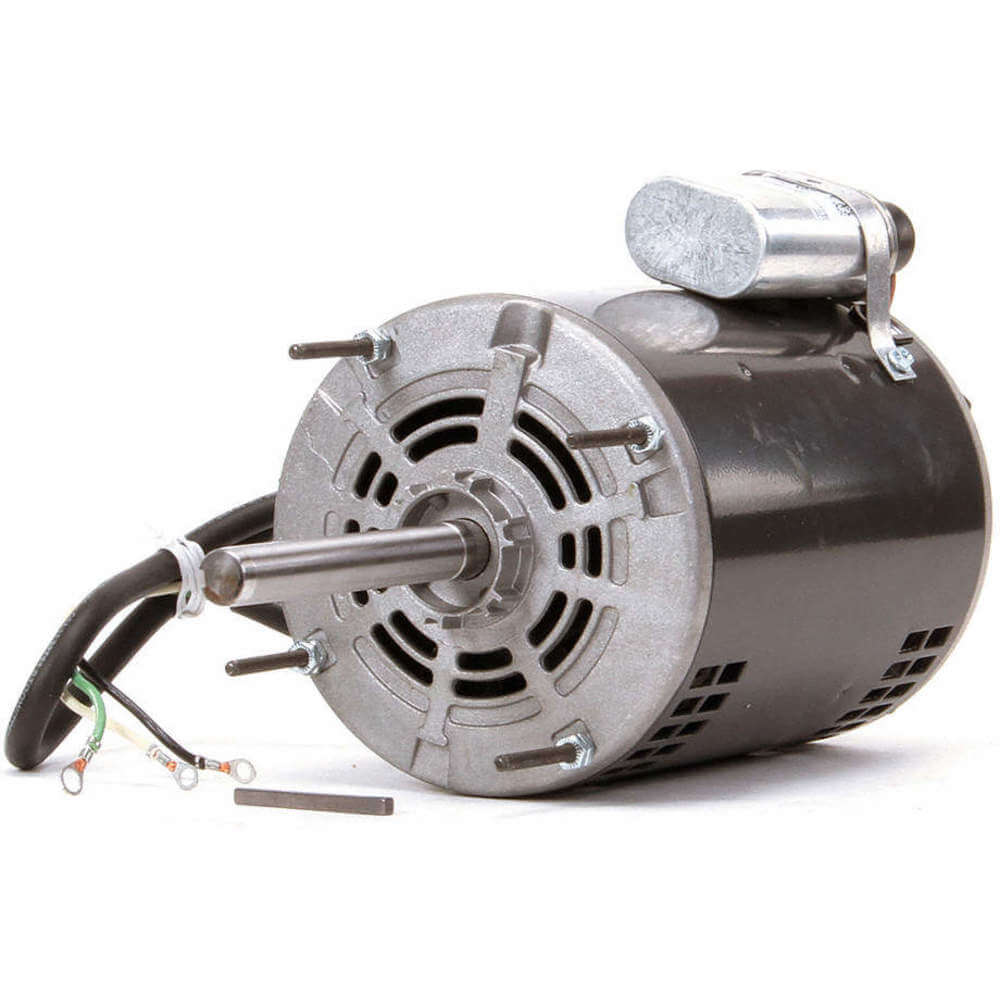

DAYTON, 1 Speed, Open Dripproof, Direct Drive Blower Motor - 6TWL4|6TWL4 - Grainger

Continuous Duty, Open Air Over, Class B Insulation. Replacement Motor for 4YC72 Dayton Ventilators.

Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/3<br /> Nameplate RPM: 1100<br /> Voltage: 115<br /> Full Load Amps: 4.7<br /> Hz: 60<br /> Phase: 1<br /> Frame: 56Z<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 1<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Nominal Efficiency: 59.5%<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 8-5/8"<br /> Overall Length: 12-7/8"<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 4-1/4"<br /> Motor Shaft Design: Keyed<br /> Capacitor Required: Included<br /> Resilient Ring Dia.: 2-1/4"<br /> Ring to Ring Center: 8-1/8"<br /> Mounting Stud Location: Shaft End<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: #10-32<br /> Mounting Stud Length: 1"<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1001-1100<br /> Standards: UL Recognized (E47479), CSA Certified (225293), CSA Certified Motor<br /> Manufacturers Warranty Length: 1 yr.
