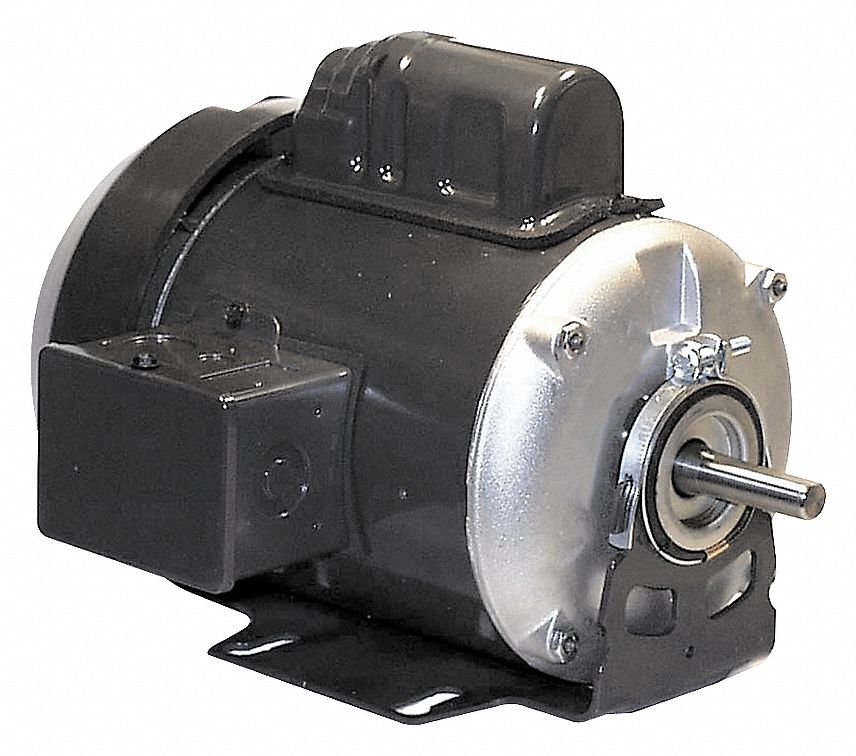

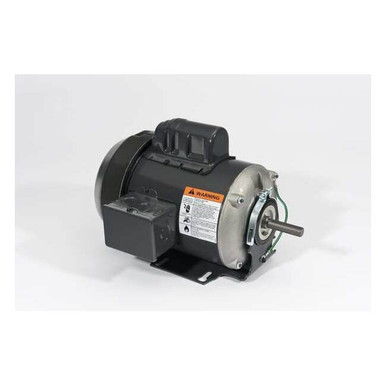

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.3/2.7, 48Z Frame, Hz 60, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel

This motor is suitable for use in dusty, dirty, and nonhazardous environments.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1/4<br /> Nameplate RPM: 1725<br /> Frame: 48Z<br /> Voltage: 115/230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 5.3/2.7<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.00<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 9-8/16"<br /> Overall Length: 11-1/2"<br /> Motor Shaft Design: Flat<br /> RPM Range: 1701-1800<br /> Standards: UL (E47479), CSA (258501)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 54.3%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
