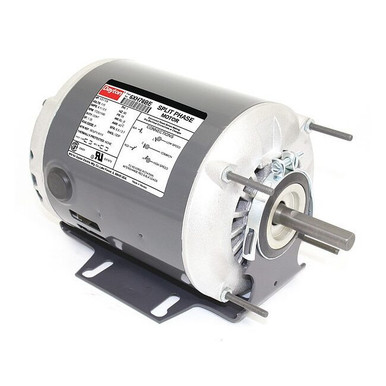

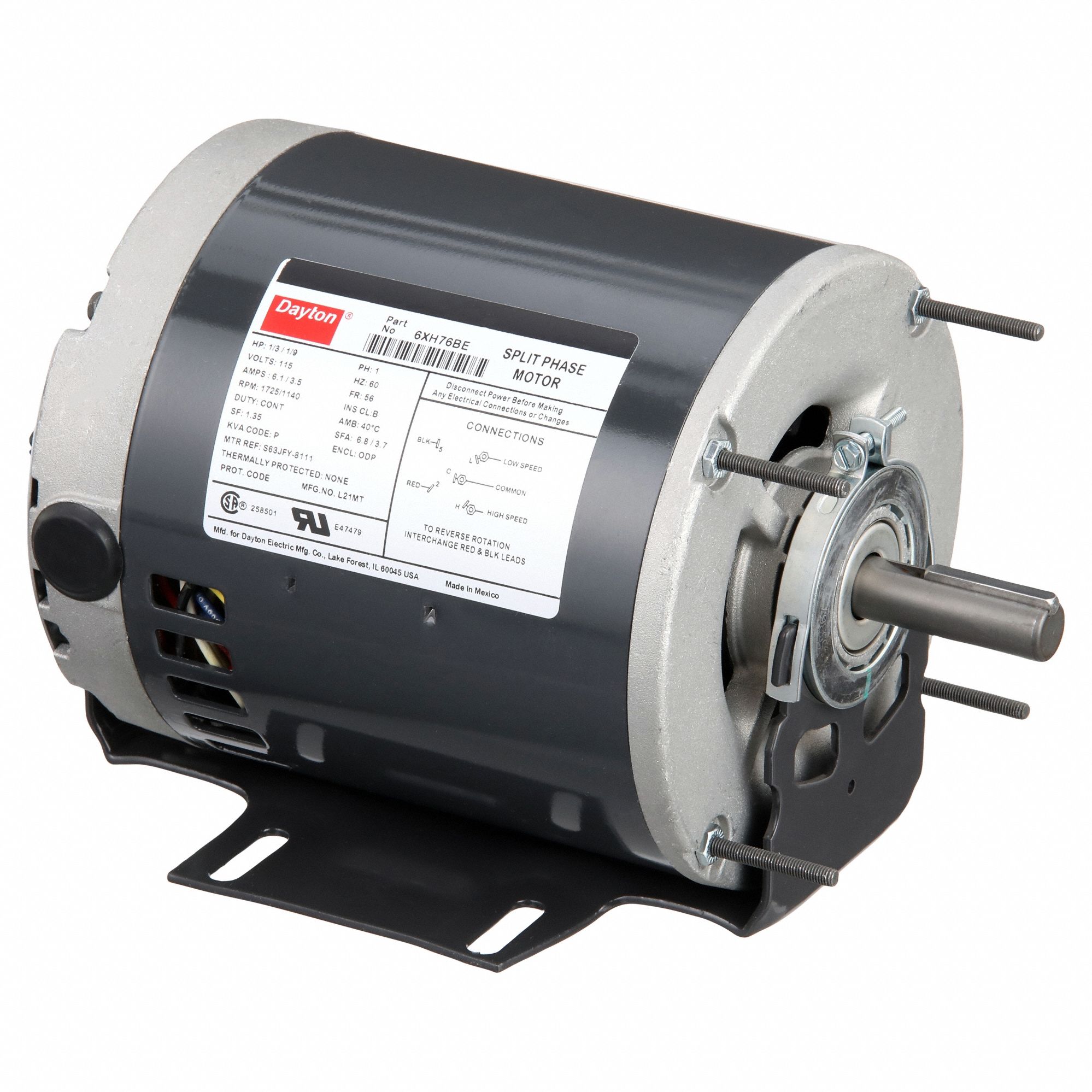

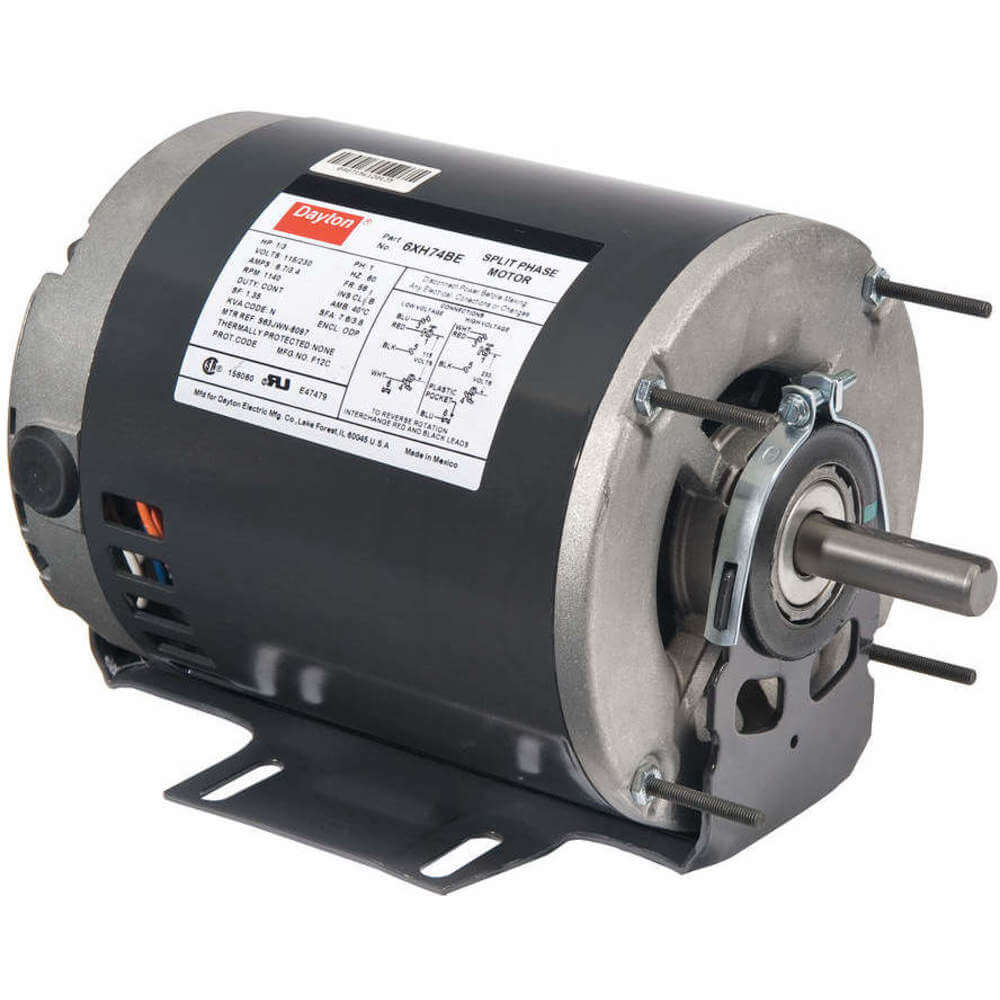

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 RPM, 56

Split-Phase Open Dripproof Base- and Cradle-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Insulation: Class BOpen dripproof motors are for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. NEMA 42 frame is supplied with a relay instead of a centrifugal switch; relay mounting clip is included.UL Recognized and CSA Certified.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Split-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/3, 1/9<br /> Nameplate RPM: 1725/1140<br /> Frame: 56<br /> Voltage: 115<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 6.1/3.5<br /> No. of Speeds: 2<br /> Motor Mounting Type: Cradle Base<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 8-7/16"<br /> Overall Length: 10-5/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E47479), CSA (156060)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 59.0/42.7%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
