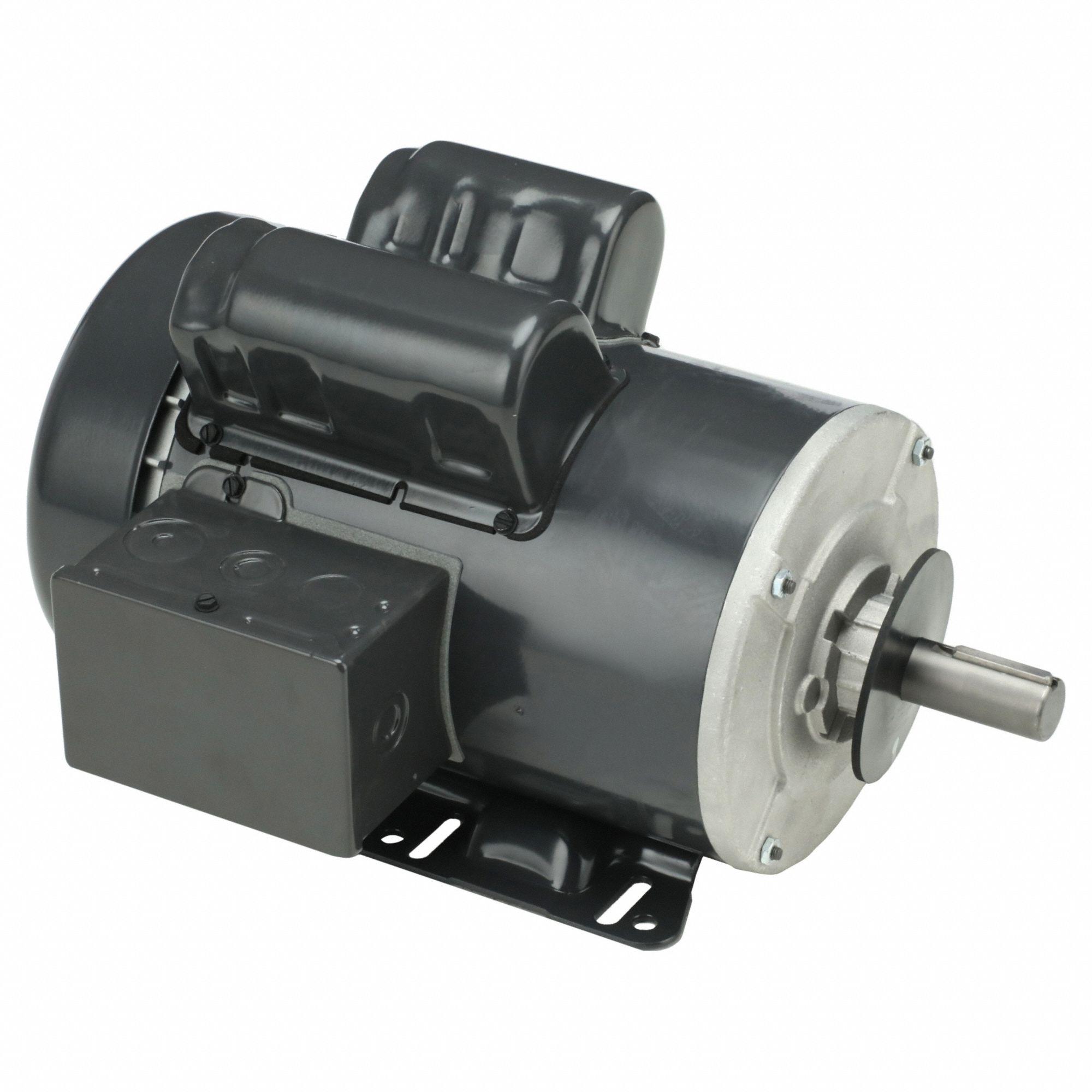

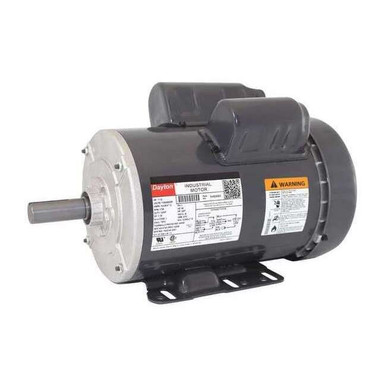

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8.0-7.2, 145T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed

General Purpose Motor, Capacitor-Start/Run, Totally Enclosed Fan-Cooled, 1-1/2 HP, Nameplate RPM 1725, 145T Frame, Voltage 115/208-230, 60 Hz, 1 Phase, 14.4/8.0-7.2 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Thermal Protection None, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 14-1/4 In., Motor Shaft Design Keyed

Capacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Totally Enclosed Fan-Cooled MotorsFor use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start/Run<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 1-1/2<br /> Nameplate RPM: 1725<br /> Frame: 145T<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 14.4/8.0-7.2<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: Horizontal<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 2-1/4"<br /> Length Less Shaft: 11-9/16"<br /> Overall Length: 14-1/4"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: UL (E47479), CSA (225293)<br /> Duty: Continuous<br /> Motor Efficiency Group: Energy Efficient<br /> Nominal Efficiency: 80.9%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
