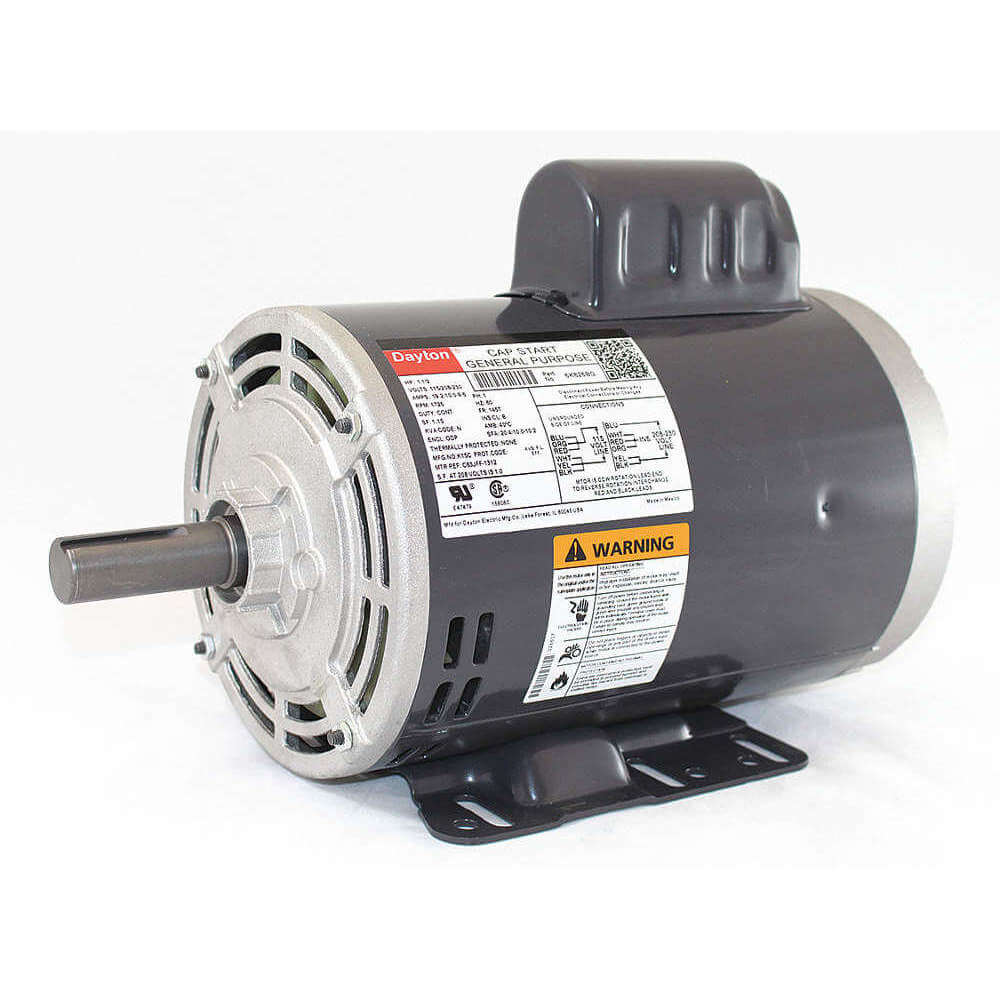

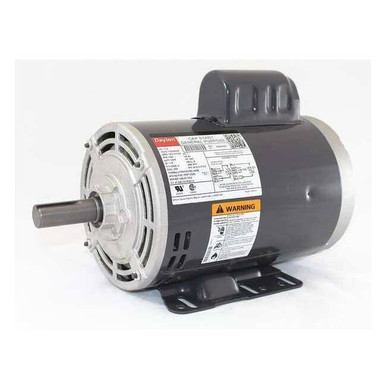

<p>General Purpose Motor, Capacitor-Start, Open Dripproof, 1-1/2 HP, Nameplate RPM 1725, 145T Frame, Voltage 115/208-230, 60 Hz, 1 Phase, 19.2/10.0-9.6 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class B, 1.15 Motor Service Factor, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 13-1/4 In., Motor Shaft Design Keyed</p><p><b>Specification: </b><ul><li>Item: General Purpose Motor</li><li>Frame Material: Steel</li><li>Frame: 145T</li><li>Full Load Amps: 19.2/10.0-9.6</li><li>Shaft Dia.: 7/8"</li><li>Motor Service Factor: 1.15</li><li>Motor Mounting Type: Rigid Base</li><li>Motor Mounting Position: All Angle</li><li>Phase: 1</li><li>No. of Speeds: 1</li><li>Ins. Class: B</li><li>Motor Bearings: Ball</li><li>Motor Design: Capacitor-Start</li><li>Voltage: 115/208-230</li><li>HP: 1-1/2</li><li>Motor Enclosure Design: Open Dripproof</li><li>Shaft Length: 2-5/16"</li><li>Length Less Shaft: 10-15/16"</li><li>Motor Efficiency Group: Standard Efficient</li><li>Overall Length: 13-1/4"</li><li>RPM Range: 1701-1800</li><li>Standards: NEMA MG1</li><li>Duty: Continuous</li><li>Nominal Efficiency: 74.0%</li><li>Motor Shaft Rotation: CW/CCW</li><li>Voltage Compatibility: 115, 120, 208, 230, 240, 115/208-230, 115/230, 120/240, 208-230, 208-240</li><li>RPM Group: 1701-1800</li><li>Motor Shaft Design: Keyed</li><li>Motor Application: General Application</li><li>Footnotes: 52</li><li>Nameplate RPM: 1725</li><li>Hz: 60</li><li>Max. Ambient Temp.: 40 Degrees C</li><li>Motor Thermal Protection: None</li><li>Manufacturers Warranty Length: 1 yr.</li></ul></p>

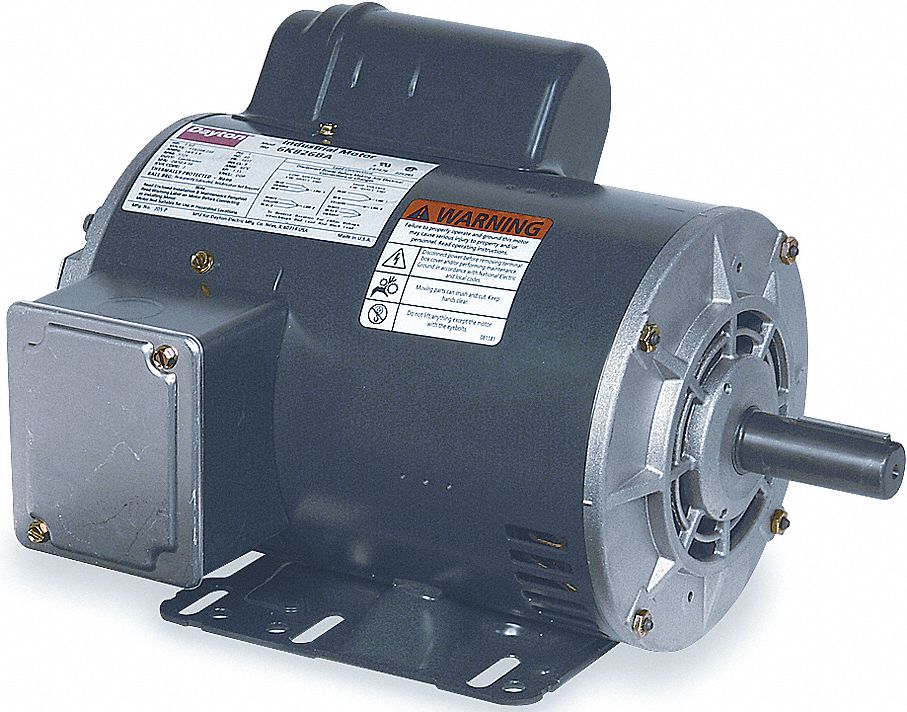

Capacitor-Start Base-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Bearing: ballUL Recognized and CSA Certified.Open Dripproof MotorsFor use in clean, dry, and nonhazardous environments. 1-1/2 HP and above feature side-mounted conduit box.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1-1/2<br /> Nameplate RPM: 1725<br /> Frame: 145T<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 19.2/10.0-9.6<br /> No. of Speeds: 1<br /> Motor Mounting Type: Rigid Base<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: None<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 7/8"<br /> Shaft Length: 2-5/16"<br /> Length Less Shaft: 10-15/16"<br /> Overall Length: 13-1/4"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 1701-1800<br /> Standards: NEMA MG1<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 74.0%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800<br />
