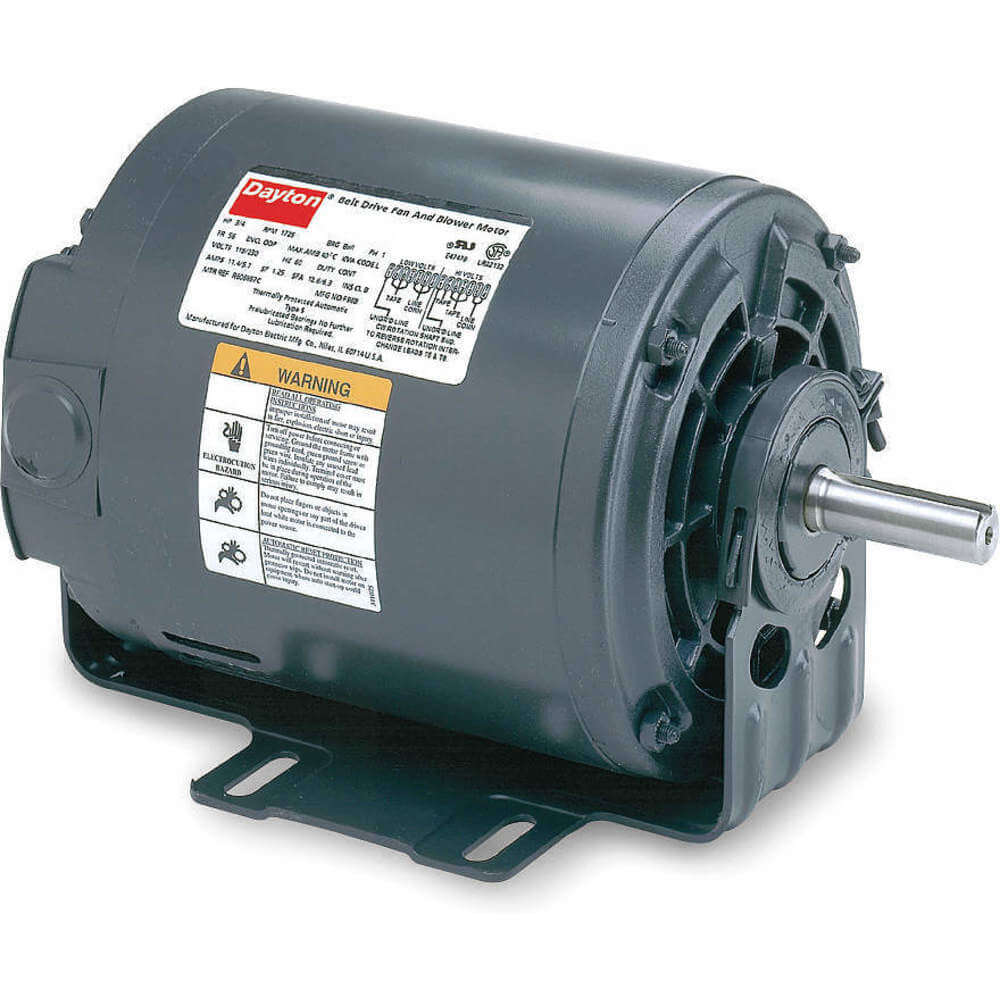

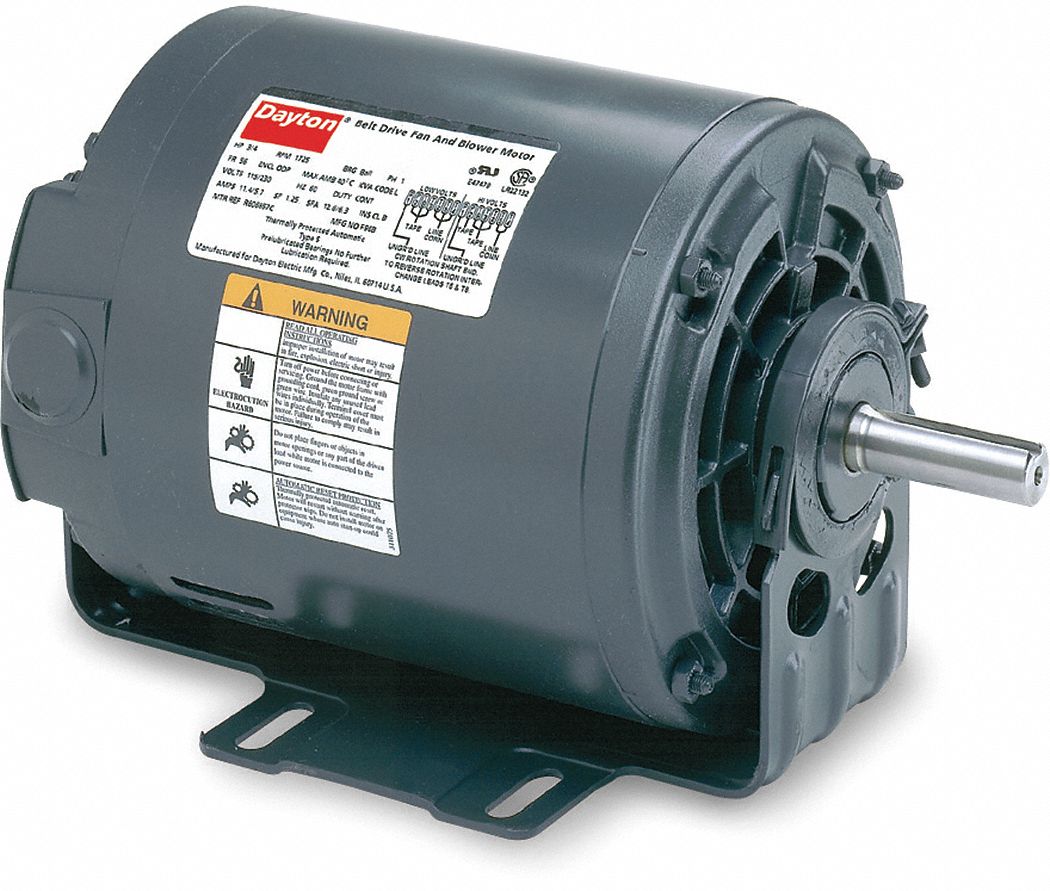

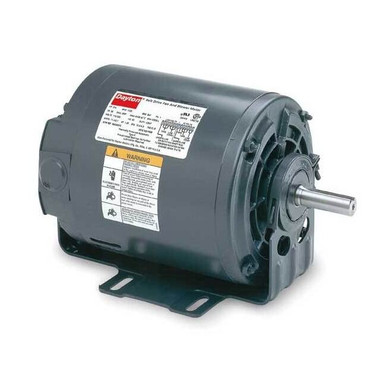

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3, 1/6 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, 6.1/3.8 Full Load Amps, 56Z Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in

Featuring a quick-connect terminal board, this motor is for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required.<br /><br /> Item: Belt Drive Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Belt Drive Fan/Blower<br /> Motor Design: Split-Phase<br /> HP: 1/3, 1/6<br /> No. of Speeds: 2<br /> Nameplate RPM: 1725/1140<br /> Voltage: 115<br /> Frame: 56Z<br /> Motor Enclosure Design: Open Dripproof<br /> Motor Mounting Type: Cradle Base<br /> Motor Mounting Position: All Angle<br /> Hz: 60<br /> Full Load Amps: 6.1/3.8<br /> Motor Thermal Protection: Auto<br /> Ins. Class: B<br /> Motor Service Factor: 1.35<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Motor Shaft Design: Flat<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-1/2"<br /> Length Less Shaft: 9-5/8"<br /> Body Dia.: 6-7/16"<br /> Resilient Ring Dia.: 2-1/2"<br /> Ring to Ring Center: 9-1/8"<br /> Duty: Continuous<br /> RPM Range: 1701-1800<br /> Phase: 1<br /> Standards: UL Recognized (E37403), CSA Certified (247478), CE<br /> Includes: 1/2 to 5/8" Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4" Shaft Key<br />
