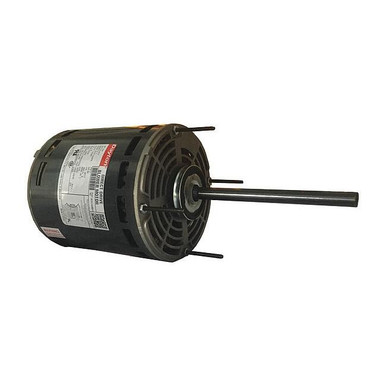

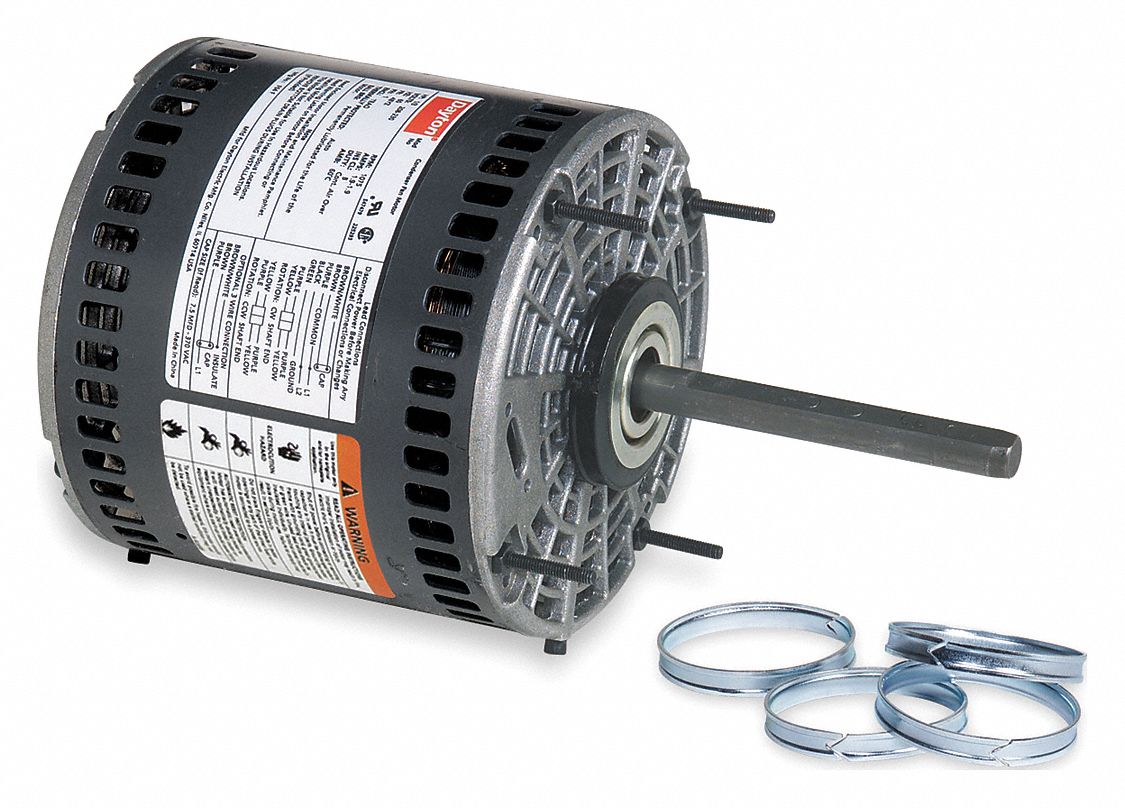

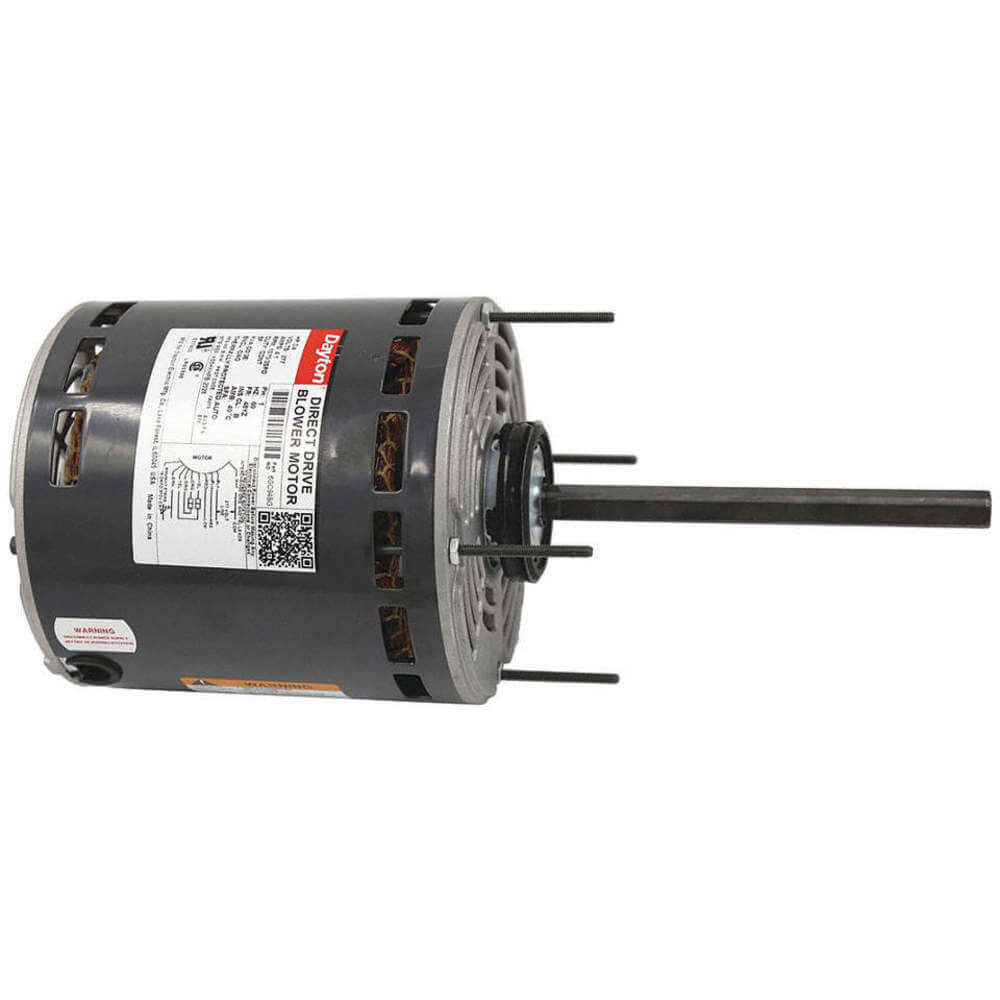

Direct Drive Blower MotorPermanent Split CapacitorOpen Air-Over3/4 HP1075 RPMNumber of Speeds 3277 VoltsFull Load Amps 3.148YZ NEMA FrameBody Dia 5 5/8 InService Factor 1.0060 HzRing MountingAll-Angle Sleeve BearingsThermal Protection AutoCW/CCW RotationShaft Diameter 1/2 InShaft Length 6 InCapacitor Required 2GE81Ambient 40 CInsulation Class BRing to Ring Center 6 1/2 InLength Less Shaft 6 15/16 In

Designed for furnace blowers and other shaft-mounted fan and blower applications<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 3/4<br /> Nameplate RPM: 1075<br /> Voltage: 277<br /> Full Load Amps: 4.1<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48YZ<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 3<br /> Motor Mounting Type: Ring/Stud<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Sleeve<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Nominal Efficiency: 68.70%<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 6-1/2"<br /> Overall Length: 13-3/16"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 6"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: 2MDV9<br /> Resilient Ring Dia.: 2-1/4"<br /> Ring to Ring Center: 6-15/16"<br /> Stud Size: #8-32<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1001-1100<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Application: Blowers, Fans and Air Circulators<br /> Includes: Split Rings to Increase Ring Diameter to 2 1/2"
