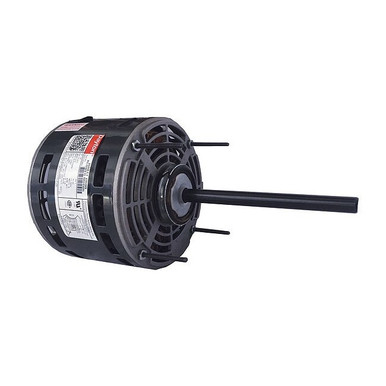

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 277V AC, Full Load Amps 0.90, 48YZ Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle

Designed for furnace blowers and other shaft-mounted fan and blower applications<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 1/6<br /> Nameplate RPM: 1075<br /> Voltage: 277<br /> Full Load Amps: 0.9<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48YZ<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 3<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Sleeve<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Nominal Efficiency: 54.60%<br /> Body Dia.: 5-5/8"<br /> Length Less Shaft: 5-3/16"<br /> Overall Length: 11-3/16"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 6"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: 2MDV3<br /> Resilient Ring Dia.: 2-1/4"<br /> Ring to Ring Center: 4-3/4"<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1001-1100<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Application: Direct-drive Furnace Blowers, Unit Heaters, Air Conditioners and many other Shaft-mounted Fan and Blower Uses<br /> Includes: Split Rings to Increase Ring Diameter to 2 1/2"<br />
