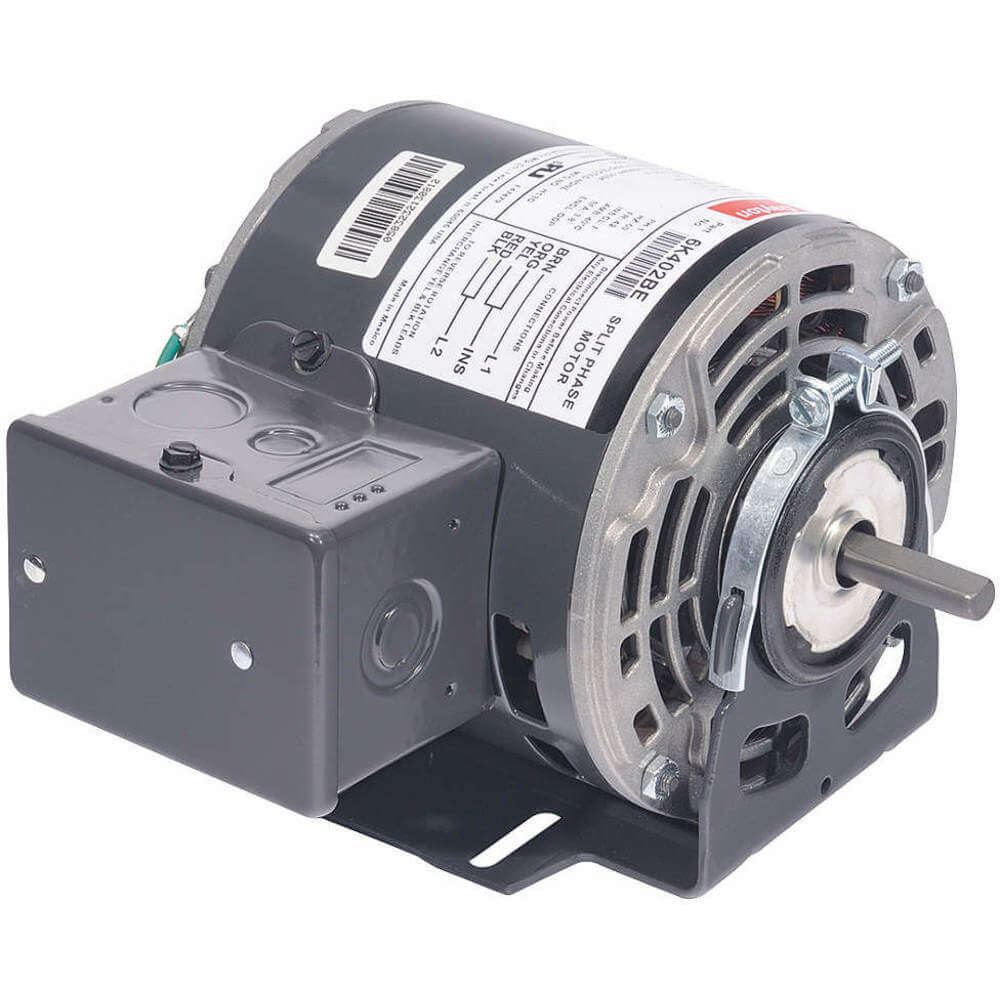

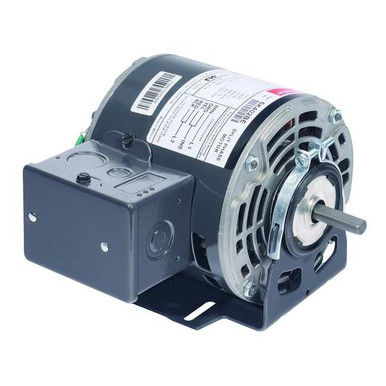

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/12 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.7, 42 Frame, Hz 60, Motor Service Factor 1.4, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel

Split-Phase Open Dripproof Base- and Cradle-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Insulation: Class BOpen dripproof motors are for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. NEMA 42 frame is supplied with a relay instead of a centrifugal switch; relay mounting clip is included.UL Recognized and CSA Certified.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Split-Phase<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1/12<br /> Nameplate RPM: 1725<br /> Frame: 42<br /> Voltage: 115<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 3.7<br /> No. of Speeds: 1<br /> Motor Mounting Type: Cradle Base<br /> Motor Thermal Protection: None<br /> Ins. Class: F<br /> Motor Service Factor: 1.40<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 3/8"<br /> Shaft Length: 1-1/8"<br /> Length Less Shaft: 5-10/16"<br /> Overall Length: 6-7/8"<br /> Motor Shaft Design: Flat<br /> RPM Range: 1701-1800<br /> Standards: UL (E47479), CSA (156060)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 32.8%<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 1701-1800
