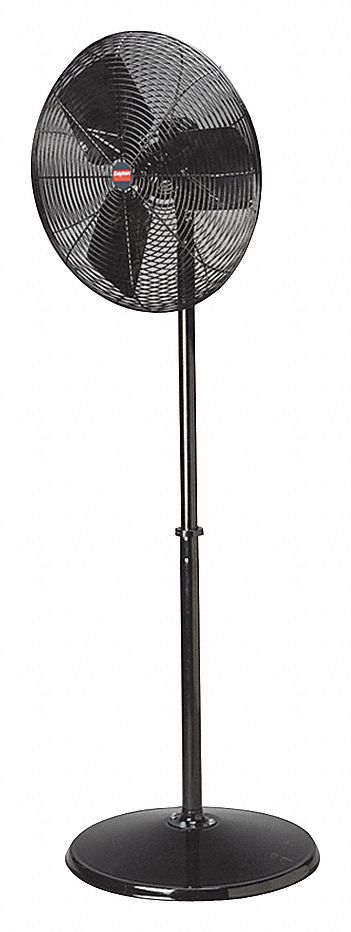

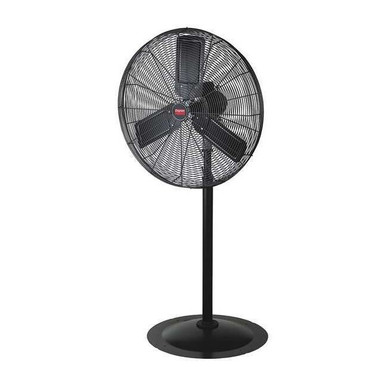

This commercial air circulator is designed for moving air and cooling in clean, dry environments. It offers a high volume of air circulation at low sound levels for commercial applications including schools, greenhouses, and sporting events. It also offers a permanently lubricated motor with automatic reset thermal protection, and a stamped aluminum, 3-blade propeller and circulator head with locking tilt adjustment.<br /><br /> Item: Air Circulator<br /> Blade Dia.: 24"<br /> Mobile/Stationary: Stationary<br /> Oscillating: Yes<br /> Speeds: 2<br /> Voltage: 115<br /> Phase: 1<br /> CFM High: 6400<br /> CFM Low: 3510<br /> Air Velocity (FPM) @ 20 Ft.: 440/285<br /> Motor HP: 1/4<br /> Motor RPM: 1100/850<br /> Operating Amps: 2.8/2.1<br /> Fan Mounting Location: Pedestal<br /> Fan Accessory Style: Standard<br /> Fan RPM: 1100/850<br /> Environmental Applications: Commercial<br /> Assembled: No<br /> CFM/Watt: 21.3<br /> Air Velocity (FPM) @ 10 Ft.: 800/480<br /> Air Velocity (FPM) @ 40 Ft: 150/100<br /> Sound Level: 74dBA<br /> Max. Ambient Temp.: 104 Degrees F<br /> Hz: 60<br /> Watts: 300/220<br /> Motor Type: Permanent Split Capacitor<br /> Drive Type: Direct<br /> Motor Enclosure: Totally Enclosed Air-Over<br /> Motor Insulation: Class B<br /> Thermal Protection: Auto<br /> Bearing Type: Ball<br /> Height: Adj 58-3/4 to 74-3/4"<br /> Width: 27-1/4"<br /> Max. Depth: 27-1/4"<br /> Cord Length: 10 ft.<br /> Number of Blades: 3<br /> Blade Material: Aluminum<br /> Shaft Dia.: 1/2"<br /> Housing Material: Steel<br /> Guard Material: Steel<br /> Wire Guard Finish: Gloss Black Powder Coated<br /> Application: Spot Cooling and People Cooling<br /> Standards: UL/cUL<br /> Includes: Pedestal, Column and Mounting Hardware
