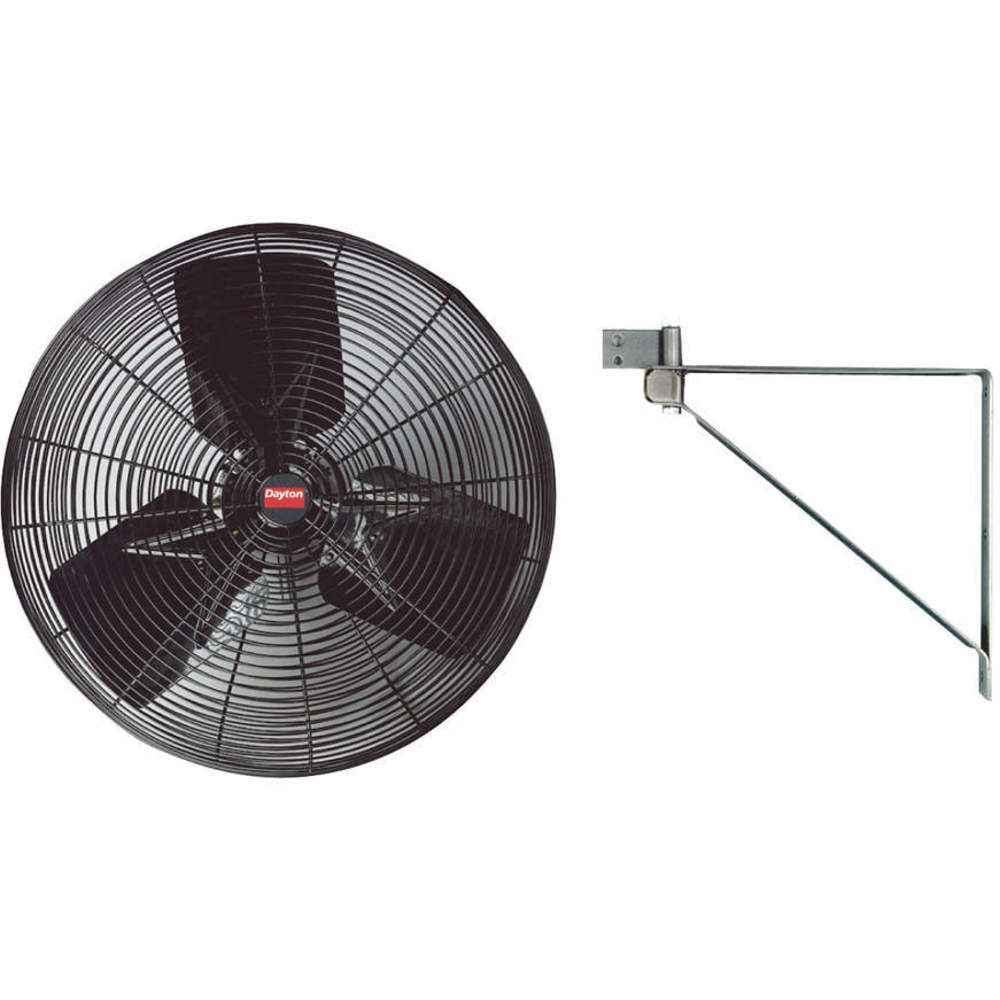

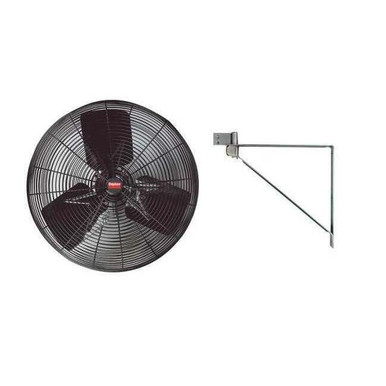

Light-Duty Industrial Fan 18" Non-Oscillating, 115VAC, 2460/3480 CFM

This commercial air circulator is designed for moving air and cooling in clean, dry environments. It offers a high volume of air circulation at low sound levels for commercial applications including schools, greenhouses, and sporting events. It also offers a permanently lubricated motor with automatic reset thermal protection, and a stamped aluminum, 3-blade propeller and circulator head with locking tilt adjustment.<br /><br /> Item: Air Circulator<br /> Blade Dia.: 18"<br /> Mobile/Stationary: Stationary<br /> Oscillating: No<br /> Speeds: 2<br /> Voltage: 115<br /> Phase: 1<br /> CFM High: 3480<br /> CFM Low: 2460<br /> Air Velocity (FPM) @ 20 Ft.: 330/273<br /> Motor HP: 1/5<br /> Motor RPM: 1120/1030<br /> Operating Amps: 1.88/1.36<br /> Fan Mounting Location: Wall<br /> Fan Accessory Style: Standard<br /> Fan RPM: 1120/1030<br /> Environmental Applications: Commercial<br /> Assembled: No<br /> CFM/Watt: 26.2/25.6<br /> Air Velocity (FPM) @ 10 Ft.: 480/420<br /> Air Velocity (FPM) @ 40 Ft: 120/80<br /> Air Velocity (FPM) @ 60 Ft.: 24/0<br /> Sound Level: 59dBA<br /> Max. Ambient Temp.: 104 Degrees F<br /> Hz: 60<br /> Watts: 225/160<br /> Motor Type: Permanent Split Capacitor<br /> Drive Type: Direct<br /> Motor Enclosure: Open Air-Over<br /> Motor Insulation: Class B<br /> Thermal Protection: Auto<br /> Bearing Type: Ball<br /> Height: 28"<br /> Width: 21-5/8"<br /> Max. Depth: 23"<br /> Cord Length: 9 ft.<br /> Number of Blades: 3<br /> Blade Material: Aluminum<br /> Shaft Dia.: 12mm<br /> Housing Material: Steel<br /> Guard Material: Steel<br /> Wire Guard Finish: Gloss Black Powder Coated<br /> Application: Spot Cooling and People Cooling<br /> Standards: cULus Listed E19455<br /> Includes: Wall Bracket and Secondary Safety Support Cable<br />
