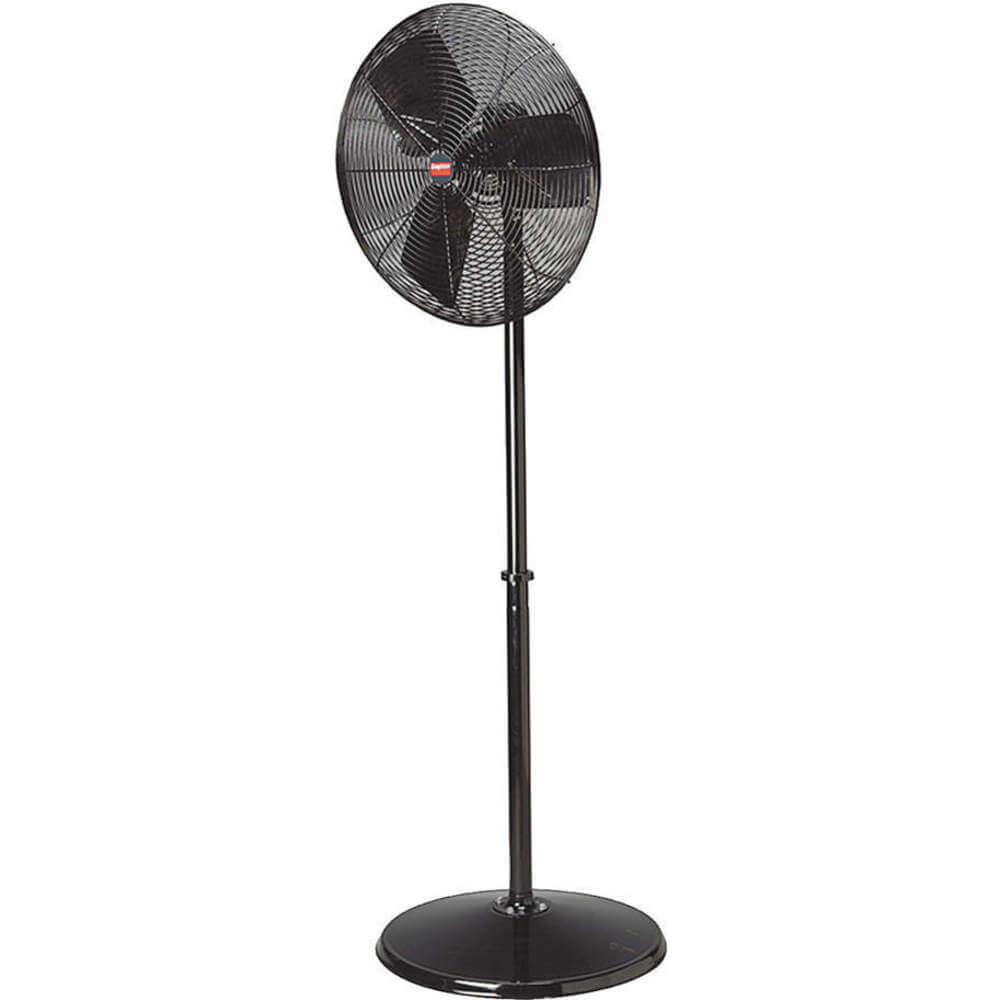

Light-Duty Industrial Fan, Blade Dia. 18 in, Stationary, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 3480, CFM Low 2460, Air Velocity @ 20 Ft. 330/273 fpm, Motor HP 1/5 hp, Motor RPM 1100/950, Operating Amps 1.8/1.4, Fan Mounting Location Pedestal, Fan Accessory Style Standard, Fan RPM 1100/950, Sound Level 59 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 200/160, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 65 in, Width 27 in

This commercial air circulator is designed for moving air and cooling in clean, dry environments. It offers a high volume of air circulation at low sound levels for commercial applications including schools, greenhouses, and sporting events. It also offers a permanently lubricated motor with automatic reset thermal protection, and a stamped aluminum, 3-blade propeller and circulator head with locking tilt adjustment.<br /><br /> Item: Air Circulator<br /> Blade Dia.: 18"<br /> Mobile/Stationary: Stationary<br /> Oscillating: No<br /> Speeds: 2<br /> Voltage: 115<br /> Phase: 1<br /> CFM High: 3480<br /> CFM Low: 2460<br /> Air Velocity (FPM) @ 20 Ft.: 330/273<br /> Motor HP: 1/5<br /> Motor RPM: 1120/1030<br /> Operating Amps: 1.88/1.36<br /> Fan Mounting Location: Pedestal<br /> Fan Accessory Style: Standard<br /> Fan RPM: 1120/1030<br /> Environmental Applications: Commercial<br /> Assembled: No<br /> CFM/Watt: 26.2/25.6<br /> Air Velocity (FPM) @ 10 Ft.: 480/420<br /> Air Velocity (FPM) @ 40 Ft: 120/80<br /> Air Velocity (FPM) @ 60 Ft.: 24/0<br /> Sound Level: 59dBA<br /> Max. Ambient Temp.: 104 Degrees F<br /> Hz: 60<br /> Watts: 223/160<br /> Motor Type: Permanent Split Capacitor<br /> Drive Type: Direct<br /> Motor Enclosure: Open Air-Over<br /> Motor Insulation: Class B<br /> Thermal Protection: Auto<br /> Bearing Type: Ball<br /> Height: Adj 53 to 65"<br /> Width: 21-5/8"<br /> Max. Depth: 21-5/8"<br /> Cord Length: 9 ft.<br /> Number of Blades: 3<br /> Blade Material: Aluminum<br /> Shaft Dia.: 12mm<br /> Housing Material: Steel<br /> Guard Material: Steel<br /> Wire Guard Finish: Gloss Black Powder Coated<br /> Application: Spot Cooling and People Cooling<br /> Standards: UL/cUL<br /> Includes: Pedestal, Column and Mounting Hardware<br />
