DAYTON . 5YZ79

Open Power Relay, Coil Voltage 24V DC, Contact Form SPST-NO, Electrical Connection Screw Clamp, Number of Pins 4, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.5 in, Body Height 2.3 in, Body Width 2.5 in, Contact Material Silver Cadmium Oxide, For Use With Air Handling, Elevators, HVAC Equipment, Machine Tools

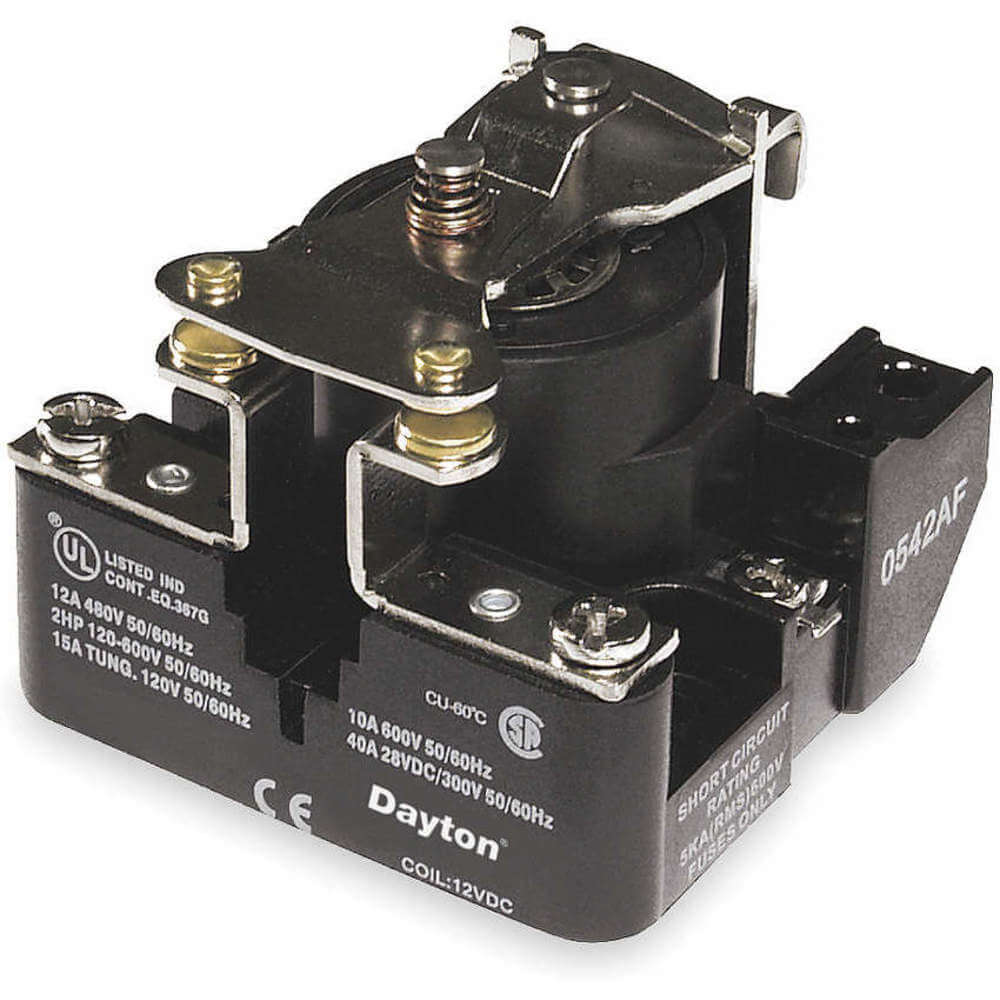

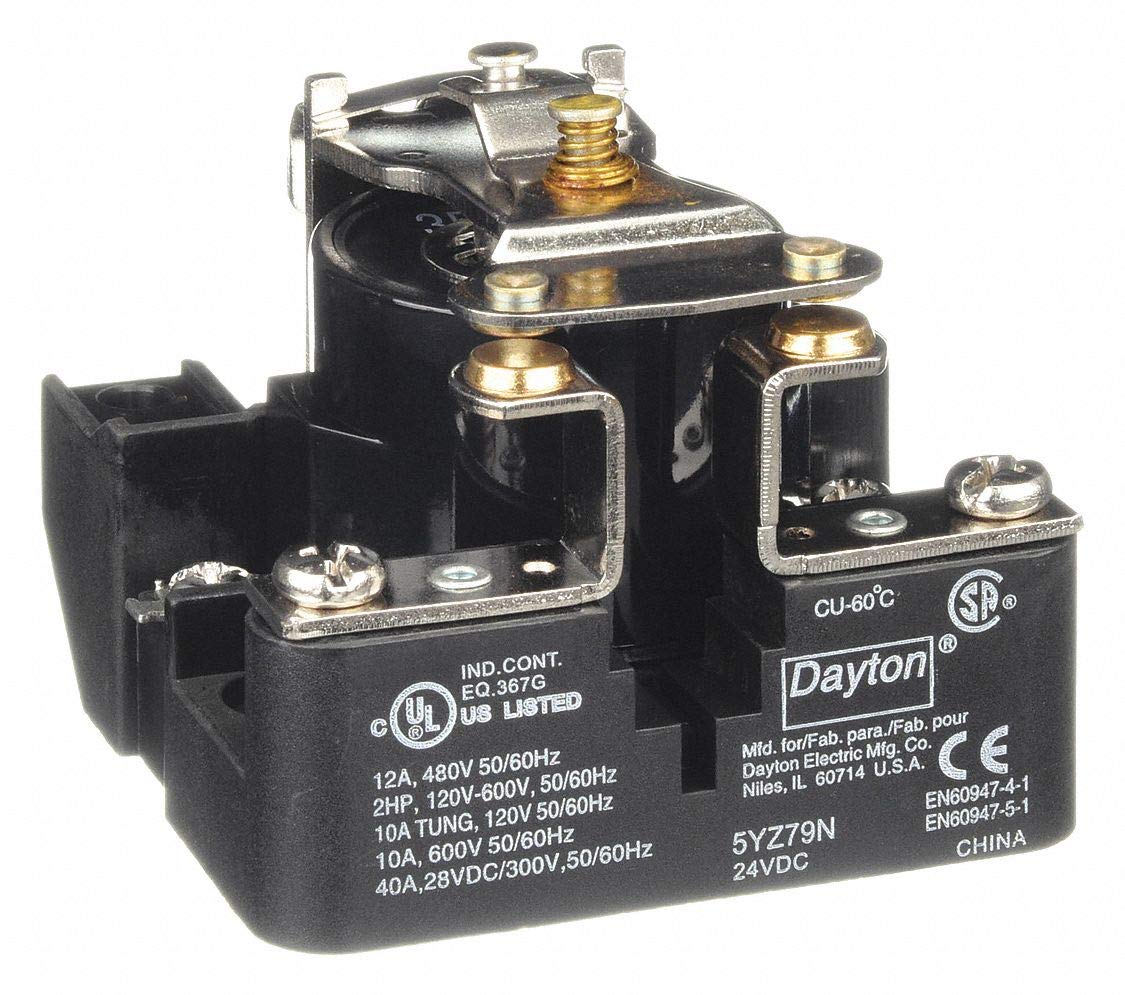

The Dayton open power relay is used for switching motor loads in applications such as elevators, machine tools, air handling, and HVAC equipment. Silver alloy, self-wiping contacts. Molded thermoset plastic base. Minimum operating voltage for AC relays is 85% of nominal voltage. 0.75 power factor. UL Listed, CSA Certified, and CE Certified.<br /><br /> Item - Relay: Open Power Relay<br /> Coil Volts: 24VDC<br /> AC Contact Rating - Relay: 40A @ 300V<br /> DC Contact Rating - Relay: 40A @ 28V<br /> Number of Pins - Relay: 4<br /> Contact Form - Relay: SPST-NO<br /> Mounting - Relay: Surface<br /> Power Consumption - Relay: 4.0W<br /> Contact Material: Silver Cadmium Oxide<br /> Electrical Connection - Power Relay: Screw<br /> Body Height - Relay: 2.30"<br /> Body Width - Relay: 2.50"<br /> Body Depth - Relay: 2.50"<br /> Overall Height - Relay: 2.30"<br /> HP @ 120V: 2<br /> HP @ 240V: 2<br /> Standards: E40944<br />
