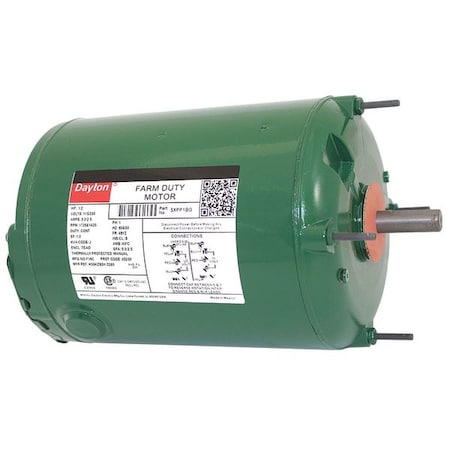

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.<br /><br /> Item - Farm Duty Motors: Agricultural Fan Motor<br /> Motor Application: Farm Duty<br /> Motor Sub Application: Hatchery/Setter Fan<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Totally Enclosed Air-Over<br /> HP: 1/2<br /> Nameplate RPM: 1725/1425<br /> Frame: 48YZ<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 115/230<br /> Full Load Amps: 5.0/2.5<br /> Phase: 1<br /> Hz: 60/50<br /> Motor Mounting Type: Band/Stud<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Frame Material: Rolled Steel<br /> Finish: Farm Duty Green<br /> Motor Thermal Protection: Manual<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temperature: 40 Degrees C<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 1-1/2"<br /> Motor Shaft Design: Flat<br /> Length Less Shaft: 7-15/16"<br /> Overall Length: 9-7/16"<br /> Ins. Class: B<br /> Capacitor Required: Yes<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Nominal Efficiency: 73.5%<br /> Includes: Slinger, Mounting Nuts<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Item: Agricultural Fan Motor
