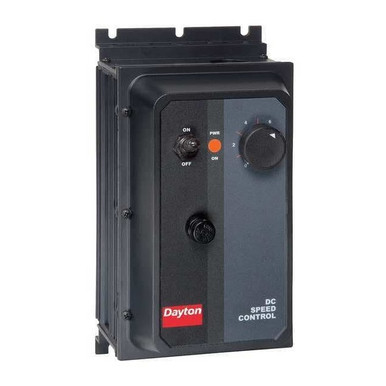

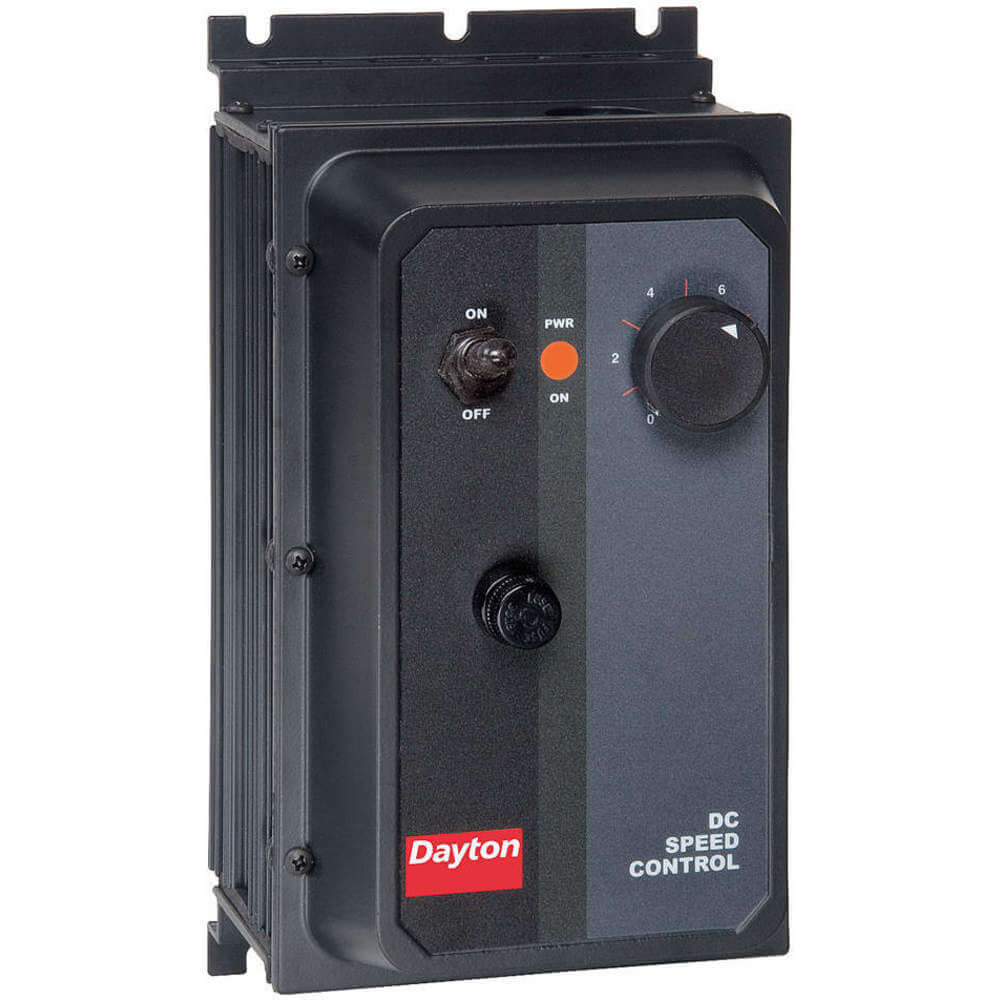

DC Speed Control, DC Speed Control SCR, NEMA 4X, Lower Voltage Motor Output Power 1/8 to 1 hp, AC Input Voltage 120/240V AC, Voltage Output 0 to 90/180V DC, Speed Range 50:1, Rotation Single Direction, External Switches ON/OFF

Dayton SCR adjustable speed DC motor control is designed for applications requiring constant (or diminishing) torque. It is designed to operate ONLY one permanent magnet or shunt wound DC motor. Control features include adjustable minimum and maximum speed limits, tachometer feedback, and MOV transient and surge protection.<br /><br /> Item: DC Speed Control<br /> Enclosure: NEMA 4/12<br /> Max. Amps: 10<br /> Voltage Output: 0 to 90/180VDC<br /> Speed Range: 50:1<br /> External Switches: ON/OFF<br /> AC Input Voltage: 120/240VAC<br /> DC Speed Control: SCR<br /> HP @ Lower Volts: 1/8 to 1<br /> HP @ Higher Volts: 1/4 to 2<br /> Linear Acceleration: Fixed 1 to 3 sec.<br /> Linear Deceleration: Fixed 0.5 sec.<br /> Current/Torque Limit: Adjustable<br /> Speed Regulation: +/-1% of Motor Base Speed<br /> Shunt Wound Volts: 100/200VDC<br /> Accepts Tach Feedback: Yes<br /> Dynamic Braking: No<br /> Power On Light: Yes<br /> IR Compensation: Adjustable<br /> Mount Type: Wall<br /> Height: 9.5"<br /> Depth: 5.5"<br /> Width: 5"<br /> Operating Temp.: -10 Degrees to 45 Degrees C<br /> For Use With: For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Dimishg Torques<br /> Standards: cULus Listed<br /> Includes: Run/Stop Switch, Built-in Transient and Surge Suppression<br />
