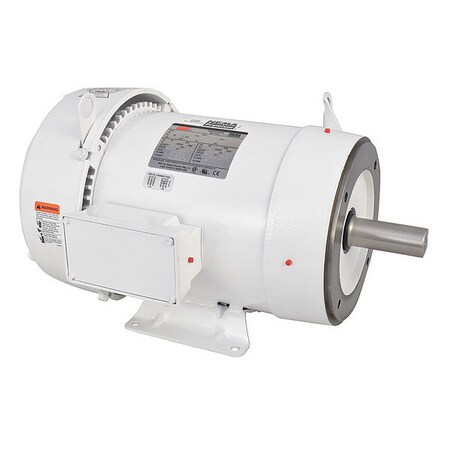

Washdown Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,765, Voltage 230/460V AC, Full Load Amps 18.2/9.1, 213TC Frame, 60/50 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel

Dayton . 5XAV0BH

Gallery

Attributes

Brand name, Manufacturer name, BrandDayton
ManufacturerDayton DAYTON
CategoryId, CategoryIdL36485
CategoryIdL138
CategoryIdL29908
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3DC Motors
CategoryL4DC Washdown Motors
DimensionUnitinch
GraingerSku5XAV0
UPC190735355626
UnitOfMeasureEA
Voltage230/460V AC 230.0
Weight170 10.62
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginMX
height19
jsonUrlData924526ffbdad25e5923b
length16.5
moq, multiple, tierMinQty1, NumberOfItems1
MPN, Model, ModelNumber, Model_number, PartNumber, Part_number5XAV0BH
perItemShipping150.00
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG1938833
tierPrice12860.99
urlhttps://www.zoro.com/dayton-washdown-mtr-3-ph-tefc-7-12-hp-1765-rpm-5xav0bh/i/G1938833/
width23
Shaft Length3 1/8 in
Length Less Shaft16 1/4 in
Shaft Dia1 3/8 in
Body Dia9.6 in
Overall Length18 3/4 in
ItemWashdown Motor
Motor Design3-Phase
PhaseThree
HP7 1/2
RPM Range1,701-1,800
Frame213TC
Motor Frame MaterialEpoxy Coated Rolled Steel
Motor Thermal ProtectionNone
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Shaft RotationCW/CCW
Conduit BoxCast Aluminum with Buna-N Gasketed Cover
Motor Mounting TypeFace/Base
ApplicationHigh Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Shaft Material303 Stainless Steel
StandardsCSA Certified (258525), UL Recognized (E47479), USDA Approved
Drain Plugs(1) Shaft End, (1) Lead End, (2) In Conduit Box
EndshieldsCast Aluminum
Ins ClassF
ASIN, AsinB07HCLYL55
ClassificationId6372405011
DisplayNameFan Motors
Height, Width450 75
Horsepower7.5
Identifier7430988191576
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleWashdown Mtr 3 Ph TEFC 7-1/2 HP 1765 RPM
Item_type_keywordelectric-fan-motors
Item_weight10.62
Label, Publisher, StudioDAYTON
Linkhttps://m.media-amazon.com/images/I/31caDFPQZWL._SL75_.jpg https://m.media-amazon.com/images/I/31caDFPQZWL.jpg
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductTypeELECTRIC_MOTOR
ProductTypeNameELECTRIC_MOTOR MECHANICAL_FASTENERS
Product_site_launch_date2019-08-04T10:28:21.467Z
SizeOne Size
Supplier_declared_dg_hz_regulationunknown
Typeean
URLhttps://m.media-amazon.com/images/I/31caDFPQZWL._SL75_.jpg
Unithorsepower pounds volts
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1938833111 @ $2860.99
AmazonTPB07HCLYL55111 @ $1896.32
sustainablesupply.comC27761421Add to Cart11 @ $3612.84
grainger.caWWG5XAV0111 @ $3625.47
