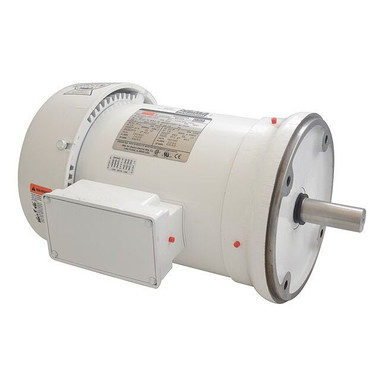

This motor was designed to be used in the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.<br /><br /> Item: Washdown Motor<br /> Motor Application: Washdown<br /> Motor Design: 3-Phase<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 3<br /> Nameplate RPM: 1765<br /> Frame: 182TC<br /> NEMA Design: B<br /> Motor Shaft Rotation: CW/CCW<br /> Voltage: 230/460<br /> Full Load Amps: 7.6/3.8<br /> Phase: 3<br /> Hz: 60/50<br /> Motor Mounting Position: All Angle<br /> Motor Mounting Type: Face<br /> Motor Bearings: Ball<br /> Motor Frame Material: Epoxy Coated Rolled Steel<br /> Motor Thermal Protection: None<br /> Motor Service Factor: 1.15<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 1-1/8"<br /> Shaft Length: 2-5/8"<br /> Motor Shaft Design: Keyed<br /> Body Dia.: 9-1/8"<br /> Length Less Shaft: 14-1/8"<br /> Overall Length: 16-3/4"<br /> Ins. Class: F<br /> RPM Range: 1701-1800<br /> Duty: Continuous<br /> Shaft Material: 303 Stainless Steel<br /> Conduit Box: Cast Aluminum with Buna-N Gasketed Cover<br /> Drain Plugs: (4) Shaft End, (4) Lead End, (2) In Conduit Box<br /> Endshields: Cast Aluminum<br /> Motor Efficiency Group: NEMA Premium Efficient<br /> Nominal Efficiency: 89.5%<br /> CC Number: CC030A<br /> Application: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns<br /> Standards: UL Recognized (E47479), CSA Certified (258525), USDA Approved

Washdown Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,765, Voltage 230/460V AC, Full Load Amps 7.6/3.8, 182TC Frame, 60/50 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel
